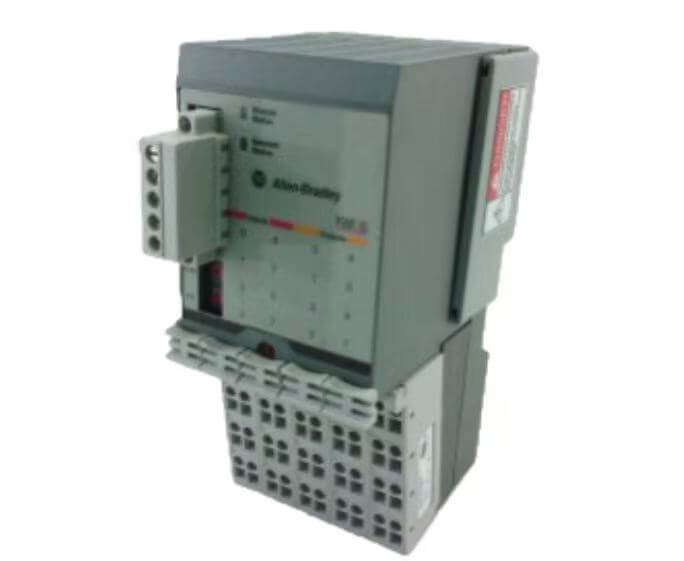

This digital I/O module runs on 24V DC and is purpose-built for multi-voltage isolation and relay control tasks. It features a compact 8-input/8-output dry contact design that saves space while remaining dependable, streamlining both installation and maintenance compared to traditional discrete setups. The Allen Bradley 1734D-IA8XOW8, validated by Hanyite Automation Technology, is in stock with authorized suppliers, supporting reliable signal transmission for automated lines.
The front panel has LEDs for every input channel, so you can see right away if they’re on or off. When relay contacts close, the output LEDs also light up in real time.
Spring-clamp, detachable terminals make wiring on-site a lot simpler, and clearly marked line numbers help you avoid mistakes.
The module snaps onto the base quickly with a mechanical latch, and integrated jumpers on the side let you adjust hardware settings on your own.
The module integrates 8 isolated digital inputs and 8 relay outputs. The input side supports wide-range AC/DC signal acquisition. The output side adopts an independent normally open dry contact design. Allen Bradley 1734D-IA8XOW8 allows direct switching of different voltage-level load circuits. Electrical isolation is achieved between input channels and output channels. It has flexible logic control and signal level conversion capabilities. It meets the complex drive and signal aggregation requirements in the field.
The front of the module is equipped with independent status indicator lights for each channel to provide intuitive feedback on the input signal's on/off state.
The output channel is equipped with an action indicator light to present the closed state of the relay contact.
The terminal blocks adopt a detachable spring compression design to simplify on-site wiring operations.
The surface of the terminal block is printed with clear line numbers to reduce the probability of wiring errors.
The module has a mechanical latch at the bottom to achieve a quick and stable connection with the base.
Integrated jumpers on the side of the body facilitate the independent configuration of hardware parameters.
Valve interlock drive in process control systems. After the on-site sensors capture pressure or liquid level over-limit signals, they are input into the module. The output-side relays directly act to cut off the power supply of the actuator to complete the safety locking. It is suitable for emergency stop circuits that require strong power disconnection.
Centralized monitoring of multiple voltage-level equipment. The operating status signals of different voltage levels are uniformly input into the input channels for collection. The relay output contacts can separately drive AC contactors and DC solenoid valves. It solves the problems of signal mixing and multi-power isolation in the distribution cabinet.
Signal transfer and amplification of separate equipment. The weak logic level of PLC is converted into dry contact output. The contact signal is transmitted to the remote frequency converter terminal to achieve remote start-stop control. The Allen Bradley 1734D-IA8XOW8 effectively isolates the electrical interference between the controller and the strong power load.
