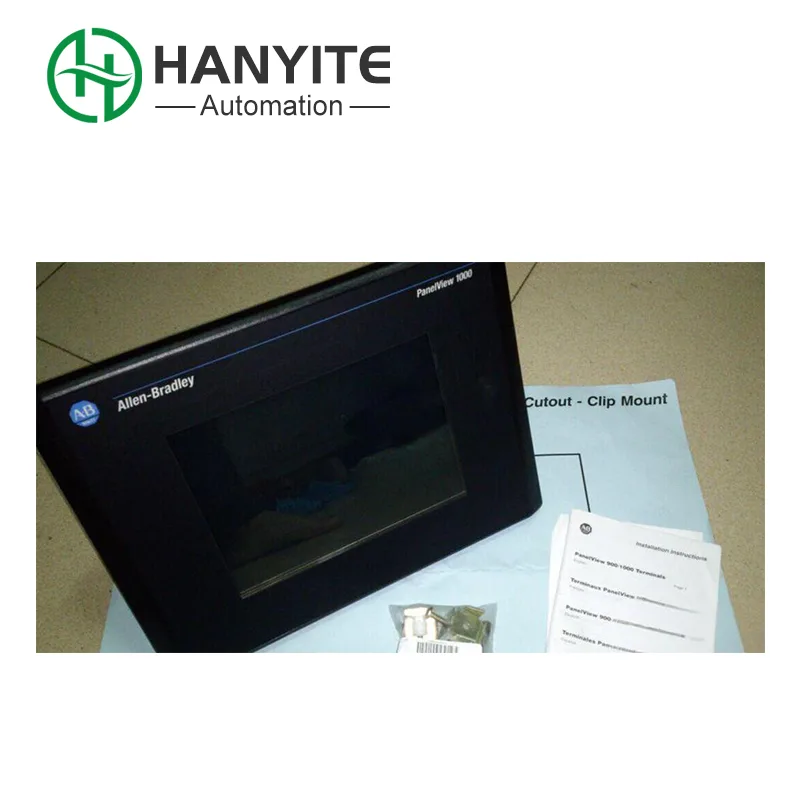

Allen Bradley 2711P-ST10B is a leading brand in the field of global industrial automation. Its touch screen products, with their outstanding performance and reliability, are widely used in various industrial automation systems. Whether it is complex production line monitoring, precise process control, or advanced robot control, the module can help enterprises achieve efficient and intelligent automated production with its accurate touch operation and clear display interface. Do you want to experience this outstanding industrial touchscreen? Welcome to Hanyite Automation. We not only have a sufficient inventory, but also offer the latest models for your selection, meeting all your needs for industrial automation equipment. Choosing Hanyite means choosing to develop in step with the world's leading automation technology!
The Allen Bradley 2711P-ST10B standard touchscreen operation interface terminal is usually equipped with multiple communication ports, such as EtherNet port, USB port and serial port, and supports a variety of industrial communication protocols, such as EtherNet/IP, DeviceNet, ControlNet, etc. So as to facilitate connection with programmable logic controllers (PLCS) and other devices. For configuration and programming, software such as FactoryTalk View Machine Edition (ME) or Studio 5000 Logix Designer is usually used. The terminal adopts a TFT active matrix color display screen and combines resistive or capacitive touch screen technology (depending on the model) to provide users with a clear and sensitive operation experience. It is usually equipped with a powerful processor, supporting complex graphic and animation displays, and has sufficient memory for storing applications, data and logs, thus ensuring the stable operation of industrial processes and the secure storage of data. Welcome to inquire. We will serve you wholeheartedly.
The AB 2711P-ST10B supports the development of the entire series of PanelBuilder32 software. The screen can display alarm lists, real-time trends, recipe downloads, and multi-language switching. Built-in clock calendar. After power failure, it can be maintained for 7 to 10 days by a supercapacitor. Support direct printing of alarms to serial port printers via the RS232 port. The program can be set with three-level password protection. The operator can only view but not modify the parameters.
|
Module |
Allen Bradley 2711P-ST10B |
|
Product Type |
10.4-inch Color Touchscreen HMI Terminal |
|
Display |
Type: 10.4-inch Color TFT Active Matrix LCD |
|
|
Resolution: 640 x 480 pixels (VGA) |
|
|
Display Area (W x H): 211 mm x 158 mm (8.31 in. x 6.22 in.) |
|
|
Backlight: CCFL (Cold Cathode Fluorescent Lamp) |
|
Input Method |
Type: Analog Resistive Touchscreen |
|
|
Actuation: Finger, gloved hand, or stylus |
|
Communication Ports |
Ethernet: 1 x 10/100 Mbps Ethernet/IP (RJ45) |
|
|
Serial: 1 x RS-232 (9-pin D-shell) |
|
|
USB: 2 x USB 2.0 Full-Speed (Type A) - For peripheral use |
|
|
USB: 1 x USB 2.0 Full-Speed (Type B) - For application transfer |
|
Processor |
400 MHz ARM9 Processor |
|
Memory |
RAM: 128 MB |
|
|
Non-Volatile Storage: 256 MB Flash |
|
Power Supply |
Voltage: 85-264 VAC, 47-63 Hz (auto-ranging) |
|
|
Power Consumption: 85 VA (typical) |
|
Operating Environment |
Temperature: 0 °C to 55 °C (32 °F to 131 °F) |
|
|
Relative Humidity: 5% to 95% (non-condensing) |
|
|
Shock: 30 G, operational (11 ms) |
|
|
Vibration: 2.5 G, operational (5-2000 Hz) |
|
Enclosure Rating |
Front Panel: NEMA Type 4X, 12, 13 |
|
|
Front Panel: IEC IP65, IP54 |
|
Dimensions (H × W × D) |
283 mm × 368 mm × 67 mm (11.14 in. × 14.49 in. × 2.64 in.) |
|
Panel Cutout (H × W) |
277 mm × 362 mm (10.91 in. × 14.25 in.) |
|
Weight |
Approx. 2.7 kg (5.95 lbs) |
|
Software Runtime |
FactoryTalk View Machine Edition (ME) |
|
Certifications |
CE, C-TICK, RCM, KC, UL Listed |
