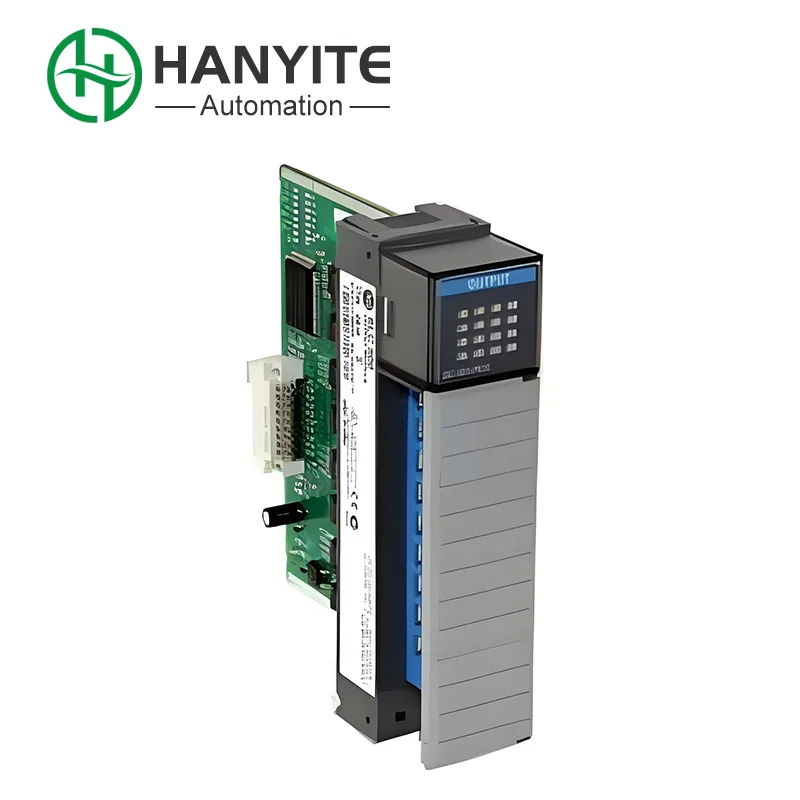

Allen Bradley 1746-OBP8

The Allen Bradley 1746-OBP8 module is the most powerful high-current output module in the SLC500 series, with a maximum single-point 5A and a total of 8 points capable of handling a load of over 30A. It is specifically designed for older SLC systems that need to directly drive large contactors, large solenoid valves, and brake coils. All Hanyite products are genuine and original, with reliable quality and excellent performance. We offer comprehensive after-sales service to ensure your worry-free use! Welcome to contact us.

Application

In the manufacturing and processing industry, Allen Bradley 1746-OBP8 can monitor and precisely control various production parameters in real time, such as temperature, pressure and flow rate, helping users optimize the production process, improve production efficiency and product quality. In power generation, transmission and distribution systems, it monitors parameters such as current and voltage. In building automation systems, modules control and monitor heating, ventilation and air conditioning (HVAC), lighting and other systems.

Notes

Ensure that the input type of the Allen Bradley 1746-OBP8 matches the output type of the field device.

Before wiring, be sure to turn off the power supply and make sure that the grounding protection is done.

Check the operating status of the module regularly to ensure that it is working properly.

FAQ

Q:What do the LED indicators mean?

A:The Allen Bradley 1746-OBP8 is equipped with LED indicators to display the module status and the output status of each channel. For example, a green LED usually indicates that the channel is working properly, while a red LED may indicate a fault. Please refer to the module manual for the specific meaning.

Q:What module does it replace?

A:According to Allen-Bradley's product updates, the 1746-OBP8 may be replaced by a newer module, such as the corresponding module in the ControlLogix series or the CompactLogix series. The specific replacement module needs to be determined according to the actual application requirements.

Q:How to connect to the SLC 500 PLC?

A:The 1746-OBP8 is connected to the SLC 500 PLC through the backplane (Chassis). Insert the module into the corresponding slot of the backplane, and communicate and transmit data through the connector on the backplane.
