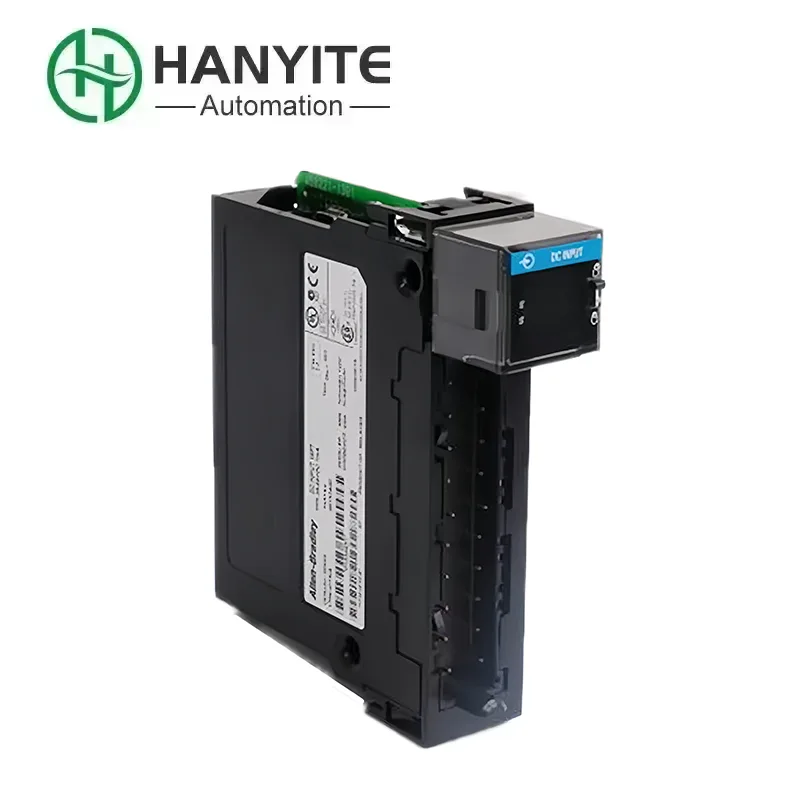

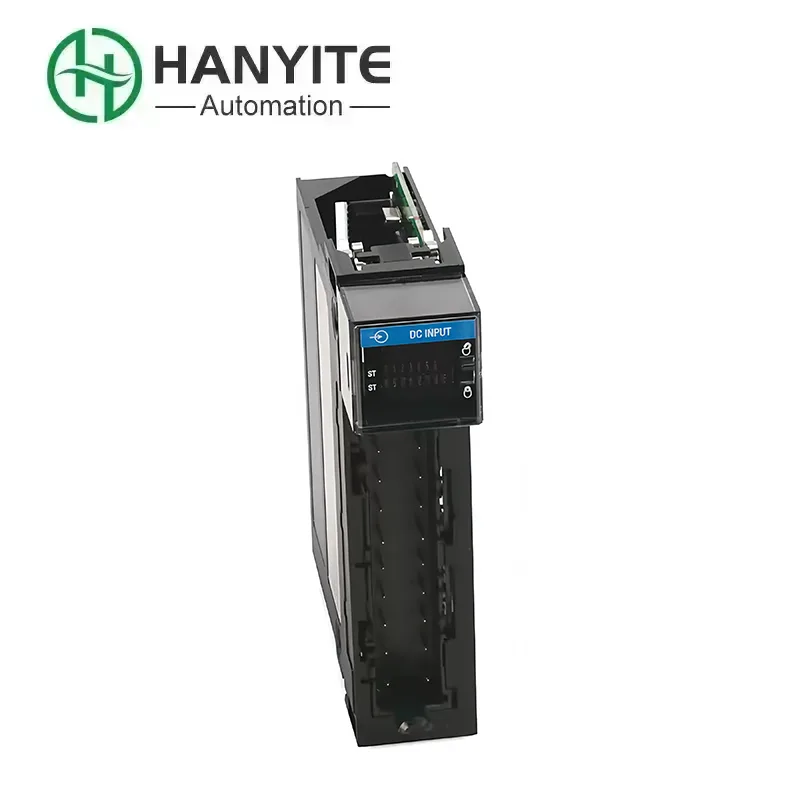

The Allen Bradley 1756-IC16 is a module in the ControlLogix system. It does not generate signals on its own. Its main function is to receive an instruction signal sent by the controller, then amplify it and convert it into 16 identical strong signals to drive 16 different devices. In simple terms, this is "one for sixteen". One signal can control multiple devices simultaneously. If your factory exactly needs such a thing and you plan to buy it, it is extremely important to find a reliable suppliers! When cooperating with us, you can rest assured. We guarantee that all our products are genuine original ones. We promise that for every fake product, you will receive ten times the compensation! The most crucial point is that we now have in stock! You can place an order at any time and we will deliver the goods immediately without delaying the start of your factory's operation.
|
Input end (ears): |
Allen Bradley 1756-IC16 has just one ear, specifically for listening to the commands from the PLC. When the PLC says "Do it!", it receives the command. |
|
Internal core (repeater): |
Inside it is like a super powerful repeater. As soon as it hears the command, it immediately "clicks" and duplicates 16 copies, and each copy is processed perfectly by it, ensuring that the signals do not interfere with each other. |
|
Output end (16 mouths): |
It has 16 mouths, each facing a device. It transmits the duplicated commands to those devices, turning the indicator lights on or activating the small relays. |
1. One for sixteen, one module can manage 16 points, which saves a lot of space. If you use ordinary modules, it would occupy several slots. This thing saves you a lot of space at once.
2. Each one operates independently and doesn't affect each other. This is its most remarkable feature. The 16 outputs are all "isolated". Even if one output circuit burns out or short circuits, the other 15 can still work properly, and the PLC remains safe and secure. It's extremely safe.
3. Allen Bradley 1756-IC16 has a laid-back personality. It can be connected in any way. It's very flexible. You can set in the software whether each output is "power supply" or "grounding". No matter what kind of equipment you have on site, it can be connected. The compatibility is extremely strong.
The Allen Bradley 1756-IC16 is the direct offspring of the ControlLogix family. Just insert it into any vacant slot on the rack.
It is also very easy to configure it using the Studio 5000 software on the computer. It's just like configuring an ordinary module - just a few clicks of the mouse and it's done. It seamlessly integrates into your automation system.
1. Save money and space. One module is equivalent to 16 regular modules. This directly saves the cost of purchasing several modules and also saves valuable space in the control cabinet. In large cabinets, every inch counts.
2. Wiring is simple and errors are few. You just need to pull a wire from the PLC to IC16, and then branch it to each device. The number of wires in the cabinet is reduced immediately. With fewer wires, the probability of connection errors and problems naturally decreases.
3. The system is more robust because it has isolation protection. If one point fails, it won't bring the entire system down. This greatly enhances the stability and security of the entire system.
