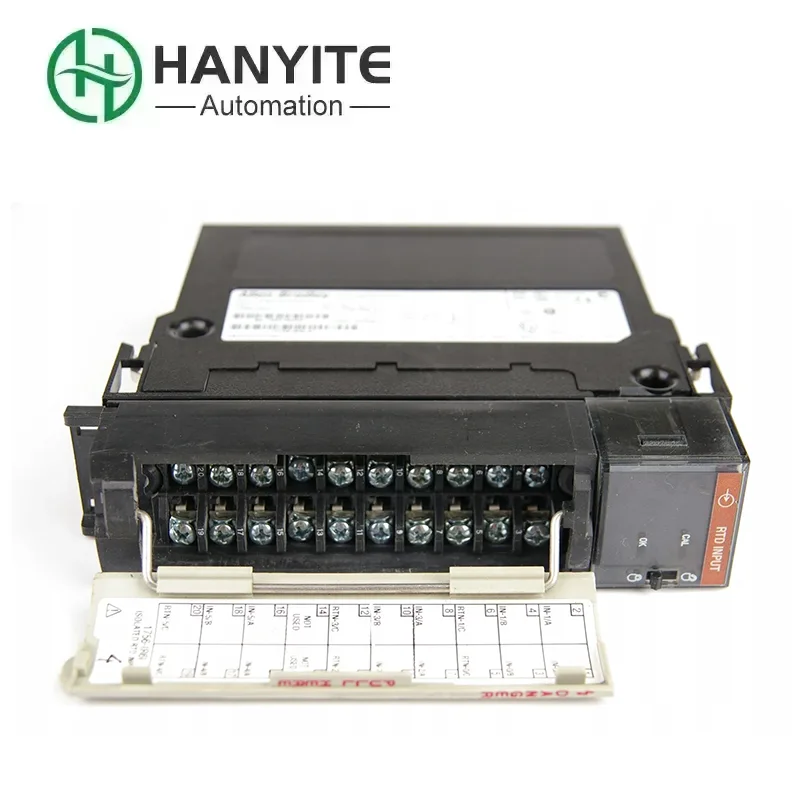

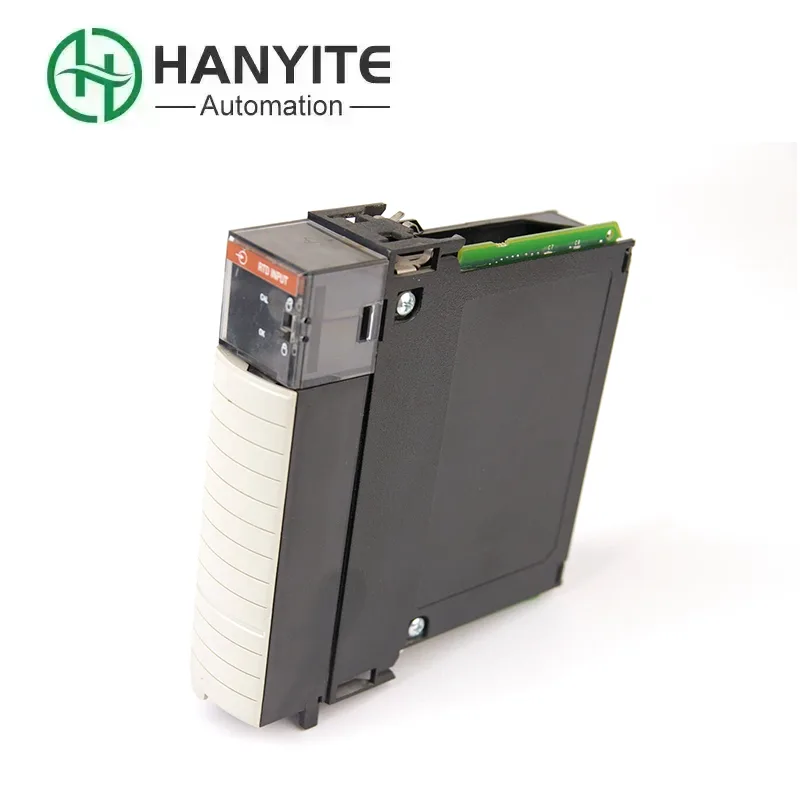

Allen Bradley 1756-IR6I

If you are looking for a high-precision analog input module for the ControlLogix system, then you really need to take a close look at Rockwell's Allen Bradley 1756-IR6I. It's like a "spy" in the system. If the digital modules are responsible for "on" and "off", then it is specifically responsible for "how much". Its job is to precisely measure those continuously changing things, such as temperature, pressure, and flow rate, and then translate them into numbers that the controller's brain can understand. It is the "eyes" and "ears" for achieving precise control. To meet your customized project requirements and ensure the absolute reliability of data collection, choosing the original and brand-new module is crucial. The good news is that we have the goods in stock now and can arrange it for you at any time. Don't let the shortage delay your project progress.

Core functions of the product

1. The Allen Bradley 1756-IR6I has 6 independent "ears" that can simultaneously receive signals from 6 sensors.

2. It is clear and quick in response. Its accuracy is extremely high, and it reacts very quickly, being able to inform the controller of the on-site situation in real time without causing any delays.

3. It comes with a "filter" and a "sentinel". You can set a "filter" for it to filter out the useless interference signals, making the readings more stable. You can also set a "warning line" for it, for example, if the temperature exceeds 90 degrees, it will immediately give an alarm.

4. Each "ear" is independently soundproofed, which is its most remarkable feature. Each channel is separated from each other to prevent the electricity from one area from affecting the other, ensuring that each data is clean and extremely accurate.

Addressing the pain points

1. When there is more electricity in the workshop, the measurement data is prone to fluctuate and become inaccurate. The "independent sound insulation" design of Allen Bradley 1756-IR6I is specifically designed to address this issue, ensuring pure data.

2. When doing delicate work, even a small mistake won't do. It has high precision and can ensure that the measured numbers are truly accurate, making control reliable.

3. It uses the most common "common language" (4-20mA signal) in the industrial field, so most sensors on the market can be directly plugged in without worrying about compatibility issues.

4. If the sensor's wire is broken or short-circuited, it can immediately detect and report the problem, eliminating the need for you to search the world with a multimeter, saving a lot of time.

Efficiency improvement

1. Because the measurement is accurate, the controller can control more precisely, resulting in stable product quality and a lower defect rate.

2. With built-in diagnostic function, it can directly point out any problems and repair them very quickly, thus reducing the machine downtime significantly.

3. One module manages 6 isolated channels, eliminating the need to purchase a bunch of external isolators. The electrical cabinet becomes cleaner and the cost is also reduced.

Product Flow Chart

On-site sensors (such as temperature transmitters, pressure sensors)

Current signal (4-20mA)

Allen Bradley 1756-IR6I

Digital data

ControlLogix controller

Perform precise control or data recording

Application of specific scenarios

1. When it comes to where it is used, there are many possibilities. In a chemical plant, it is responsible for monitoring the temperature of the reaction vessels and the pressure of the pipelines. This is a matter of safety and product quality.

2. In a food factory, it is in charge of ensuring that the sterilization temperature is appropriate and that the ingredients are added correctly, to guarantee that the food we eat is safe and hygienic. In a sewage treatment plant, it measures the depth of the water tanks and the amount of chemicals added, allowing the entire treatment process to be completed automatically.

3. In a pharmaceutical factory, the requirements are even higher. It must closely monitor the temperature and pressure data, without any deviation, to ensure that the drugs are qualified.

4. Even in large shopping malls or office buildings where we work, the air conditioning system's most comfortable and energy-efficient operation is also dependent on it for measurement and adjustment behind the scenes.
