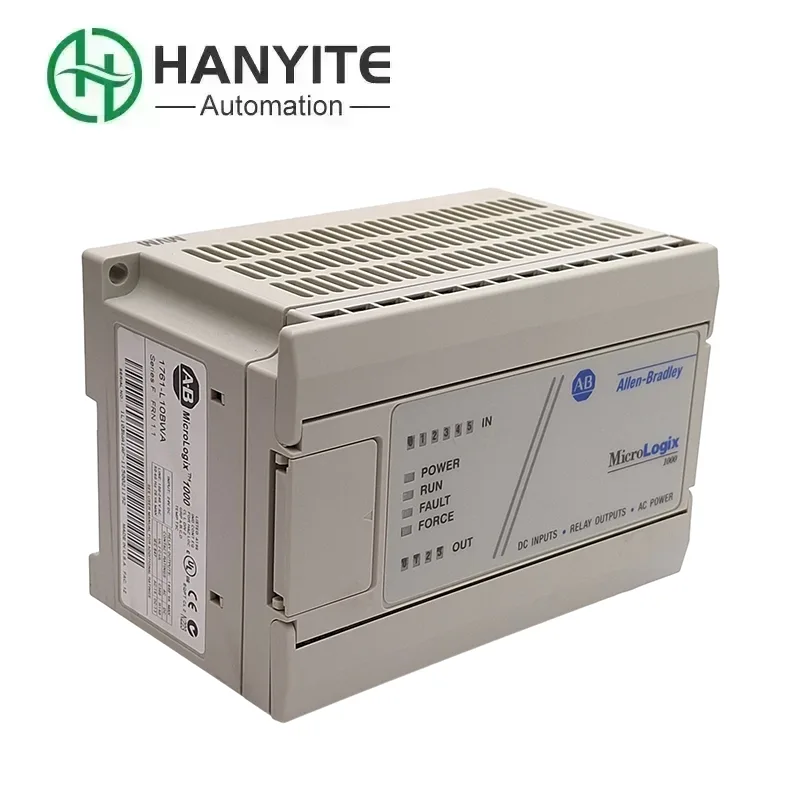

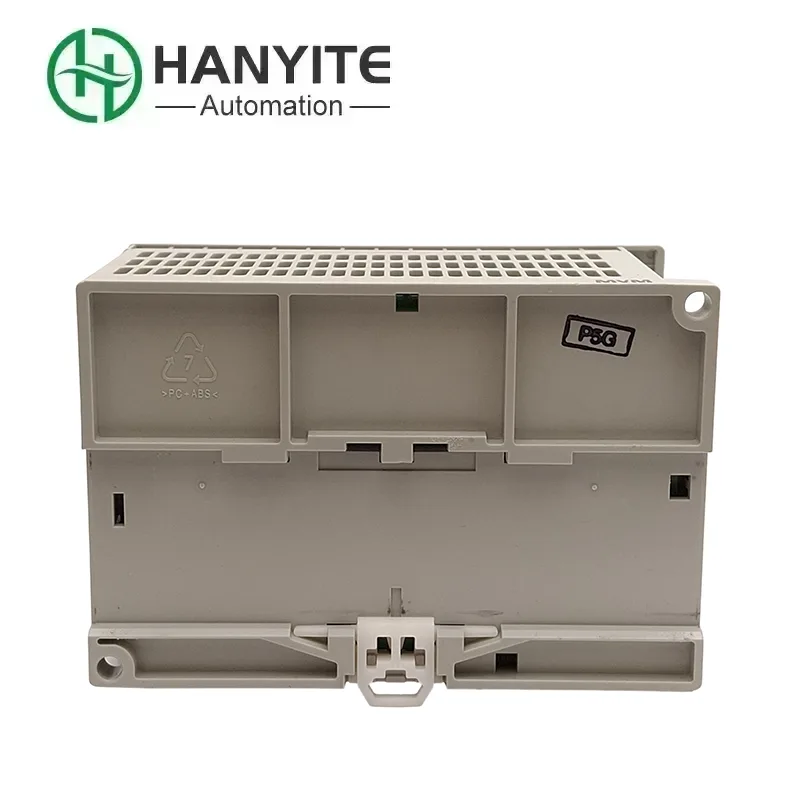

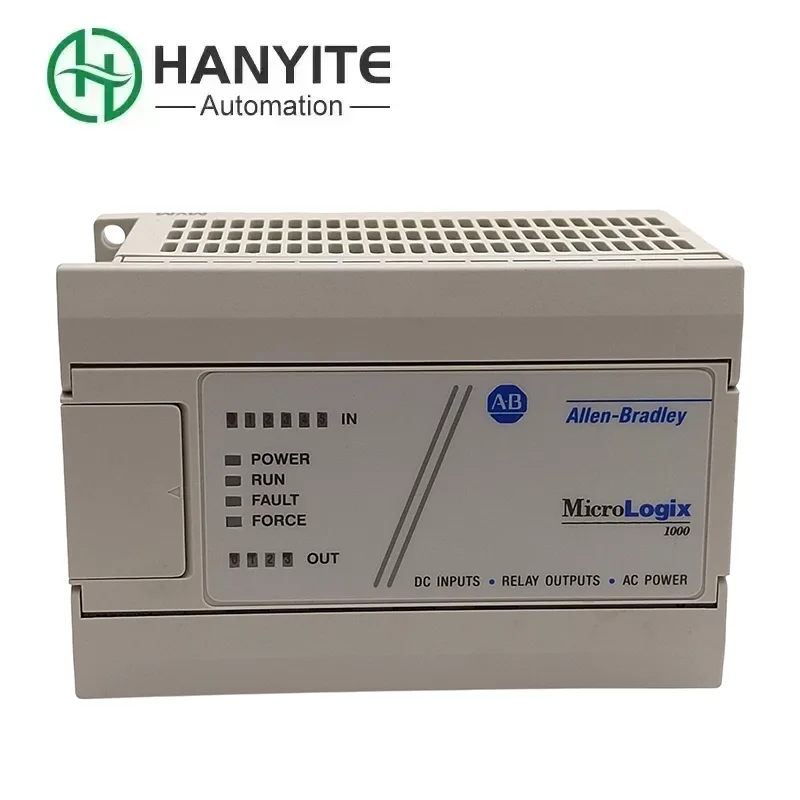

Allen Bradley 1761-L10BWA

The Allen Bradley 1761-L10BWA is a "small-sized commander". As a miniature PLC in the MicroLogix 1000 series of the brand giant Rockwell, its quality is widely recognized. Although the box is not large, it has a smart brain. It comes with its own power supply, can receive signals and issue commands, and can even chat with a computer. For those simple devices that don't require a "supercomputer", it is the most economical "brain". The good news is that we have stock now and guarantee it to be original and brand new. If you need it, we can also provide simple program customization services based on your equipment requirements, so that you can use it right after receiving it.

Product structure

1. The entire thing is just a small black box. All the components are already inside it, very compact.

2. It comes with its own "meal ticket", simply plug it into the 220V electricity from our factory and it can operate. You don't need to provide it with an additional power source.

3. Inside the box is its "brain", which is that CPU. All the decisions are made by it.

4. It has "eyes" and "hands". There are 10 "eyes" to receive external signals and 6 "hands" to perform specific tasks.

5. There is also a "mouth" beside it, which is the communication port. It's convenient for you to use a computer to "chat" with it and give commands.

Key features

1. It's really small in size, and it can fit in any corner, saving a lot of space.

2. It's a "family-sized" device. It comes with all the necessary components - power supply, CPU, input and output. You don't need to piece things together yourself. With fewer connections, it's less likely to malfunction.

3. Programming is similar to drawing circuit diagrams. It's easy to understand at a glance. Electricians can pick it up very quickly.

4. The price is very reasonable. For simple tasks, it's the most cost-effective choice. You can save a lot of money.

5. Although it's small, it's a genuine industrial product. It's very durable and can withstand heavy use in the workshop for a long time.

Addressing the pain points

The Allen Bradley 1761-L10BWA is mainly designed to solve the problem of "difficult tasks to handle". Previously, if any intelligent control was needed on the equipment, you either had to build a complex circuit using a bunch of relays, which would require modifying the logic head and was quite cumbersome, or you had to spend a lot of money on a large PLC. It was truly like using a big tool for a small job. Now, with this little device, you can achieve great results with less money. It integrates all the functions together, not only making the electrical control cabinet cleaner, but also making modifying the control logic as simple as editing a document. This enables those simple small devices to have a reliable and intelligent "brain".

Product flowchart

On-site sensors/switches

Signal input to Allen Bradley 1761-L10BWA

CPU runs the user-written program

Make judgments according to the program logic

Output signals to control on-site equipment (such as motors, indicator lights)

Application of specific scenarios

1. On various small conveyors, the Allen Bradley 1761-L10BWA is used to control the start and stop of the conveyors, or to detect whether the objects have reached the designated position.

2. Control water pumps and fans, such as automatically stopping the pump when the water tank is full, or automatically activating the ventilation system at a certain time.

3. Used in automatic doors, such as glass doors in stores or rolling shutters in garages, opening when people come and closing when people leave.

4. On simple assembly line stations, directing fixture cylinders, tightening motors and detection sensors to work in sequence.

5. Control small packaging machinery, such as automatic sealing machines and labeling machines, to complete simple packaging actions.

6. Used in building automation, controlling the lighting in corridors or garages, achieving timed on/off.
