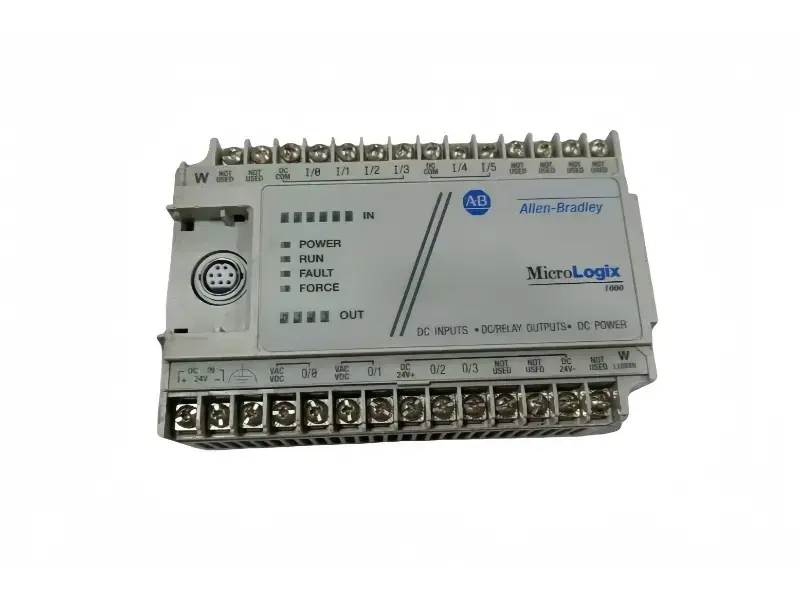

he Allen Bradley 1761-L10BXB is a small PLC from Rockwell Automation's (Allen Bradley) MicroLogix 1000 series. It's a control core specifically designed for applications with small equipment and simple control logic. It's compact, self-powered, and can be installed directly in a small electrical cabinet or even directly on the machine. While more advanced series are now available, this robust, stable, and inexpensive module remains a mainstay in many factories' simple equipment, such as small conveyor belts, simple packaging machines, or some stand-alone automated equipment. If you are looking for replacements for these older machines and need to buy this module, choosing a reliable supplier is crucial. We guarantee that every product we provide is original and in stock, ensuring your equipment can be maintained promptly without affecting production.
1.The most distinctive feature of the Allen Bradley 1761-L10BXB is its convenience. It integrates the power supply, CPU, and input/output points into a small box for you. You don't have to worry about matching a power module or whether the I/O points are sufficient. For small devices that control a few motors and sensors, you can just take it and use it directly. Moreover, it is very robust and can work stably in noisy and vibrating factory environments, unlike some delicate devices that tend to malfunction frequently. This aspect is particularly reassuring for experienced workers.
2.Another advantage of this device is that it is both cost-effective and easy to learn. Its price is very affordable, which can save a lot of costs for your project. The programming uses the most classic ladder diagram, which is as intuitive as reading electrical diagrams. People with a little electrical background can quickly get started. Additionally, its programming software is free, and there are abundant resources available online. Whether it's for beginners learning the technology or experienced workers quickly solving problems, it is very convenient.
The use of Allen Bradley 1761-L10BXB has led to efficiency improvements in two main aspects. First, the equipment response has become faster. Although its internal processing speed is not top-notch, it is more than sufficient to control motors, valves, and the like. The logic execution is straightforward and efficient, much faster and more reliable than circuits built with relays. Second, maintenance and debugging have become quicker. Previously, when equipment malfunctioned, you had to carry a multimeter and check the circuits everywhere. Now, you can simply connect to a computer to view the program status. It is immediately clear which points are not functioning and which conditions are not met. The time for troubleshooting can be reduced by more than half.
Can this PLC control servo motors or stepper motors?
The Allen Bradley 1761-L10BXB cannot control them directly. It doesn't have a high-speed pulse output function, so it can't send pulses directly to the servo driver. If you really need to control them, you would have to connect an external positioning module, which would be like using a sledgehammer to crack a nut. It would be better to just switch to a PLC model that supports pulse output.
Does this PLC support Ethernet communication? Can it be directly connected via an Ethernet cable?
No, it doesn't support it. It doesn't have an Ethernet interface on its own. The controllers of that era relied mainly on serial communication. The built-in programming ports were 8-pin RS-232 DH-485 or RS-232 interfaces. If you really want to use a network connection, you'll have to purchase an additional communication conversion module (such as 1761-NET-ENI) to convert the signal, and the cost will increase accordingly.
My program is done. How can I download it to the PLC?
It's very simple. Use a dedicated programming cable (one end is RS-232, the other end is RS-485 or USB, depending on your computer interface) to connect your computer to the programming port of the PLC. Then set the communication parameters in the software and click to download.
