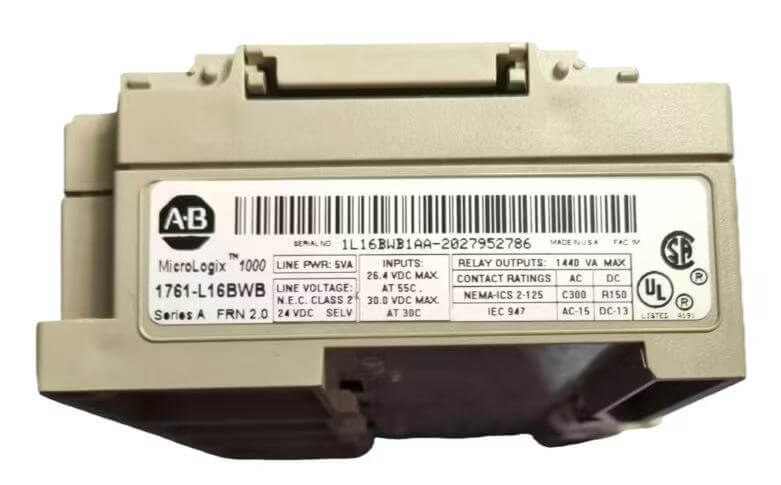

Allen Bradley 1761-L16BWB

I/O response speed is make-or-break for small machines.

The Allen Bradley 1761-L16BWB fixes the old relay board headaches — messy wiring and slow, jittery responses.

It runs on 24V DC and has built-in high-speed counting, so it picks up every pulse from the line without missing a beat.

It’s rock-solid for things like sorting stations or small conveyor interlocks.

Hanyite Automation Technology keeps brand new units in stock, so you can get them fast. No waiting around when you need to upgrade or swap out old gear.

On the factory floor, what you gain

This compact PLC has all the I/O you need built right in. It doesn’t hog space in the cabinet, and it keeps wiring neat instead of messy.

The Allen Bradley 1761-L16BWB processes interlock logic fast, so it stops wrong commands before they cause problems. That means fewer accidental machine triggers on the line.

It also has expansion ports for later upgrades. You can add sensors or other gear without ripping out the whole system later.

Getting it up and running

By adopting intuitive ladder diagram programming logic, engineers can quickly complete program writing and modification, significantly shortening the initial deployment cycle of the project.

The front panel indicator lights of Allen Bradley 1761-L16BWB clearly display the operation and communication status of each channel. Operators can directly and intuitively determine the system's working condition without the need for additional instruments.

The built-in multiple standard instruction sets simplify the action control process of complex processes, making the implementation of routine control tasks extremely convenient.

Serviceability on the line

The plug-in terminal block design enables the complete preservation of on-site wiring when replacing the controller, keeping the downtime for disassembly and assembly to an extremely short duration.

Allen Bradley 1761-L16BWB supports online program monitoring and fault diagnosis through the upper-level software, allowing maintenance personnel to quickly locate abnormal nodes in internal relays or timers.

The battery module and memory card of the controller adopt an external replacement structure, eliminating the need to disassemble the entire chassis for daily data backup and component replacement.

On the factory floor use cases

Independent logical control of standalone equipment, such as the coordination of the start and stop of small conveyors and the execution of the material sorting mechanism.

Centralized management of small workstations within the workshop, enabling the collection of sensor signals from local workstations and the actuation of actuators.

Allen Bradley 1761-L16BWB is suitable for remote substations in a distributed control architecture, responsible for signal preprocessing at the lower level ports and data exchange with the main control system.
