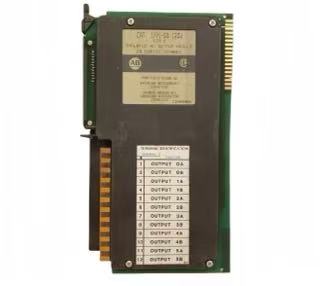

Allen Bradley 1771-OD

The Allen Bradley 1771-OD is essentially an output module in the PLC-5 system. The brain (CPU) of the PLC is responsible for issuing instructions, and this module is responsible for executing them. Its main function is to control devices that require larger currents, such as solenoids, contactors, and indicator lights. It receives the "on" or "off" commands from the PLC and then turns on or off the power supply of these devices, allowing them to work when they should and rest when they should. If you have any purchase requirements, as a professional supplier, we can provide you with original, brand-new genuine products to ensure the stable operation of the equipment.

Addressing the pain points

It mainly addresses several troublesome issues. Firstly, the PLC itself cannot power those "large-sized" equipment. The current is too small. The 1771-OD is like a "powerful man", helping the PLC amplify its strength to drive those devices. Secondly, in the factory, electrical signals are easily interfered with, causing the equipment to move randomly. It separates the control signals from the high voltage, making the system more stable. Finally, it neatly connects all the wires to itself. The site looks tidy and it's easier to find the problem if it occurs, unlike before when it was all in a mess.

Core function

Its core function is actually very simple - it's just a "switch". It does two things: First, it follows the instructions of the PLC, and the CPU tells it to turn on which one, and it does so. Second, it controls the power on/off of external devices. It's like a very obedient electrician. You tell it to turn on a certain light, and it accurately closes the switch for that light without making any mistakes. At the same time, it can also protect the PLC, blocking out dangerous strong electrical interference from the outside.

Man-machine interaction

The way it "communicates" with humans is simple, but very useful. The most important thing is the row of LED lights on its panel. Each output point corresponds to a light. When the PLC instructs a certain point to act, this light will turn on. When you are debugging on-site or looking for faults, just look at the lights and you'll know if the PLC has given the command. If the light is on but the equipment doesn't move, it's a problem with the equipment or the wiring; if none of the lights are on, it's a problem with the program or module itself. This simple prompt can save you a lot of troubleshooting time.

Parameter
