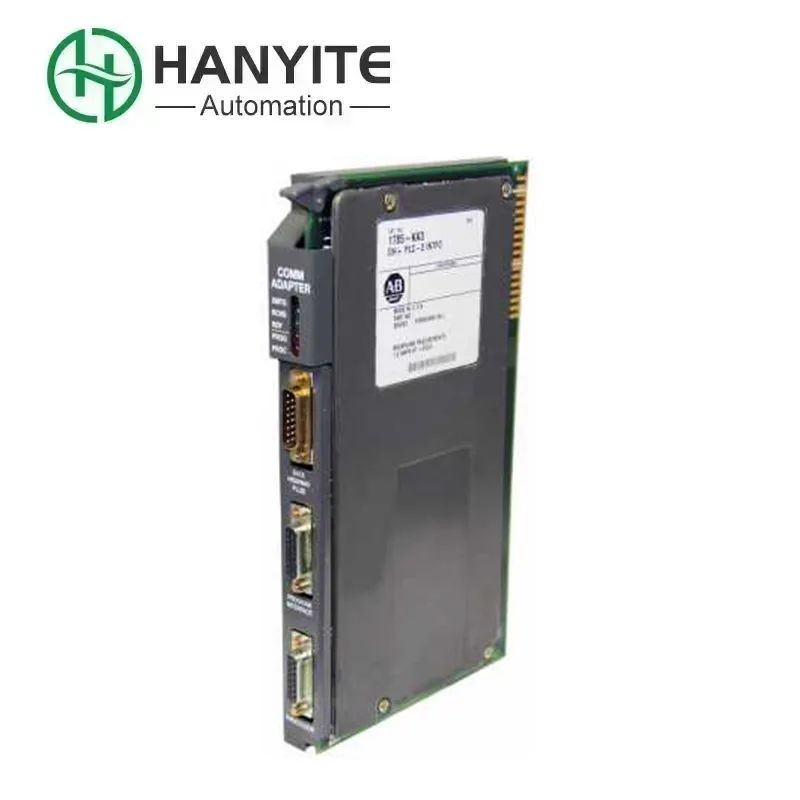

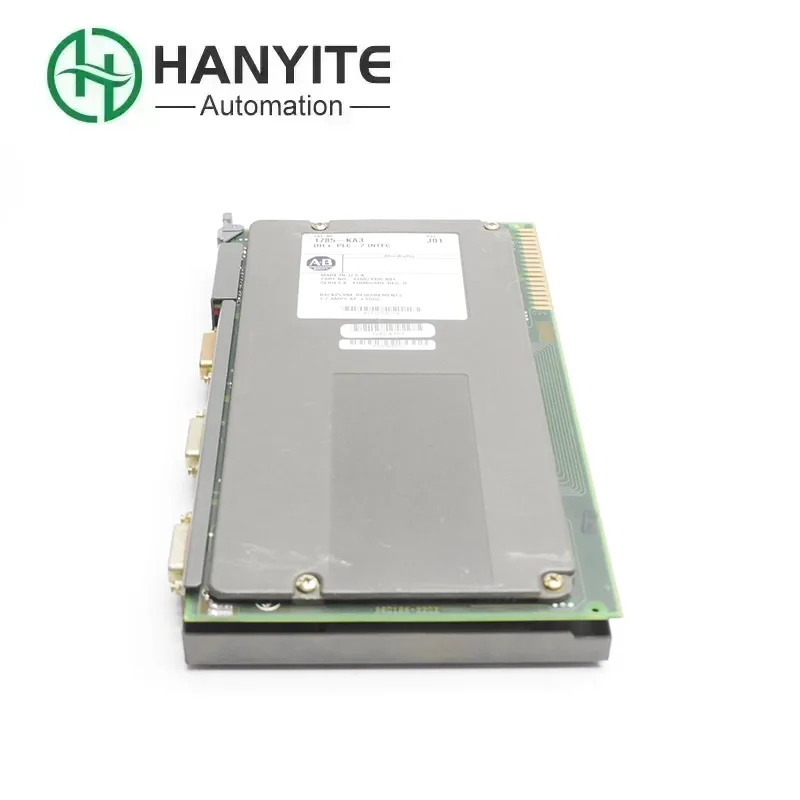

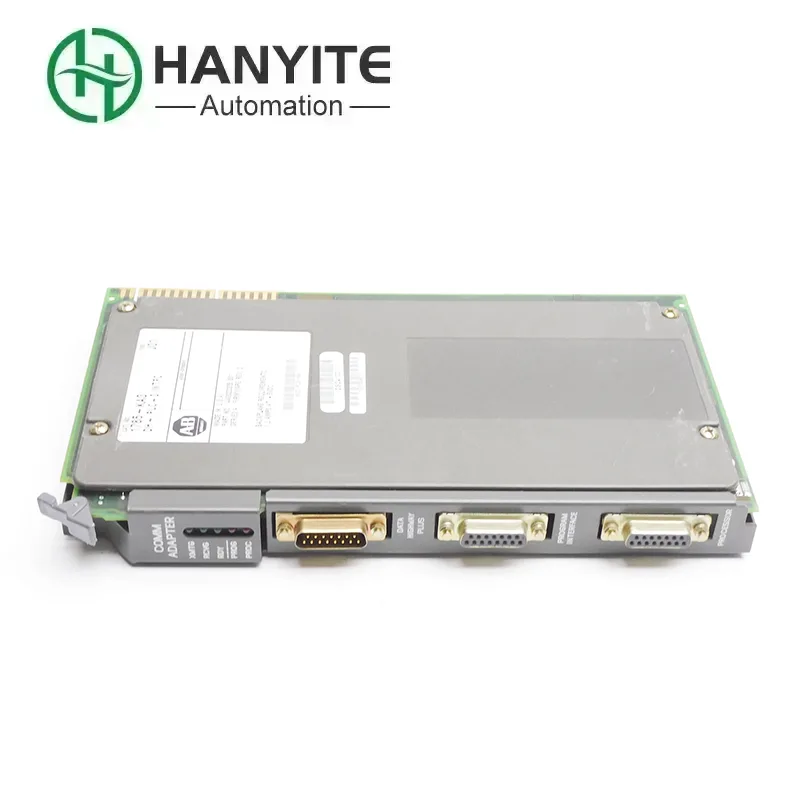

Allen Bradley 1785-KA3

The Allen Bradley 1785-KA3, you can think of it as a professional "field bus translator". It doesn't do the work itself, but it enables two devices that speak different "languages" - one is the old, reliable DH+ bus, and the other is the more modern and universal Ethernet/IP (Ethernet) - to communicate smoothly. In simple terms, it is a bridge that allows your valuable old PLC-5 equipment still in service in the factory to connect to the current factory network and have a conversation with the new system. Therefore, when you need to buy this crucial "translator", it is particularly important to find a reliable supplier. As a professional supplier, Hanyite Automation Technology guarantees you genuine original products and it is currently in stock, enabling your old equipment to quickly "start talking" and easily integrate into modern production management.

Product parameters

Core function

First, the Allen Bradley 1785-KA3 is a bilingual translator. One side speaks "Ethernet language", while the other side speaks "DH + local dialect". They switch back and forth, enabling both sides to understand what the other is saying.

Second, it laid a network cable for the old equipment, allowing those PLC-5s that were originally in isolated "islands" to connect to our current factory-wide network. Data can be uploaded and instructions can be issued.

Third, it works silently. PLC-5 cannot sense that there is an "intermediary messenger" in between. You might think you are directly communicating with the PLC, but in fact, it is helping you in the middle, which is very convenient.

Addressing the pain points

1. In many factories, there are still a large number of PLC-5 systems operating stably, but they use the DH+ bus, which cannot connect to the factory's Ethernet and thus become isolated information islands. Data cannot be uploaded and monitoring is impossible. The Allen Bradley 1785-KA3 is the "icebreaker" that breaks these isolated islands, enabling the data of these old devices to be connected to the network, achieving centralized monitoring and management.

2. The original upgrade cost was extremely high. Replacing the entire still-functional PLC-5 system would be prohibitively expensive, and there was also a high risk of production suspension. Therefore, spending a little money on it would allow the old system to have network capabilities, making it an extremely cost-effective "modernization transformation" solution.

3. Previously, engineers had to carry computers to the equipment and use dedicated cables to connect to the PLC program. With it, engineers can directly access and program the PLC remotely through the Ethernet from their offices, which is much more convenient.

Compatibility and Integration

1. The Allen Bradley 1785-KA3 is specifically designed for Allen-Bradley's PLC-5 and SLC 5/04 series processors. Just plug it in and it can be used. The compatibility is 100% without any problem.

2. Within Rockwell's entire ecosystem, it can be seamlessly integrated with FactoryTalk View SE (upper-level monitoring software), RSLogix 5 (programming software), etc. The configuration and usage are very smooth.

3. On the other side is the standard Ethernet/IP, meaning it can communicate not only with Rockwell's own devices, but any third-party device that supports the Ethernet/IP protocol (such as Siemens' HMI, certain SCADA software) can theoretically communicate with it as well.

Advantage of Quality Control

1. It is Rockwell's own "son-in-law", a natural match for PLC-5. Its compatibility and stability are beyond what a third-party gateway can match. You don't have to worry about it "misinterpreting words" or constantly losing connection.

2. It is designed according to industrial standards and can work stably for a long time in various electromagnetic interference and temperature change environments. It is robust and durable, making it a "reliable product" on the production line.

3. Using original factory modules, if there is a problem, you can find official technical support. There are a large number of documents and cases that can be referred to, making it easy to solve the problem with confidence.
