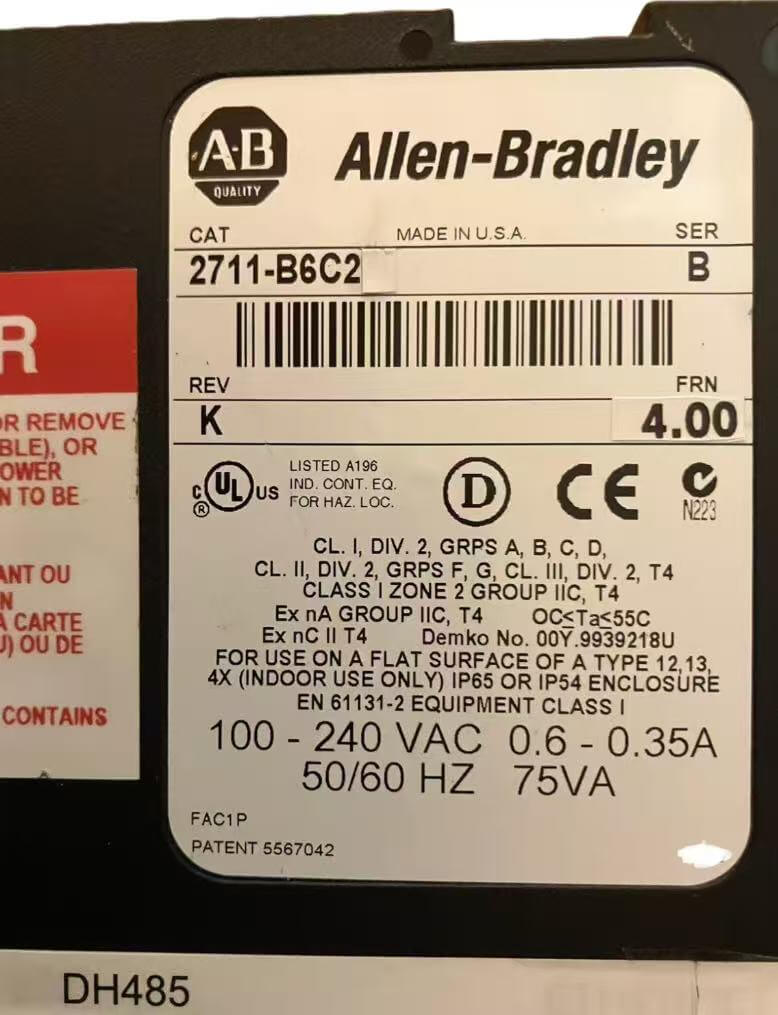

Allen Bradley 2711-B6C2

Do you want to replace those old physical buttons and indicator lights in the control cabinet? The Allen Bradley 2711-B6C2 classic color touchscreen in the Rockwell PanelView 600 series is definitely a great choice. Although its 5.7-inch screen is not very large, it has rich colors and clear display, allowing the operator to directly monitor the machine. Especially for those control cabinets or small devices with limited space, installing it is the most suitable option. When purchasing this classic model, you must find a reliable supplier. Hanyite Automation Technology guarantees to you that all our products are genuine and original, with sufficient stock available and ready for your order at any time.

Man-machine interaction

Despite its small size of only 5.7 inches, this screen is quite impressive when it comes to "color psychology". Red indicates an alarm, while green indicates normal operation. Even if you are a little far away or a newbie with no experience in the factory, just a quick glance will give you a clear understanding of the machine's condition. You don't need to memorize those boring codes at all.

The operation itself is also very comfortable. Besides supporting touch screens, it is also equipped with a row of physical buttons. To be honest, when working in the workshop, sometimes your hands are dirty or you are wearing thick gloves. Touching the screen might make you unsure or accidentally touch other areas. But with these physical buttons, it's different.

Core Function

This machine has an absolutely outstanding core functionality. The operation is incredibly smooth! Allen Bradley 2711-B6C2 can instantly transform the dry temperature, pressure and other data in the equipment into clear and refreshing charts. When you stand in front of the screen, you can immediately understand the status of the machine and whether it is having a tantrum. If there is a real problem, it will pop up a window and directly "report the issue", letting you know where the problem lies. The maintenance technician can then go over and fix it precisely, without having to search blindly everywhere like a lost insect.

The most exciting feature is the "one-click formula change". Previously, when changing the specifications on the production line, the operator had to painstakingly modify the parameters one by one, which was time-consuming and prone to human error. Now, it's much easier. Just pull up the ready-made formula and click, and it's done in seconds. It saves time and is also foolproof. Moreover, it has a certain level of security. All the crucial parameters are locked with a password, so no one can tamper with them. The main selling point is the complete sense of security it provides!

Environmental adaptability

This machine is designed to work in harsh environments and is extremely durable. No matter how dusty or oily the workshop is, it can withstand it. The front panel is well-sealed and can be wiped clean with just one wipe. Moreover, Allen Bradley 2711-B6C2 has strong resistance to vibration and interference. Even when there are large power equipment operating nearby, it won't be affected. It can run stably regardless of the temperature, whether it's cold or hot. Basically, it is a kind of "hardworking" equipment that doesn't require much attention.

Product flow diagram

Operator operation (click on the screen / input instructions)

⬇

Human-machine interface (2711-B6C2) (receive signals ➔ update screen ➔ display data/alarm)

⬇

Communication port (converted through DF1/DH-485 protocol)

⬇

PLC controller (receive instructions ➔ perform logical operations ➔ control device actions)

⬇

Field equipment (motor start/valve opening/sensor action)

⬇

Status feedback (device operation data/fault signals sent back to PLC)

⬇

Human-machine interface (Allen Bradley 2711-B6C2) (real-time update of screen display)

⬇

Operator operation (view new status and proceed with the next step)
