Allen Bradley 2711-K10G8L1

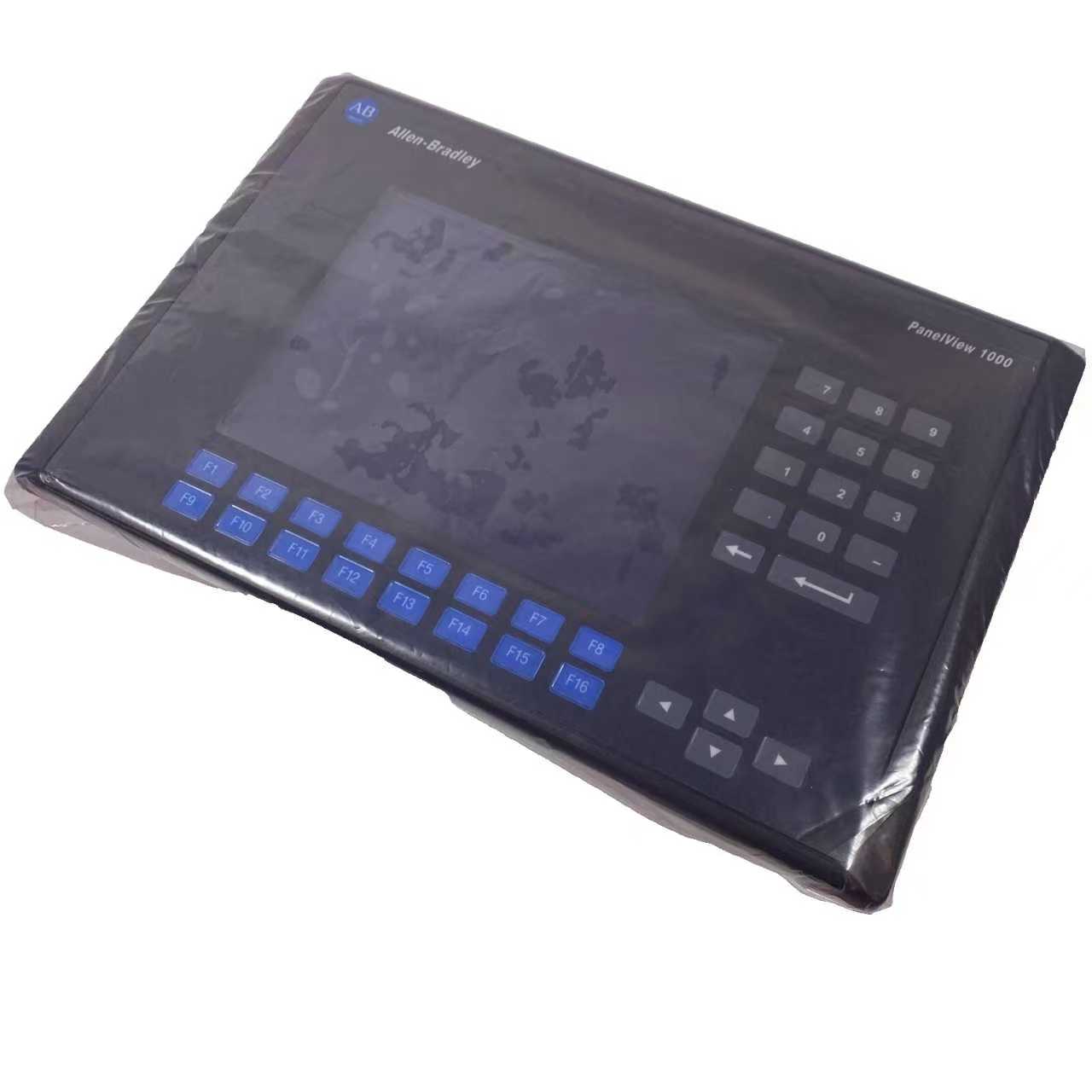

The Allen Bradley 2711-K10G8L11 is a 10.4-inch color touchscreen operation terminal, belonging to the "PanelView 1000" series. It is mainly installed in industrial control cabinets and is responsible for connecting operators with machine equipment. Whether it is displaying the operating status of the equipment, alarm information, or allowing workers to click buttons and input data, all these tasks are accomplished by it. It runs the Windows CE operating system internally, with a fast interface and powerful functions. It can be found in many old automated systems. If you have a purchasing plan, you can contact Hanyite Automation Technology. We guarantee to provide original and brand-new, stable and reliable genuine products.

Addressing the pain points

Working in a factory, the most annoying thing is when the machine breaks down but you can't figure out the problem, or the operation is so complicated that it makes you dizzy and you keep pressing the wrong buttons. Allen Bradley 2711-K10G8L11 is specifically designed to solve these problems. First of all, the display on it is a graphical interface, unlike the previous dashboard which was so complicated. Workers don't have to run around looking at the meters; they can directly see the current temperature and pressure of the machine on the screen. Secondly, its alarm is very accurate. If something goes wrong, it will pop up a window to tell you exactly where the problem is. The maintenance technician can immediately know where to repair it without having to look around aimlessly. Finally, it has replaced many physical buttons with virtual keys on the screen. There are not so many messy wires and switches in the control cabinet, so it is less likely to have hardware failures.

Man-machine interaction

The human-computer interaction design of the Allen Bradley 2711-K10G8L11 is quite user-friendly. Because it is color-based, operators can quickly distinguish different states by color, such as green representing normal and red representing fault, which is very intuitive. Its touch screen is responsive, and the operation logic is somewhat similar to current smartphones. Clicking a button can jump to a page or input a value. Moreover, its interface design software (PanelBuilder32) is also relatively flexible to use. Engineers can draw some simple and understandable operation buttons, progress bars, or trend graphs based on the workers' operating habits, allowing workers without deep training to easily master it and reduce the occurrence of errors.

Environmental suitability

The industrial environment is often poor, with dust, vibration, and even significant temperature variations. The Allen Bradley 2711-K10G8L11 model is specifically designed for such environments. Its casing is made of sturdy industrial-grade plastic, and the front panel reaches NEMA 4/4x protection level (equivalent to IP66), which can prevent oil, dust, and even low-pressure water column flushing. It is cleanable with water if it gets dirty. Its operating temperature range is wide, from 0 to 55 degrees Celsius, and it can operate stably. Moreover, it has strong vibration and interference resistance, and even in noisy and vibrating workshops, it can operate stably without crashing.
