If your workshop runs under harsh factory conditions with thick dust and fluctuating temperatures, you cannot afford to pick low-grade HMI devices casually. We operate Hanyite Automation Technology as an industrial control vendor, and we keep plenty of automation parts stocked all year long with strict quality control for every unit.

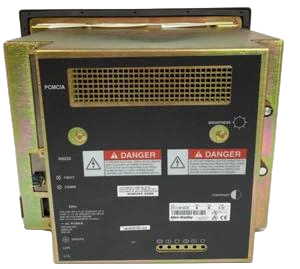

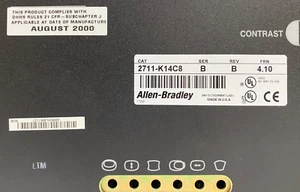

The 2711-K14C8 from Allen Bradley comes built with sealed housing and reinforced frames to block dust, moisture and minor vibration on-site. It captures field operational data and sends control instructions steadily without lag, so it can run stably on all types of manufacturing processing lines day after day.
The Allen Bradley 2711-K14C8, as a high-performance human-machine interface of the PanelView 1400 series, is equipped with a 14-inch color CRT display with a resolution of 800×600, which can clearly present the complex data and dynamic graphics of the industrial site. The device integrates DH + communication interface and RS-232 printer port, and can directly connect to Rockwell's entire series of PLCs, achieving high-speed data interaction and local printing of production reports.
It has a built-in 1008KB application flash memory, supporting on-site program storage and offline debugging, and is suitable for monitoring and operation requirements in various scenarios such as continuous process industries and intelligent manufacturing lines. It also has strong signal processing capabilities, capable of real-time collection of key parameters such as equipment operation status, temperature, and speed, supporting over-limit alarms and data traceability, ensuring the controllability and traceability of the production process.
It adopts a 14-inch large-sized color display design, with adjustable screen brightness and contrast. It can clearly read data in strong light or weak light environments in the workshop, reducing the visual fatigue of operators.
It is equipped with industrial-grade film key panels, with clear key touch sensation and support for custom function labels. It can be set with quick operations according to production line requirements, simplifying the daily parameter adjustment and command issuance processes.
It is equipped with PanelBuilder supporting software, with intuitive interface configuration operations, supporting drag-and-drop graphic editing and variable association, enabling zero-based technicians to quickly complete interface design and program configuration.
It has a real-time status indicator function, clearly showing the status of power supply, communication, and faults, allowing for quick judgment of the equipment operation status without the need for complex detection tools.
It supports dual communication modes of DH + and RS-232, with standardized wiring methods, allowing for connection to PLCs and peripherals without additional adapter modules, shortening the on-site deployment cycle.
The body adopts NEMA 12/13 protection structure, with excellent dust and oil resistance performance. Daily cleaning only requires wiping the surface, with a simple and convenient maintenance process.
The traditional industrial human-machine interface often has problems such as unclear display, cumbersome operation, poor communication compatibility, and weak environmental adaptability. The Allen Bradley 2711-K14C8 specifically addresses the core pain points of the industry. For the problem of unclear display and difficult data reading in old equipment, this device is equipped with a high-definition color display, perfectly adapting to long-distance and multi-station observation scenarios. For the pain points of complex operation and slow learning for beginners, its simplified button layout and configuration process significantly reduce the operational threshold for personnel and reduce the probability of human errors.
For the problem of difficult communication adaptation and high transfer costs between different brands of PLC, the device is natively compatible with Rockwell communication protocols, seamlessly connecting without secondary development, saving hardware procurement and program development costs. For the pain point of high equipment failure rate caused by harsh environments such as dust, oil, and vibration in industrial sites, its reinforced body structure and sealing design can withstand continuous vibration and slight impact, with a stable operating temperature range of 0°C - 55°C, significantly reducing the frequency of equipment shutdown and maintenance.
Q1. What series of human-machine interface does this unit belong to? In which scenarios is it mainly applied?
This device belongs to the PanelView 1400 series of push-button type human-machine interface. It is widely used in mechanical manufacturing, chemical processes, automated production lines, and industrial training workshops, etc.
Q2. Does this human-machine interface support touch operation? What is the specific operation method?
The device does not have a touch function. All operations are completed through the industrial film buttons equipped on the body. It has a stronger anti-misoperation ability and is more suitable for high-intensity industrial sites.
Q3. Which brands and models of PLC can it establish communication connections with?
It is natively compatible with all series of PLCs from Rockwell Allen Bradley, including ControlLogix, SLC 500, CompactLogix, etc. Allen Bradley 2711-K14C8 can directly communicate through the DH + protocol.
Q4. Will the internal configuration programs and parameters be lost after the device is powered off?
They will not be lost. The body has an independent flash memory for storing programs and configuration parameters. Data is permanently saved after power off and can be directly used after power on.
Q5. How is the protection capability of the device? Can it be used normally in dusty and highly oily workshops?
The entire machine follows the NEMA 12/13 protection standard. It has excellent dust and oil-proof effects and can operate stably in complex working conditions in the workshop.
