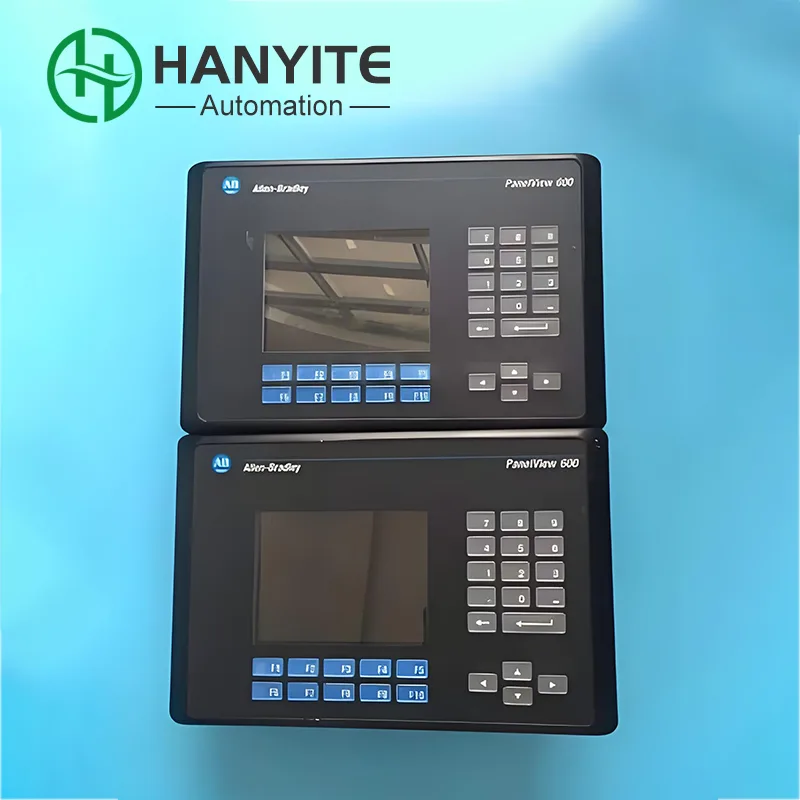

Allen Bradley 2711-K6C1L1

Hanyite Automation Technology is a leading professional Allen Bradley 2711-K6C1L1 exporter in China. As a human-machine interface (HMI) module for the PanelView 600 series, it provides an efficient and intuitive interactive experience between operators and control systems. We are always committed to providing you with original and latest 2711-K6C1L1 products, and have won wide trust and praise from global customers with highly competitive prices and professional services.

Product specification

Module	Allen Bradley 2711-K6C1L1
Display	5.5-inch Color TFT LCD
	Resolution: 320 × 240 pixels (QVGA)
Input Method	22-key Stainless Steel Membrane Keypad
Power Supply	18-32 VDC (Typical 24 VDC)
	Power Consumption: 15W
Communication Ports	DH-485 (8-pin round port)
	RS232 Programming Port
Memory	240 KB Application Memory (approx. 190 KB available)
Operating Temperature	0 °C to 55 °C (32 °F to 131 °F)
Enclosure Rating	NEMA Type 4 / 4X / 12 / 13 (Front Panel)
Dimensions (H × W × D)	167 mm × 212 mm × 98 mm (6.58 in. × 8.35 in. × 3.86 in.)
	*Note: Designed for direct mounting in existing cutouts*
Weight	1.8 kg (3.97 lbs)

Function

The Allen Bradley 2711-K6C1L1 human-machine interface module is suitable for a variety of industrial scenarios. It supports application review and modification, and has built-in RS-232 and DH+ communication interfaces for easy connection to various controllers to meet the needs of data monitoring, equipment operation, and status display in industrial environments.

Advantages

The most obvious feature of Allen Bradley 2711-K6C1L1 is pure key operation. There are a total of 22 function keys F1-F10, number keys 0-9, direction keys, Enter, ESC, and Home. Workers wearing thick gloves can press them without any difficulty. Although the 5.5-inch color screen has a resolution of only 320×240, it is particularly clear when displaying simple values, status lights and alarm text. Large numbers can be clearly seen from 10 meters away at the scene. The DH-485 port can be connected to the SLC500 and MicroLogix with a common shielded twisted-pair cable. The wiring is simple, and many small machines are still using this network to this day.
