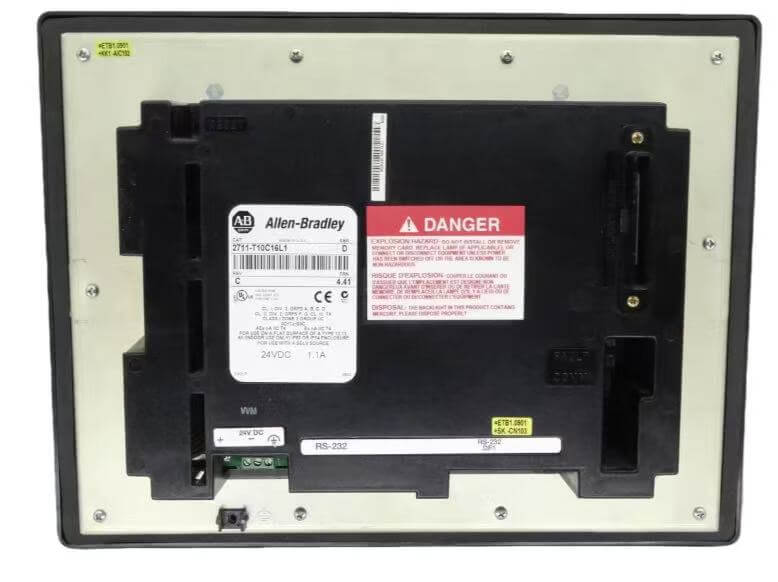

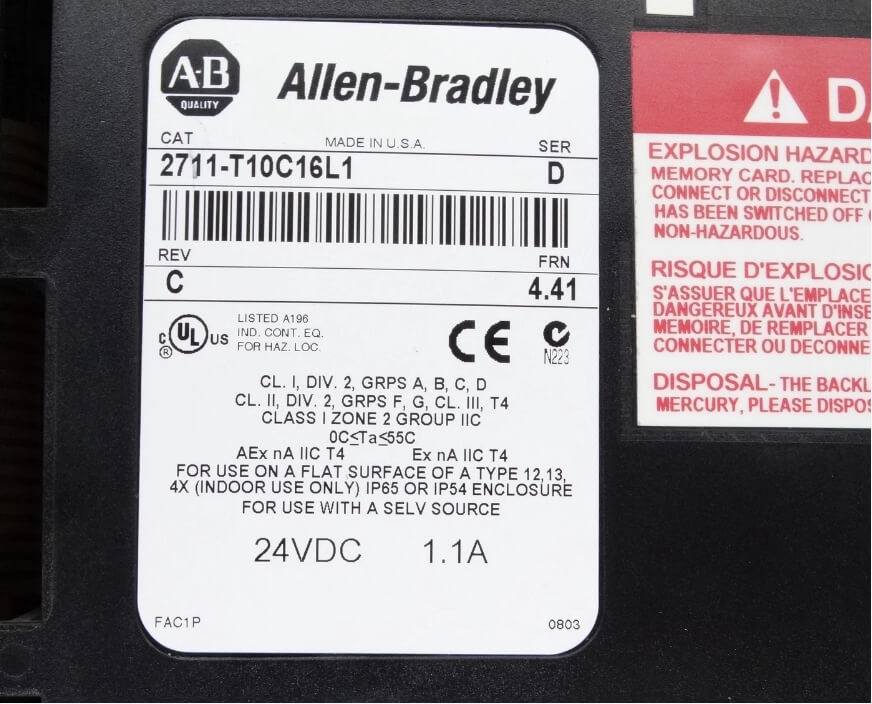

The automatic assembly line requires reliable color display terminals to monitor the production cycle. The Allen Bradley 2711-T10C16L1 is equipped with a 10.4-inch TFT screen and touch buttons for dual input, which is more accurate in triggering instructions for operators wearing gloves compared to traditional single-touch devices. This interface is powered by 24V DC, integrates dual communication ports of DH+ and EtherNet/IP, and directly connects to Rockwell PLC without the need for a gateway, significantly shortening the renovation cycle of the old system. Relying on Hanyite Automation Technology to implement the Wholesale channel for the Factory, all these batches of complete machines are brand new and in stock, effectively ensuring the stable operation and rapid delivery of the production line under frequent intervention.
Equipped with a 10.4-inch color active-matrix TFT display with a resolution of 640×480 pixels, which can clearly present process flow diagrams and real-time alarm lists even in strong light or dim environments inside the cabinet.
Allen Bradley 2711-T10C16L1 is equipped with a logic processing module and 16MB of RAM, which can smoothly drive complex configuration screens and massive historical data trend charts, effectively reducing the risk of picture lag caused by system resource overload.
It has the ability to operate in a wide temperature range, with a working temperature range of 0 to 55 degrees Celsius. The front panel has a NEMA 4X/IP65 protection level, which can resist high-pressure water washing in the workshop and the intrusion of metal dust.
This terminal has excellent architecture adaptability in system interconnection, and can seamlessly connect to various mainstream industrial control networks. The Allen Bradley 2711-T10C16L1 is equipped with EtherNet/IP and DH+ communication interfaces, and can directly connect to Rockwell's full range of PLCs and remote I/O racks without adding a protocol conversion gateway. At the same time, it supports data interaction based on OPC, allowing the upper-level monitoring software to directly read and write internal tags of the terminal, achieving vertical data connection between the underlying equipment status and the workshop-level MES system, significantly reducing the integration development cycle of cross-platform information islands.
The equipment is equipped with a hybrid input architecture combining high-precision analog resistive touch screen and peripheral physical function buttons. During regular screen navigation, the touch response is sensitive. In scenarios such as parameter fine-tuning or when the touch layer is damaged, the physical buttons can still ensure the reliability of hard operations. The system interface labels and prompts support multi-language codeless switching, significantly reducing the training threshold for cross-country factory engineers. The picture switching delay is controlled at the millisecond level, ensuring the immediacy of command issuance during emergency intervention.
Without stopping the workstation, this terminal supports the independent disassembly and assembly of the rear module. On-site engineers only need to unscrew the corner fastening screws to remove the entire machine from the installation opening, without requiring a large-scale disassembly of the cabinet. For the troubleshooting of Allen Bradley 2711-T10C16L1, the built-in diagnostic indicator lights can directly map the communication link connection and power status. Combined with the plug-and-play design of the CF card slot, maintenance personnel can complete the engineering backup migration and machine replacement within minutes, compressing the production line downtime caused by a single hardware failure to the minimum.
