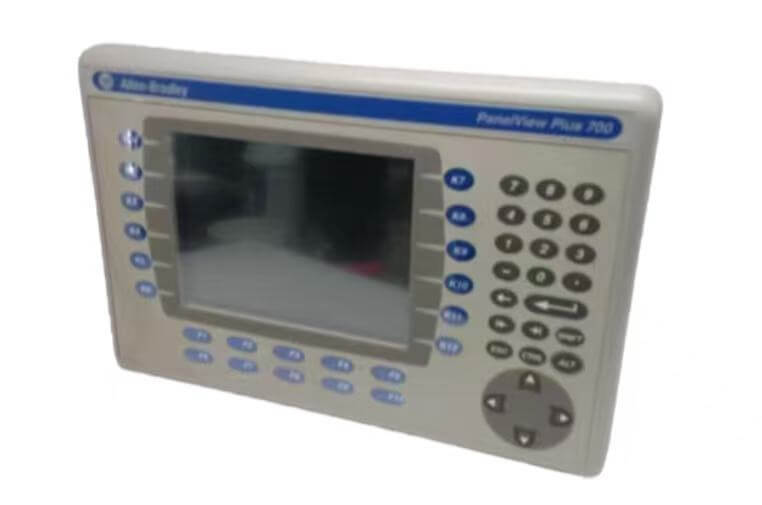

Allen Bradley 2711P-K7C4A7

If the workshop intends to eliminate the traditional physical button cabinets with complex wiring, simply purchasing an Allen Bradley 2711P-K7C4A7 is a very practical solution. It comes with a 6.5-inch color display, making it easy to view the status parameters of the equipment. However, it won't take up too much space when installed in the electrical control cabinet. The equipment runs on 24V DC power and can draw power directly from the existing terminal blocks. Compared to the old control panels where faults had to be diagnosed by measuring indicator lights with a multimeter, now the operators can simply click a few times on the screen to display the underlying logic diagram and quickly identify the reasons for equipment shutdown. It is mostly used for centralized monitoring of single equipment or data collection on the production line. At Hanyite Automation Technology, we are aware of the cost of downtime components, so the goods we have on hand are all brand new original parts and in stock.

Usability

This device has a very low learning curve. The buttons on the screen are large and respond immediately with a single finger touch, even when wearing gloves. Combined with the function buttons on the side, common operations such as page turning, confirmation, or emergency stop can be completed with just one press. There's no need to search for a long time on the screen. The interface design is also quite intuitive. Workers can get started with it after a brief training, without needing to understand any advanced computer knowledge.

Maintaining convenience

This machine is very easy to maintain. The sealing of its front panel is excellent, protecting against dust and water. If Allen Bradley 2711P-K7C4A7 gets dirty, just wipe it with a damp cloth. If there is a real problem, its internal structure is modular, such as batteries and memory cards, which are easily replaceable. You don't need to dismantle the entire machine. Moreover, the software supports remote monitoring. Many fault engineers can identify the problems on their computers, eliminating the need to constantly go to the site.

Core function

The core of it is to communicate with the lower-level PLC. Allen Bradley 2711P-K7C4A7 can read out real-time data such as the speed and temperature of the machine and display them on the screen. You can also directly modify the parameters on the screen. Additionally, it has an alarm function. If there is anything wrong with the equipment, a pop-up window will immediately alert you. It can also record the production data, making it very convenient to check historical records in the future.

Start-up process

After being powered on, the Allen Bradley 2711P-K7C4A7 will automatically start and load the system.

Once the system is ready, it will establish communication with the connected PLC and read the real-time data of the equipment.

Then the monitoring interface will be fully loaded and display the equipment status information. The operator can input instructions through the touch screen or the side buttons, and the instructions will be sent to the PLC for execution.
