Siemens 6ES7453-3AH00-0AE0: The Complete Guide in Questions

The Siemens 6ES7453-3AH00-0AE0 is a specialized SM 453 serial communications module for SIMATIC S7-400. This article dives deep into its capabilities via question-style headings. You'll discover its pros/cons, typical applications, technical nuances, and why Hanyite Automation Technology Co., Ltd. recommends it for demanding industrial networks. A comprehensive FAQ and reference list wrap up this technical deep-dive.

📑 Contents – Quick Navigation

🔹 What exactly is Siemens 6ES7453-3AH00-0AE0?
🔹 Which core features define the 6ES7453-3AH00-0AE0?
🔹 Where is this module typically installed?
🔹 Advantages: Why choose this module?
🔹 Disadvantages: What are the limitations?
🔹 How does it compare with other communication processors?
🔹 What do I need for configuration (hardware/software)?
🔹 Frequently Asked Questions (FAQs) about Siemens 6ES7453-3AH00-0AE0

❓ What exactly is Siemens 6ES7453-3AH00-0AE0?

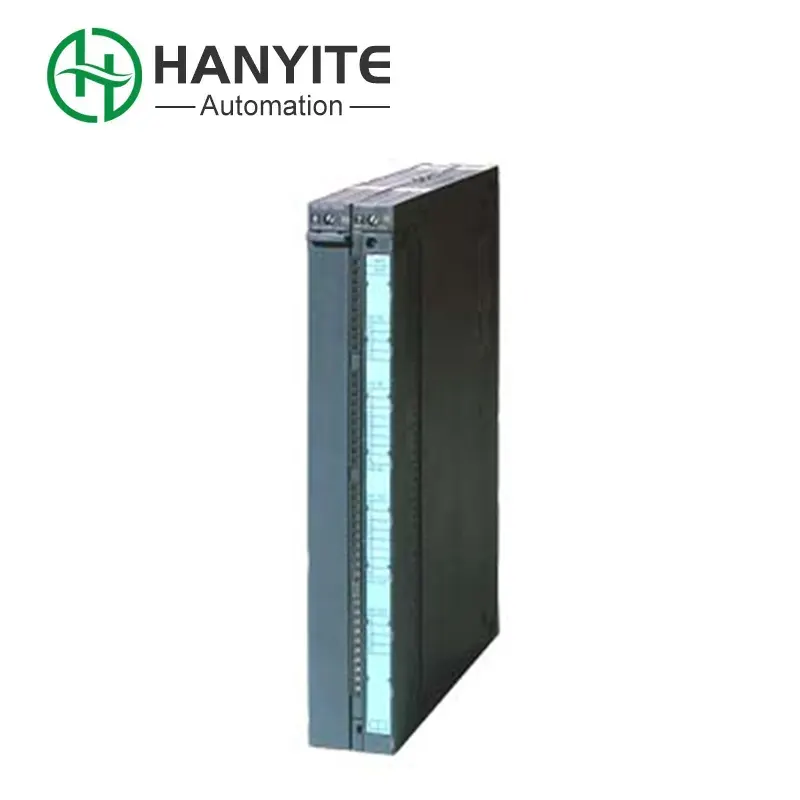

The Siemens 6ES7453-3AH00-0AE0 is a communication processor module belonging to the S7-400 family, specifically the SM 453 (Serial Communications). It interfaces the S7-400 PLC with serial devices using protocols like RS232, RS422, or RS485 (20mA/TTY). This module enables point-to-point (PtP) connections, making it vital for connecting printers, barcode scanners, weigh scales, or legacy equipment. At Hanyite Automation Technology Co., Ltd., we often see this module used in hybrid automation scenarios where older machinery must talk to modern control systems.

❓ Which core features define the Siemens 6ES7453-3AH00-0AE0?

This module supports multiple physical interfaces (RS232, RS422, RS485) with flexible data transmission rates up to 115.2 kbit/s. It has an integrated 5 V DC supply, uses the backplane bus, and includes a 9-pin Sub-D connector. Additionally, it supports the 3964(R) protocol, RK512, and ASCII drivers, making data exchange with third-party devices straightforward. Its firmware handles serial data streams without burdening the CPU, a feature highly appreciated by our engineers at Hanyite Automation Technology Co., Ltd..

❓ Where is Siemens 6ES7453-3AH00-0AE0 typically installed?

Typical applications include:

🏭 Connecting barcode readers on assembly lines.
📠 Sending production reports to a serial printer.
⚖️ Interfacing with industrial weigh terminals.
🔄 Linking S7-400 with older CNC machines via RS485.
📡 Data exchange with remote terminal units (RTUs) using modbus/ASCII.

Many installations from Hanyite Automation Technology Co., Ltd. involve integrating this module in automotive and food & beverage industries.

❓ Advantages: Why choose Siemens 6ES7453-3AH00-0AE0?

❓ Disadvantages: Are there any trade-offs?

✅ Advantages (Pros)

Protocol flexibility: 3964(R), RK512, ASCII – covers most legacy needs.
Electrical isolation: 500 V AC, protecting CPU from surges.
Diagnostic functions: Comprehensive error detection via LED and diagnostics buffer.
Modularity: Can be installed in any S7-400 rack without occupying a CPU slot.
Sturdy design: Rated for industrial environments (0–60°C).
Availability: Long-term support by Siemens, and stock available at Hanyite Automation Technology Co., Ltd.

⚠️ Disadvantages (Cons)

Limited speed: Max 115.2 kbps – not suitable for high-speed sensor networks.
Complex parameterization: Requires step7 and knowledge of serial protocols.
No onboard Ethernet: Purely serial – for modern IP comms you need additional CP.
Large footprint: Single-width S7-400 module, occupies one slot.
Discontinuation risk? Older platform, but still widely used.

❓ How does Siemens 6ES7453-3AH00-0AE0 compare to other CPs?

Feature	6ES7453-3AH00-0AE0 (SM453)	CP 441-2 (6ES7441-2AA04-0XE0)	CP 443-1 (Ethernet)
Communication type	Serial PtP (RS232/485/422)	High-speed serial, 20mA	Industrial Ethernet
Max baud rate	115.2 kbps	115.2 kbps	10/100 Mbps
Protocols	3964R, RK512, ASCII	3964R, ASCII, printer	TCP/IP, UDP, S7, etc.
Application	Legacy device integration	High-end PtP	Modern plant networks

Source: Siemens manual & Hanyite Automation Technology Co., Ltd. internal comparison.

❓ What do I need for configuring Siemens 6ES7453-3AH00-0AE0?

To configure the module, you require:

Siemens STEP 7 (V5.x or TIA Portal with appropriate HSP).
Hardware catalog entry for SM 453.
Serial cable (null modem or straight according to protocol).
Function blocks from Siemens (e.g., FB 7, FB 8) for data handling.

Hanyite Automation Technology Co., Ltd. provides pre-configured sample projects to reduce engineering time.

❓ Frequently Asked Questions (FAQs) about Siemens 6ES7453-3AH00-0AE0

1. Can the Siemens 6ES7453-3AH00-0AE0 communicate with Modbus RTU?

Yes, using ASCII driver or 3964R with custom conversion in the CPU. However, it does not have a native Modbus library; you need to implement the protocol in your PLC logic. Hanyite Automation Technology Co., Ltd. offers ready-to-use FB for Modbus RTU master/slave over this module.

2. What is the maximum cable length for RS485 using this module?

For RS485, the module supports up to 1000 meters at 115.2 kbps, and longer at lower baud rates (up to 1200m at 9.6 kbps). Ensure proper termination resistors.

3. Is Siemens 6ES7453-3AH00-0AE0 still in production?

Siemens classifies it as “phase-out” but still available through distributors and specialized suppliers like Hanyite Automation Technology Co., Ltd., which keeps stock for maintenance and expansions.

4. Does it support 20 mA current loop (TTY)?

No, the 6ES7453-3AH00-0AE0 does not support 20 mA TTY directly. For TTY you need the 6ES7453-3AH00-0AE1 variant or an external converter. Always check the exact order code.

5. Can I use two 6ES7453 modules in one S7-400 rack?

Absolutely. Up to 10 communication processors can be installed depending on the backplane power and addressing. This is common in multi-protocol gateway applications designed by Hanyite Automation Technology Co., Ltd..

📚 References & technical sources

Siemens AG: SIMATIC S7-400, SM 453 Manual (Entry ID: 16832465).
Industry Forum: Serial communication with S7-400 – community.siemens.com
Hanyite Automation Technology Co., Ltd. – Application Note AN-SM453-01 (available upon request).
Personal insights from engineering team at Hanyite Automation Technology Co., Ltd.

🔧 Need a reliable source for Siemens 6ES7453-3AH00-0AE0 or integration support?

Hanyite Automation Technology Co., Ltd. provides genuine modules, technical support, and custom programming.
👉 Contact us today for a quote or engineering consultation — we reply within 2 hours!
