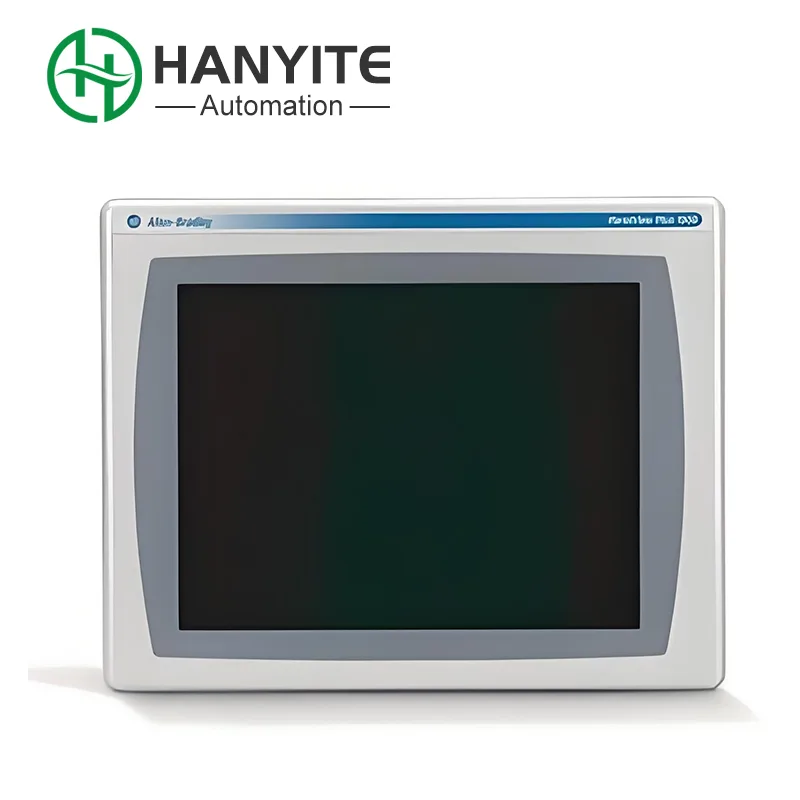

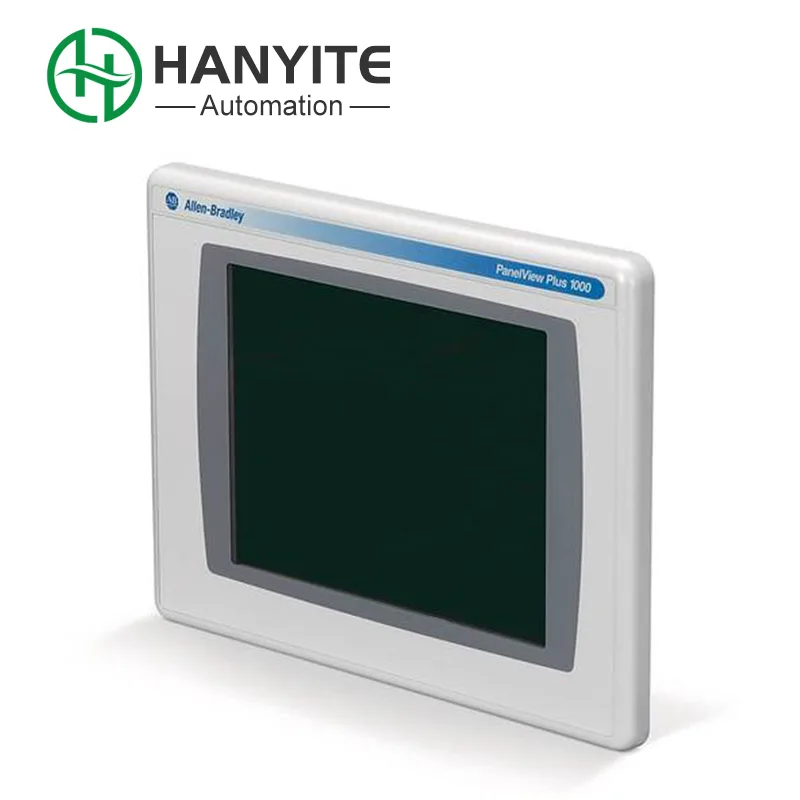

Allen Bradley 2711P-T10C15D1

We at Hanyite Automation Technology are fully aware of your caution and expectations when choosing core equipment, so we solemnly promise that every 2711P-T10C15D1 we provide you is genuine and original quality. You can completely trust us, because we not only provide a PanelView Plus 1000 series touch screen terminal device, but also our commitment to professional service and long-term support. We eagerly look forward to the opportunity to work with you to create smarter and more efficient automation applications.

Application

The Allen Bradley 2711P-T10C15D1 can conduct real-time status monitoring of the production line. Its function is to present the operating parameters of core equipment and various alarm signals, shorten the diagnosis time in abnormal situations, and promote response. The module is the main human-computer interaction node, responsible for executing control logic such as parameter configuration, device start and stop. The module continuously monitors and precisely controls process variables. It is an important technical support for ensuring compliance with strict safety regulations and achieving the expected production goals.

Main specifications

Model Number	Allen Bradley 2711P-T10C15D1
Product Series	PanelView Plus
Product Type	Human-Machine Interface (HMI) / Operator Terminal
Display Type	Color (Active Matrix TFT)
Display Size (Diagonal)	10.4 inches
Display Resolution	640 x 480 pixels (VGA)
Communication	DH+ / DeviceNet (Built-in)
Input Type	Touchscreen (Analog Resistive)
Processor	400 MHz Intel XScale
RAM	64 MB
Flash Memory	64 MB
Internal Storage	64 MB (non-volatile)
Power Supply	24 V DC
Operating Temperature	0°C to +55°C (32°F to +131°F)
Dimensions (W x H x D)	286 mm x 223 mm x 71 mm (11.26 x 8.78 x 2.80 in)
Cutout Dimensions (W x H)	274 mm x 211 mm (10.79 x 8.31 in)
Weight	Approx. 2.0 kg (4.4 lbs)

Communication function

The Allen Bradley 2711P-T10C15D1 supports ControlNet, Ethernet, and RS-232 interfaces, which makes it easy to connect to a variety of industrial devices. It also provides two USB ports, which not only facilitate data transmission, but also provide expansion capabilities for connecting external devices. In terms of software compatibility, the 2711P-T10C15D1 terminal is compatible with FactoryTalk View Studio for Machine Edition or Enterprise Series software, which greatly facilitates users to customize and develop personalized human-machine interfaces to better meet specific application requirements.
