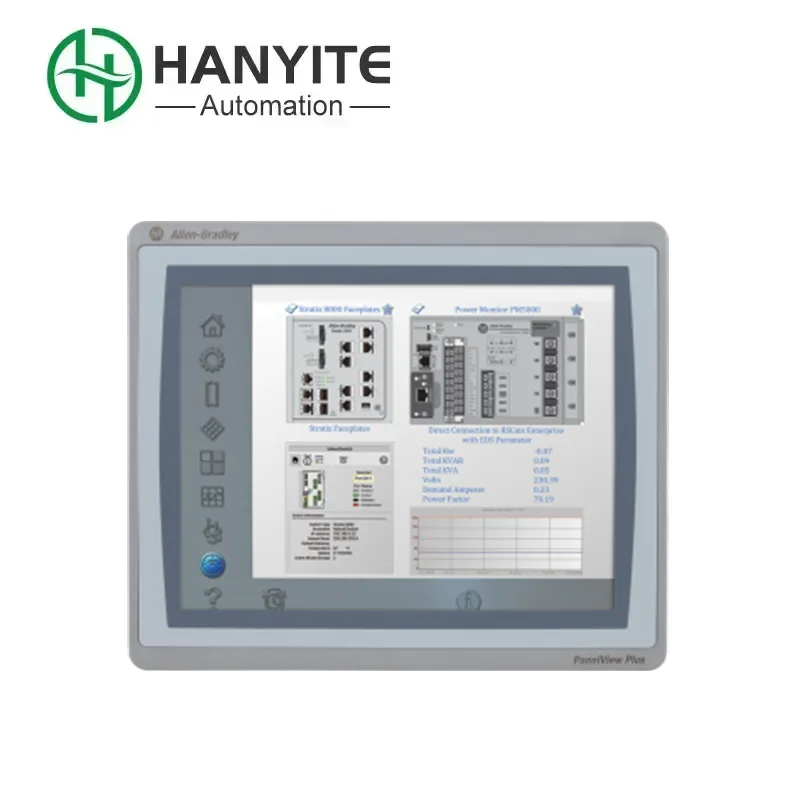

The Allen Bradley 2711P-T12W21D8S supplied by Hanyite is a 12-inch PanelView™Plus 6 high-performance touchscreen terminal, belonging to the human-machine interface (HMI) product series of AB Rockwell Automation. It uses a resistive touch screen, allowing operators to operate even when wearing industrial gloves, making it highly adaptable to on-site environments. The main body is a thick metal and plastic casing, and the front is a touchscreen protected by a metal frame. Its side or back integrates a power interface, communication interface and USB port, and is protected by a dust cover. The entire structure is compact, designed to be firmly embedded in the panel of the equipment, resisting oil stains, dust and vibration on site, and providing a safe protection for the internal electronic components.
The specific display specification of Allen Bradley 2711P-T12W21D8S is a 12.1-inch high-brightness display screen, supporting 18-bit color graphics, with a resolution of 1280×800 WXGA. Built-in resistive touch screen, driver lifespan up to 1 million clicks, and screen calibration support. Dual EtherNet ports, compatible with industrial protocols such as EtherNet/IP and ControlNet, and supporting various network topologies.
The Allen Bradley 2711P-T12W21D8S has no display upon startup. It might be caused by power failure, motherboard damage or loose screen connection cable. Please check the power adapter and perform a hardware reset. If the touch function malfunctions, please clean the screen surface or recalibrate the touch area. If the hardware is damaged, the touch panel may need to be replaced. If the system interface is abnormal, it is recommended to update the firmware or restore the factory Settings. If necessary, please contact Hanyite Automation Technology Co., LTD.
Choose Hanyite Automation. What you get is not just an Allen Bradley 2711P-T12W21D8S supplier, but a partner who understands technology, has experience, responds quickly and is reliable. We hope to be a reliable fulcrum for you in the field of automation in China and even around the world.
The modular sandwich structure, with a total thickness of 68 mm, requires only four screws for disassembly and assembly. The front panel meets IP66 protection, ensuring dust and water resistance. Equipped with a 1.6GHz dual-core processor and 2GB of RAM, it supports eight simultaneous monitoring windows without any lag. Spring-loaded terminal blocks allow manual connection of 16 I/O lines, three times faster than screw connections. Specifications:
Display: 12.1-inch WXGA (1280×800)
Brightness: 1000 nits (with automatic light sensor adjustment)
Touch lifespan: 1 million touches (resistive)
Storage: 2GB RAM + 8GB Flash
Certifications: CE / UL / RCM / KC
Power requirements: DC 18–30V wide-band input
Communication interfaces: IEEE 1588, 1 x RJ45 10/100MB (Auto-MDI/MDI-X) and USB
Product Process:
Confirm requirements → Receive a quote and receive technical support → Place order and payment → Warehouse quality inspection and packaging → Logistics delivery → Customer receipt and inspection
After-sales service: Product use → Warranty process initiated → Quick issue resolution → Customer satisfaction confirmation
