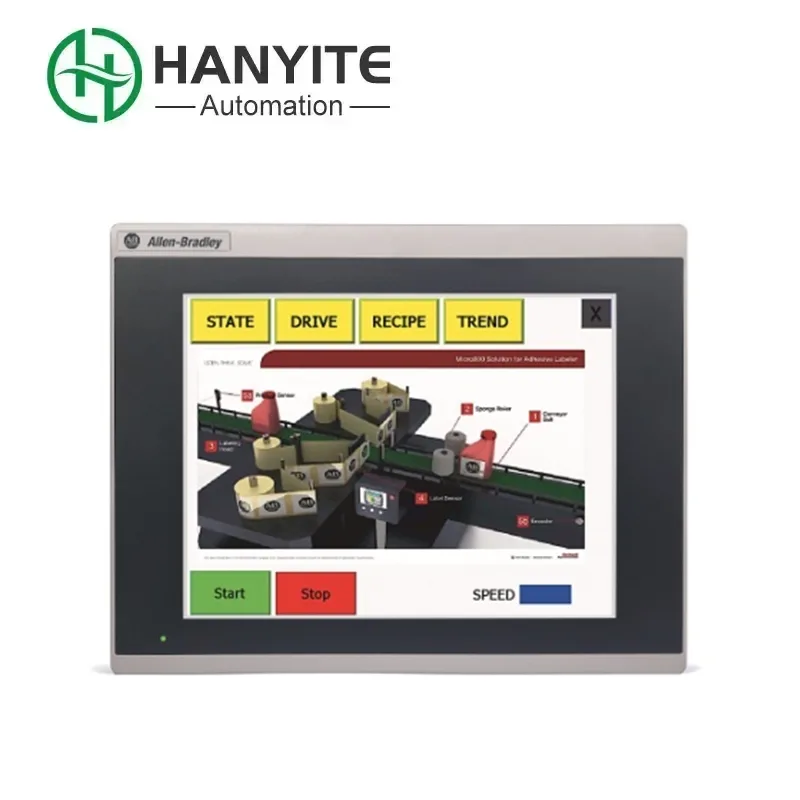

The Allen Bradley 2711R-T10T is a 10-inch color touchscreen terminal. Its task is to provide operators with a comprehensive and information-rich interactive interface beside the equipment or production line. Operators can monitor complex process flows, adjust production parameters, view historical trends and diagnose faults through it. Our company, Hanyite Automation Co., LTD., offers this product precisely to provide a robust and reliable interactive platform for those automation systems that require powerful on-site processing capabilities and rich display content.
The Allen Bradley 2711R-T10T is a 10.4-inch TFT touchscreen in 65K color, supporting both landscape and portrait display, and featuring dual input modes such as function keys and touchscreen. Built-in processor, high-resolution display, high-speed flash memory and dynamic memory, as well as replaceable real-time clock battery. The communication interfaces include network protocols such as EtherNet/IP and Modbus TCP, as well as serial ports RS-232 and RS-422/485, supporting two USB device ports, one USB host port and one microSD card slot. The panel has a protection grade of IP65 and is suitable for industrial environments. The input voltage is 24V and the operating temperature range is 0-50°C.
The Allen Bradley 2711R-T10T supports connection with Micro800, MicroLogix, CompactLogix 5370 and other series of controllers. CIP pass-through and bridging technologies optimize communication efficiency and can directly reference controller tags to simplify configuration. The built-in VNC server supports remote monitoring and configuration of the terminal. Supports password protection and port permission management to prevent unauthorized access. The products cover EtherNet/IP, Modbus TCP, Modbus RTU and serial communication (RS232/422/485), and are compatible with controllers and devices of different brands. Supports multi-language display and allows applications to be directly uploaded to the controller, simplifying project deployment. Diagnostic status indicators are helpful for troubleshooting.
The Allen Bradley 2711R-T10T are all occasions that require a medium-sized screen and rich functions. For instance, a local monitoring station on a medium-sized production line, displaying the detailed status of the equipment in that area; Complex single-machine equipment such as packaging machines and filling machines, used for setting process parameters and monitoring the operation process; The sub-control panel of the building automation system, monitoring subsystems such as air conditioning and lighting; The operation terminal of water treatment or environmental protection equipment.
