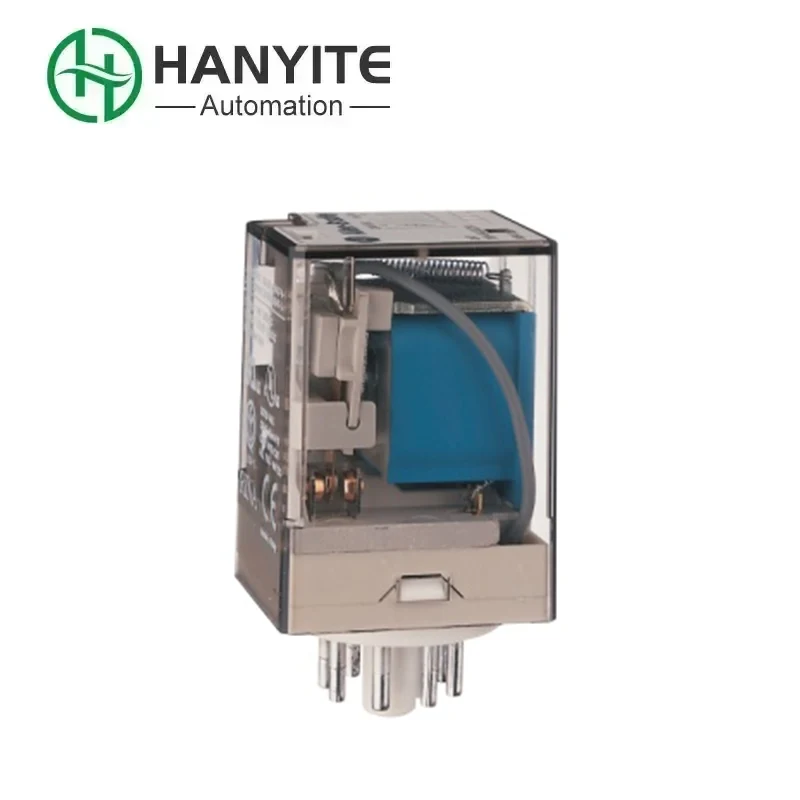

The Allen Bradley 700-HAX2A1 series relays recommended by Hannett are general-purpose relays manufactured by Allen Bradley. 700-HAX2A1 is a specific model within this series. The 700 series relays are widely used in industrial automation and control, covering numerous industries such as food processing, automotive manufacturing, and power generation, and are highly praised by users.
|
Model Number |
Allen Bradley 700-HAX2A1 |
|
Number of Contacts |
2 (as change-over contact) |
|
Nominal Current |
6 A |
|
Rated Thermal Current (Ith) |
6A @ 240V AC |
|
Voltage Type for Actuating |
AC |
|
Rated Control Supply Voltage (AC 50 Hz) |
120 V |
|
Rated Control Supply Voltage (AC 60 Hz) |
120 V |
|
Rated Control Supply Voltage (DC) |
0 V |
|
Type of Electrical Connection |
Plug-in Connection |
|
Electrical Life Cycle |
100,000 minimum |
|
Complete with Socket |
False |
|
With LED Indication |
False |
|
Model |
Manufacturer |
Functional Description |
|
700-HAX2A12 |
ALLEN BRADLEY |
General-purpose relays |
|
700-HAX2Z1 |
ALLEN BRADLEY |
Products in the same series |
|
700-HAX2A1-4 |
AB Rockwell |
Relay |
The Allen Bradley 700-HAX2A1 is used in industrial motor control for speed control of fans, pumps, and compressors, enabling seamless start-up and equipment protection. In conveyor belt systems, it regulates the speed of material transport on production lines, improving efficiency. In HVAC systems, it drives motors for air conditioning and ventilation equipment, reducing energy consumption.
AB 700 series devices including Allen Bradley 700-HAX2A1 are primarily used in industrial automation control applications such as frequency converters and dispensing machines. Industrial equipment maintenance typically involves cleaning, lubrication, electrical inspection and software calibration to ensure long-term stable operation. Technicians should strictly follow the manufacturer's maintenance and care instructions.
|
Maintenance cycle |
Maintenance items |
Contents |
|
daily |
cleaning equipment |
Operators can use dry cloth or soft brush to remove dust and keep the appearance of the equipment and the workbench clean. |
|
Weekly/Monthly |
Lubrication parts |
Technicians lubricate the guide rails, lead screws and other moving parts with grease (such as OKS422) |
|
Monthly |
Heat dissipation check |
Staff should clean the fan and dust screen to ensure the normal operation of the cooling system |
|
quarterly |
Calibration and inspection |
Technicians need to calibrate the lighting grayscale value, check grounding, data backup, etc. |
|
Irregular |
Troubleshooting |
If the equipment is abnormal, professional maintenance is required according to the instructions |
