The Siemens 6ES7590‑5CA10‑0XA0 is a shielding set designed to support robust and reliable performance in automation systems, especially when using SIMATIC S7‑1500 PLC hardware. This shielding kit helps reduce electromagnetic interference and improves signal integrity, making it a crucial accessory for industrial control installations.

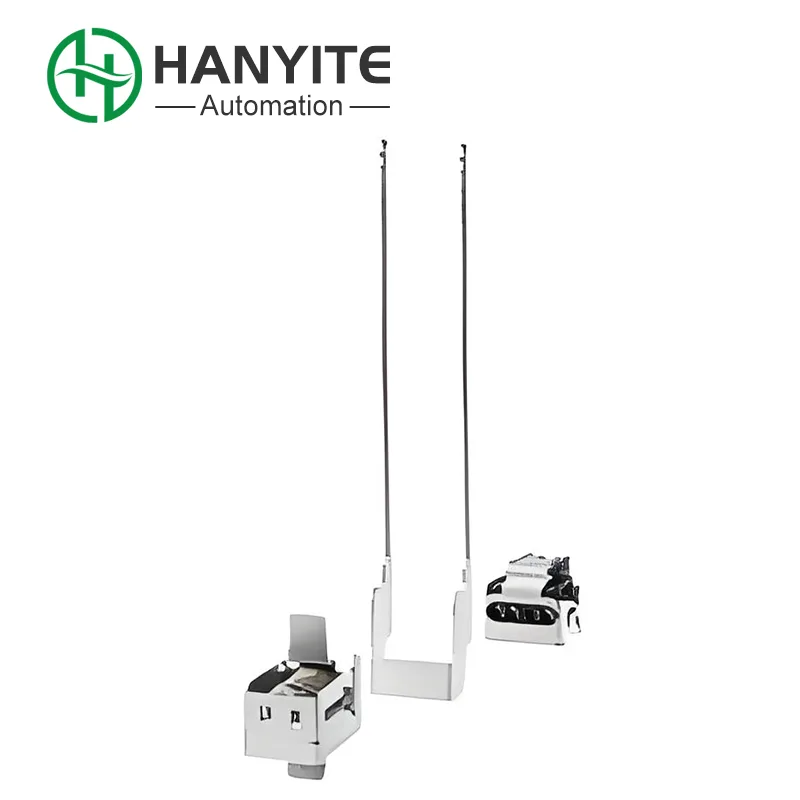

The 6ES7590‑5CA10‑0XA0 part number refers to a spare‑parts shielding set from Siemens for the SIMATIC S7‑1500 series. This kit typically includes multiple shield connection clamps, shielding brackets, and 24 V DC infeed elements using push‑in technology, which are suitable for analog modules, technology modules, and compact CPUs with 25 mm wide front connectors.
| Attribute | Detail |
|---|---|
| Product | |
| Type | Shielding set / Spare part |
| For Use With | SIMATIC S7‑1500 PLC modules |
| Includes | Shield clamps, shielding brackets, 24 V DC infeed elements |
| Application | EMI shielding and improved signal integrity |
| Origin | Germany |
The S7‑1500 family from Siemens comprises CPUs, power supply units, I/O modules, and accessories for modular industrial control systems. The 6ES7590‑5CA10‑0XA0 integrates at the physical connection points to provide enhanced shielding where digital and analog modules meet external wiring or other electronics. This helps the entire system comply with electromagnetic compatibility requirements.
In industrial environments, electromagnetic interference (EMI) from motors, welders, variable frequency drives, and other equipment can cause noise in PLC signals. Proper shielding with kits like the 6ES7590‑5CA10‑0XA0 helps:
Without proper shielding, PLC systems may experience erroneous readings, communication issues, or even system faults under heavy interference conditions.
This shielding set is designed for analog modules, technology modules, and compact CPUs in the S7‑1500 series with 25 mm front connectors. It is a versatile accessory that supports enhanced wiring discipline across multiple module types in the S7‑1500 ecosystem.
Installation of a shielding set typically occurs at the physical interface where the module connectors meet the PLC rack or terminal plate:
For step‑by‑step instructions, always refer to the official Siemens installation manual or reach out to an authorized systems integrator such as Hanyite Automation Technology Co., Ltd. for guidance.
| Part Number | Description | Use Case |
|---|---|---|
| Shielding Set | EMI protection and improved signal integrity | |
| Alternative shielding accessories | General enclosure shielding | |
| Grounding/earth element | Provides ground references |
Each accessory serves a unique function in maintaining a reliable automation system. The shielding set (6ES7590‑5CA10‑0XA0) specifically focuses on electromagnetic protection.
Q: What exactly does the Siemens 6ES7590‑5CA10‑0XA0 contain?
A: This shielding kit contains multiple shield connection clamps, brackets, and 24 V DC feed elements designed for SIMATIC S7‑1500 modules with 25 mm front connectors.
Q: How does this shielding set improve my PLC’s performance?
A: By reducing electromagnetic interference around sensitive connectors, it helps maintain signal integrity and minimizes false readings or data noise in analog and technology modules.
Q: Can I use this part with any PLC system?
A: It’s specifically designed for Siemens SIMATIC S7‑1500 series controllers and compatible modules with 25 mm front connectors. Compatibility with other PLC families isn’t guaranteed without consulting Siemens documentation.
Q: Does this shielding set require professional installation?
A: While skilled technicians can install it, following Siemens official instructions or working with automation specialists such as Hanyite Automation Technology Co., Ltd. ensures correct implementation and compliance with EMC standards.
Q: Where can I buy the Siemens 6ES7590‑5CA10‑0XA0?
A: You can source it through industrial automation suppliers such as Automation Warehouse, nexinstrument.com, or Zoro, depending on availability and pricing. Certain listings may include warranty support.
