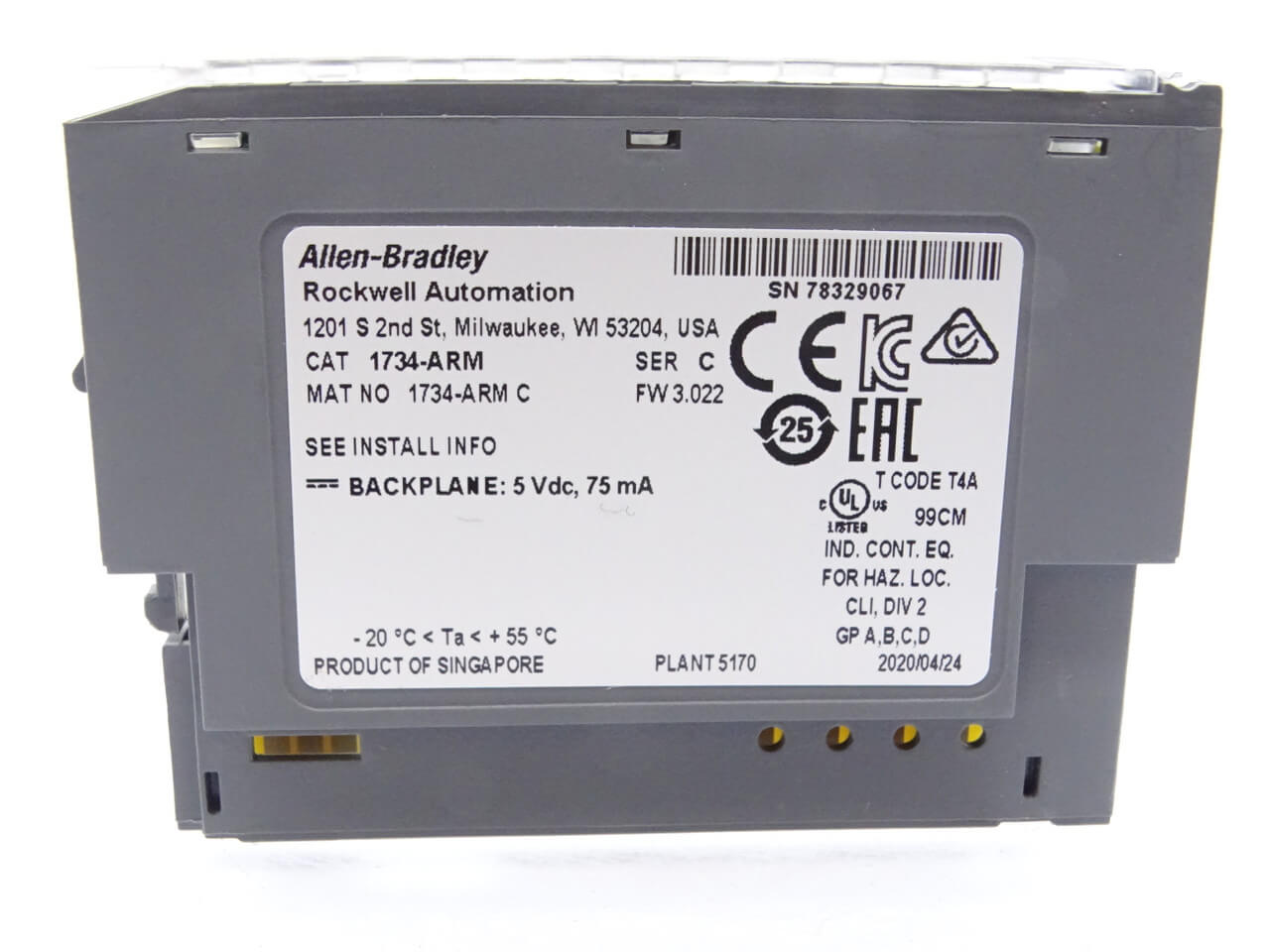

Allen Bradley 1734-ARM

Replacing damaged nodes in a distributed IO station is prone to cause address offset. The Allen Bradley 1734-ARM addresses this problem by relying on an embedded retention mechanism. The device is powered by 24V DC and communicates via the PointBus backplane. Compared to the inefficient operation of traditional replacement where the program needs to be reloaded and the entire station needs to be reset, it can directly write back the original configuration data, eliminating the waiting time for the controller to re-download. Hanyite Automation Technology connects with the original factory suppliers to ensure the Buy channel. The current batch is brand new and ensures immediate response for online maintenance of the electrical cabinet and a smooth transition without production halt.

Physical Specifications

Efficiency Enhancement

When replacing a damaged module on-site, the board configuration parameters are automatically rewritten, significantly shortening the waiting period for system restart and verification.

During maintenance operations, locking the key I/O mapping addresses effectively prevents accidental shutdown incidents caused by improper operations.

Deploying Allen Bradley 1734-ARM eliminates the need for re-downloading programs after replacing the on-site nodes, directly improving the efficiency of power-on and operation of the production line.

Compatibility and Integration

Under the distributed POINT I/O architecture, this module is natively compatible with mainstream bus protocols such as DeviceNet, and integrates directly into the ControlLogix or CompactLogix control system through the backplane bus. Its hardware design allows for direct mapping in the Studio 5000 project tree as a reserved node, without the need to write additional gateway scripts or underlying logic conversion codes. The plug-and-play feature of Allen Bradley 1734-ARM completely avoids the risk of full-system reconfiguration during node expansion and module replacement in outdated production lines, ensuring seamless integration of heterogeneous networks.

Human-computer interaction

The front panel of the module adopts a menu-less design. Maintenance personnel do not need to flip through the LCD screen to look up parameters. They can directly set the address retention mode by relying on the physical touch of the dip switch. The dual-color LED indicator light embedded above the panel independently presents the node communication status and configuration lock logic. When the hardware enters a protected state, it automatically switches to alternating red and green flashes. This visual and tactile dual feedback mechanism of Allen Bradley 1734-ARM ensures the accurate issuance of operation instructions and the immediate identification of equipment status in a strong noise interference environment.
