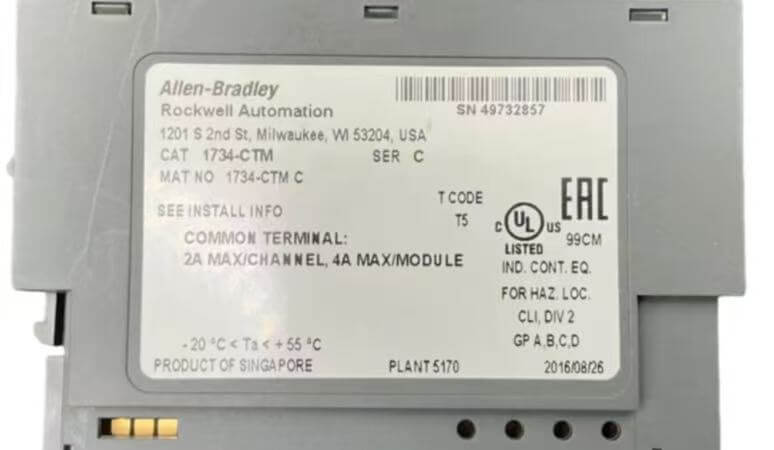

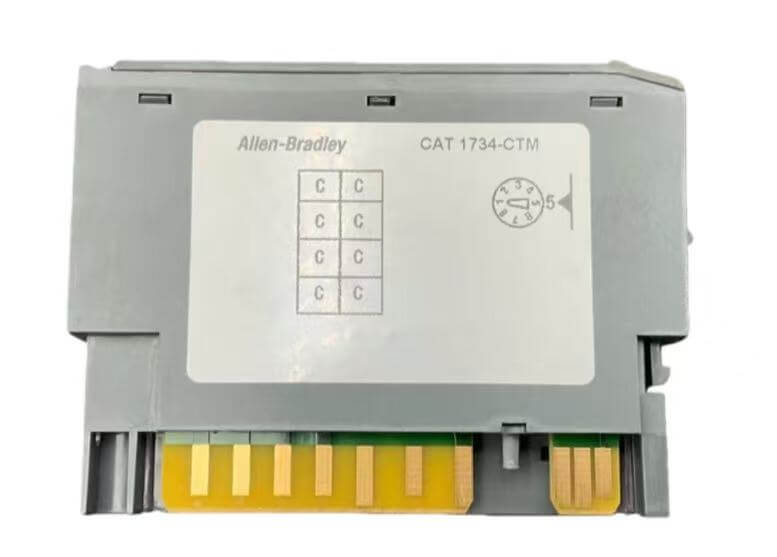

Allen Bradley 1734-CTM is a CT module specifically designed for industrial automation sites. It is compatible with distributed IO systems and fieldbus networks, operates on 24V DC power supply, has compact and reliable interfaces, and is more convenient to install and easier to maintain compared to traditional discrete solutions. Verified by Hanyite Automation Technology, it can be combined with authorized suppliers to obtain brand new resources, providing stable hardware support for on-site debugging and fault troubleshooting.
The modular base design allows for hot-swappable operations while the system is running. The replacement of the Allen Bradley 1734-CTM can be completed while the system is in operation. The direct plug-in terminal block eliminates the cumbersome steps of traditional screw fastening. The hand-tightening latch structure makes on-site wiring and disassembly more effortless. The operation status of the channels can be quickly mapped by the running and fault indicator lights arranged on the front panel. Daily inspection personnel can directly determine the working condition of the module without the need for diagnostic tools. This maintenance mechanism without downtime effectively reduces the equipment maintenance window period.
This device is natively compatible with the Logix control system architecture. It realizes high-speed data interaction with the upper-level controller based on the EtherNet/IP industrial Ethernet protocol. The Allen Bradley 1734-CTM can be directly called with predefined tags in the Studio 5000 configuration environment. No additional writing of underlying communication driver code is required. The module supports mixed installation with other signal type nodes of the same series. It can flexibly expand the IO scale in distributed remote station networking. This plug-and-play integration feature significantly reduces the cost of fieldbus mapping and system debugging.
The Allen Bradley 1734-CTM overcomes temperature sampling jumps caused by strong electromagnetic interference in the field.
Eliminates millivolt-level attenuation distortion caused by long-distance analog signal transmission.
Solves the selection difficulties caused by mixed connection of multiple types of thermocouples and thermistors.
Avoids systematic deviations in the temperature measurement caused by the drift of compensation components in the cold end.
Eliminates the production halt hazard caused by single-channel short-circuit faults in the entire base.
Avoids poor heat dissipation caused by traditional dense wiring in the narrow electrical control cabinet space.
Support for multiple types of thermocouples and millivolt signals for direct connection
Provide 16-bit high-resolution analog sampling capability
Internal integrated cold junction compensation sensor to ensure temperature measurement accuracy
Have channel-level anti-interference digital filtering function
Support engineering unit calibration and linearization processing
Module and base electrical isolation to enhance anti-interference performance
