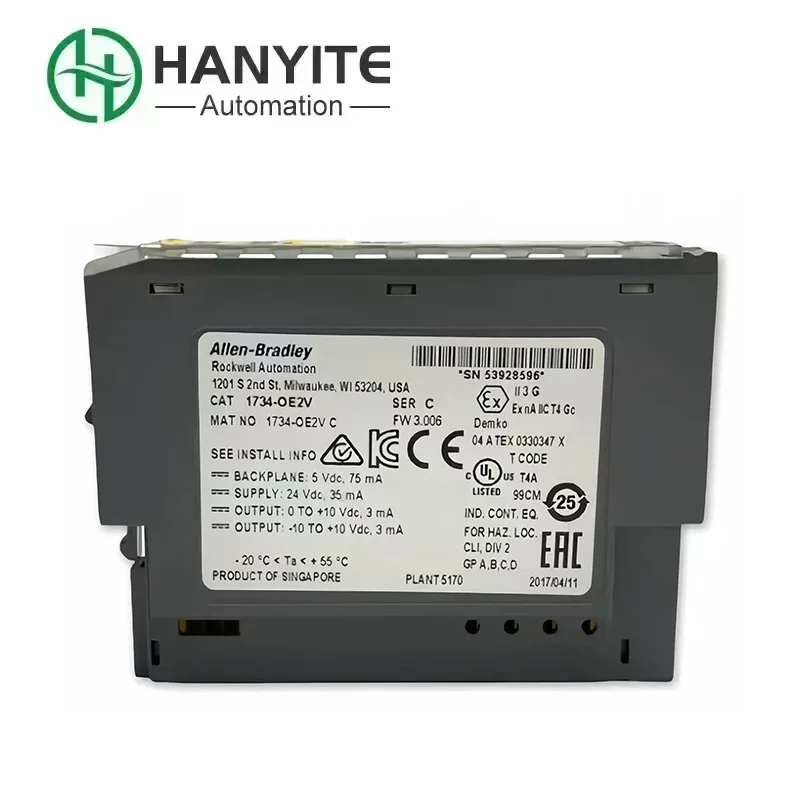

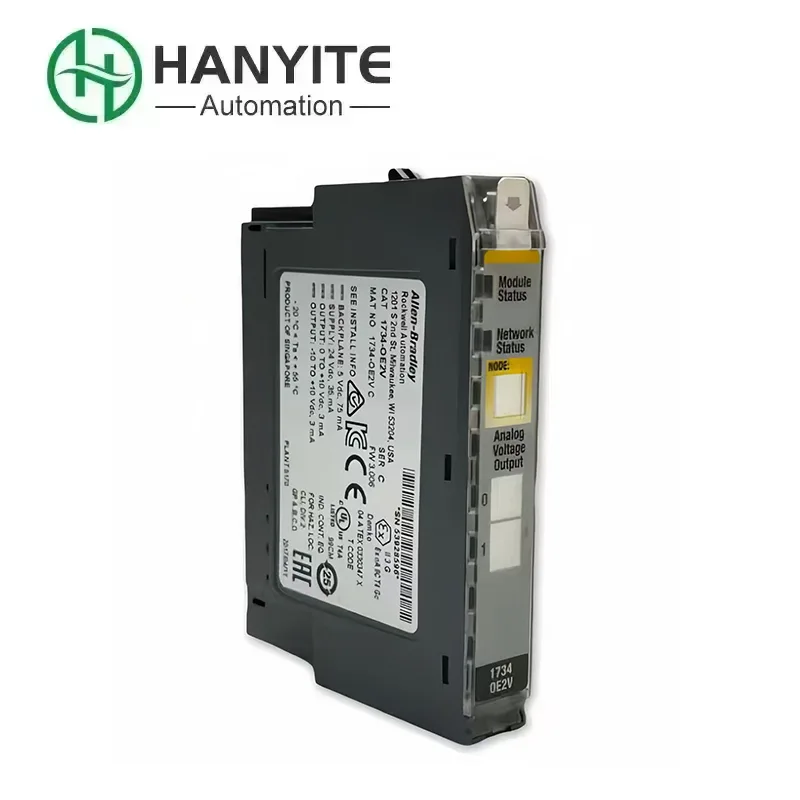

Allen Bradley 1734-OE2V

When we buy automation modules from the suppliers, we must ensure that they are genuine and brand new, especially for key components like Allen Bradley 1734-OE2V. Imagine it as a "voltage tuner" in our control system. It doesn't produce music (signals) by itself, but it can very precisely convert the digital instructions sent by the PLC (the brain) into continuous and smooth voltage signals (usually 0-10V). For example, if you want to make a frequency converter control the motor to run faster or slower, or want to open a valve wider or narrower, you have to rely on it to precisely output this "command" voltage. Its "V" represents voltage (Voltage), and it is its main strength.

Addressing the pain points

Before Allen Bradley 1734-OE2V was not available or when it was used improperly, there were many problems. For instance, using simple on-off signals to control the motor would either make it run at full speed or stop completely, like a fool, which was not energy-efficient at all and also caused equipment damage. Or, using analog signals but with inaccurate modules, if you asked it to turn 50%, it might actually turn to 55%, resulting in inconsistent product quality. The 1734-OE2V solves these problems of "coarse control" and "inaccurate signals", making the control more precise, stable, and predictable.

Advantage of Quality Control

The Allen Bradley 1734-OE2V’s greatest advantage lies in its "stability" and "accuracy". On the production line, many process parameters, such as temperature, pressure, flow rate, and speed, need to be precisely controlled. With OE2V, the PLC can fine-tune the actuators like an experienced master. For example, when filling beverages, it can precisely control the opening speed and degree of the liquid valve to ensure that the liquid level of each bottle is exactly the same. In the textile industry, it can precisely control the winding speed to ensure constant yarn tension, and the fabric will not be uneven in tightness. This high-precision analog output is the key to ensuring product consistency and qualification rate.

Compatibility and Integration

This little device is a member of the Rockwell Point I/O family. The biggest advantage is its flexibility and cost-effectiveness. It doesn't have to be cramped next to those large racks. You can install it directly next to the equipment, very close to the motor or valve that needs control, saving a lot of cables. It is part of our entire ControlLogix or CompactLogix system and integrates very conveniently. Just configure it in the programming software, and it will act obediently like other modules in the system, plug-and-play, saving time and effort. It is also very simple to expand, simply add another module wherever you need to add one more control. It is very convenient.

Product flowchart

The PLC controller (the brain) issues digital instructions

Transmitted through the system backplane bus

Allen Bradley 1734-OE2V module receives the digital instructions

Internal digital-to-analog conversion (DAC) processing

Outputs precise analog voltage signals (such as 0-10V)

Connected via signal cables

Field execution devices (such as frequency converters, electric valves, servo drives)

The execution devices act precisely according to the voltage signals (such as adjusting the motor speed, changing the valve opening)
