OK, no problem! As your professional supplier, Hanyite Automation Technology guarantees that every Allen Bradley 1746-HSTP1 unit we provide is an original, brand-new one. To put it simply, this thing is like a "motion expert" plugged into your SLC 500 PLC. Usually, your PLC acts as the overall commander, overseeing tasks like lighting and valves for the entire factory. But if it were to take on tasks like "threading and guiding" that require precision, it would be at a loss. That's where it comes in. It's like a professional special forces soldier. The PLC boss just gives an order, "Bring that thing over," and it handles all the details itself, commanding the motor to complete the task quickly, accurately, and stably, allowing the PLC to focus on other tasks. If you are planning to buy this module to upgrade your equipment, now is the best time!

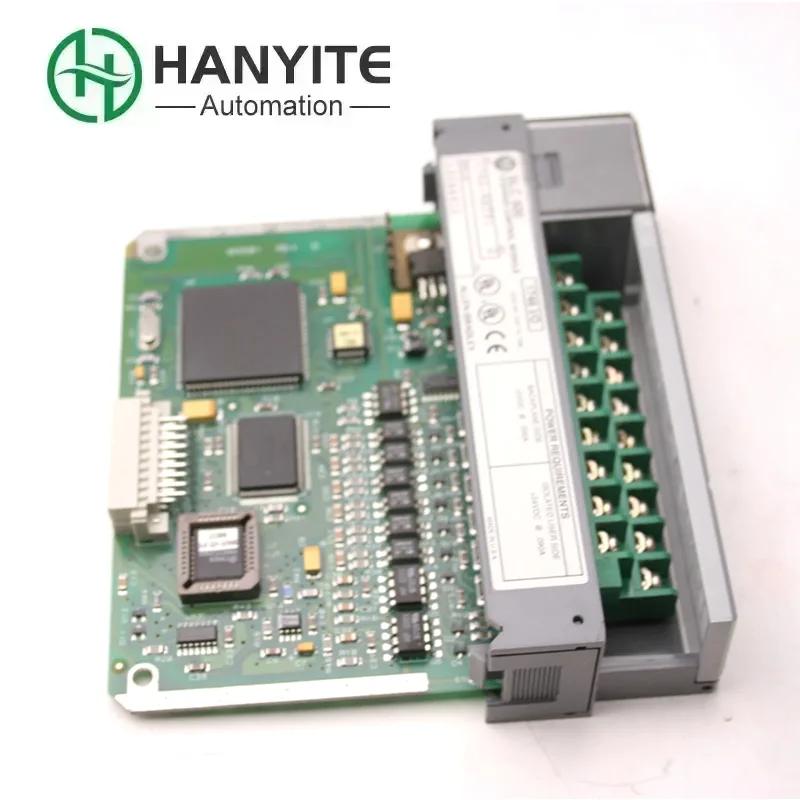

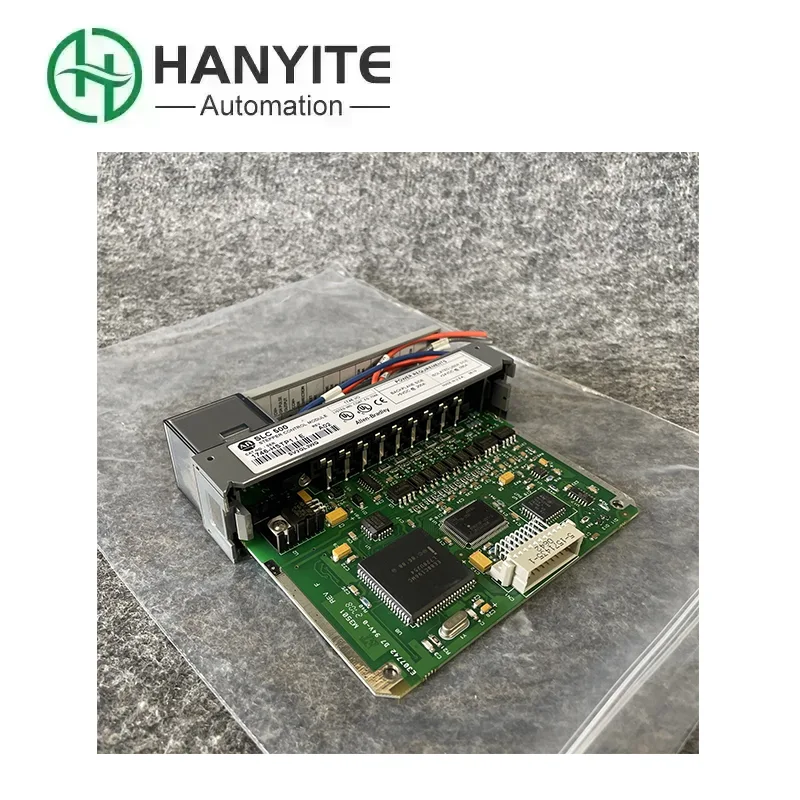

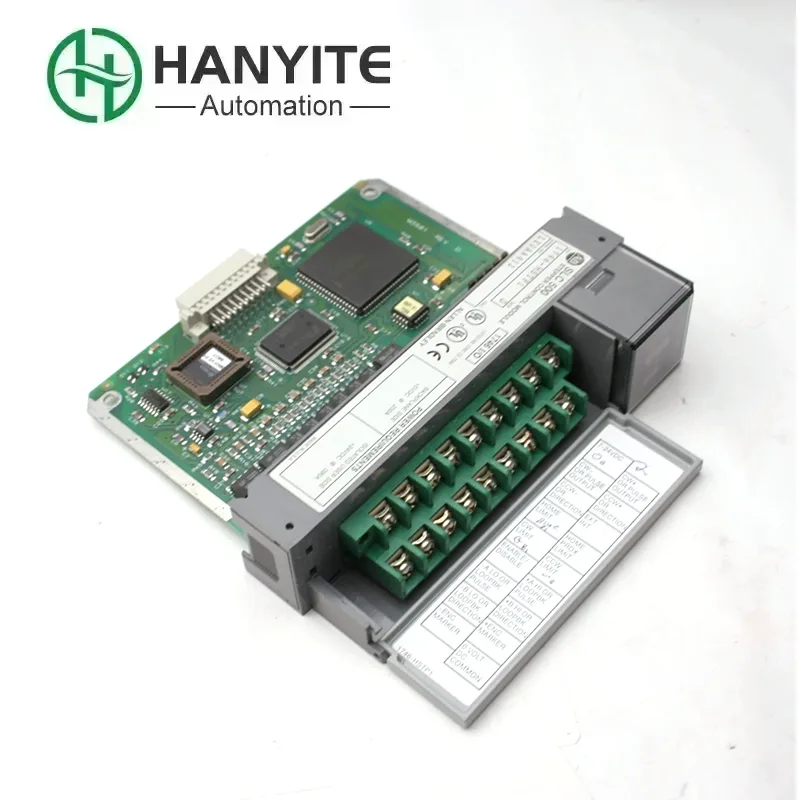

The Allen Bradley 1746-HSTP1 looks similar to other SLC modules - just a metal box plugged into the rack. But all the functionality lies in the interface. It communicates quietly with the PLC CPU via the back panel. On the front, there is a dense 50-pin interface, which is its "mouth" and is specifically used to issue commands to the motor driver, such as "walk how many steps and in which direction". There are also several small openings nearby, which are used to connect limit switches (to prevent the motor from "colliding with the wall"), origin switches (to let it know "where home is") and emergency stop buttons, ensuring that the operation goes smoothly without any accidents.
The core function of this device is to "enable the motor to understand human speech and perform flawlessly". You don't need to painstakingly calculate each pulse anymore. Just use its built-in simple instructions, such as "go to point A" and "make a circular path", and it can handle all the complex calculations by itself, allowing the motor to follow a smooth path, start and stop smoothly like silk, without any "jerk". Moreover, it can also be used for dual purposes. With just one card, it can command two axes simultaneously, enabling them to work perfectly together and handle more complex tasks.
The biggest headache the Allen Bradley 1746-HSTP1 can solve is "ease of use and high efficiency". Before it existed, either the PLC CPU was exhausted from handling motion calculations, causing the entire system to slow down; or the motor moved in jerky, repetitive motions, like "Parkinson's disease", with the machine breaking down quickly and generating a lot of noise. Now with it, all the work related to motion calculations is taken care of, the PLC is relieved, the motor movements are smooth, programming is as simple as building with blocks, and there's no need to worry about debugging motion control anymore.
The Allen Bradley 1746-HSTP1’s "team-building" rule is very simple: stick with Rockwell, make friends all over the world. It was originally designed for the SLC 500 PLC and RSLogix 500 programming software, and these three are a fixed "triumvirate". However, it is also very open to the outside world. As long as your motor driver can understand the universal language of "pulse + direction", regardless of whether it is a stepper or servo from any brand, it can be controlled by it, and upgrading and modifying old equipment is particularly convenient.
Q1. How fast can this thing make the motor rotate?
A: It can reach a maximum frequency of 250 kHz. Exactly how fast it can go depends on the efficiency of your motor and driver.
Q2. I want to control 4 axes. What should I do?
A: One card can only control 2 axes. Want to control 4? Simple, just plug another card onto the rack, and the two "brains" will work together!
Q3. Is programming difficult? I'm a newbie.
A: Not difficult! In RSLogix 500, it's the same as dragging ordinary modules. Use a few ready-made instructions (like MA is for movement), fill in the position and speed, and it's very intuitive.
