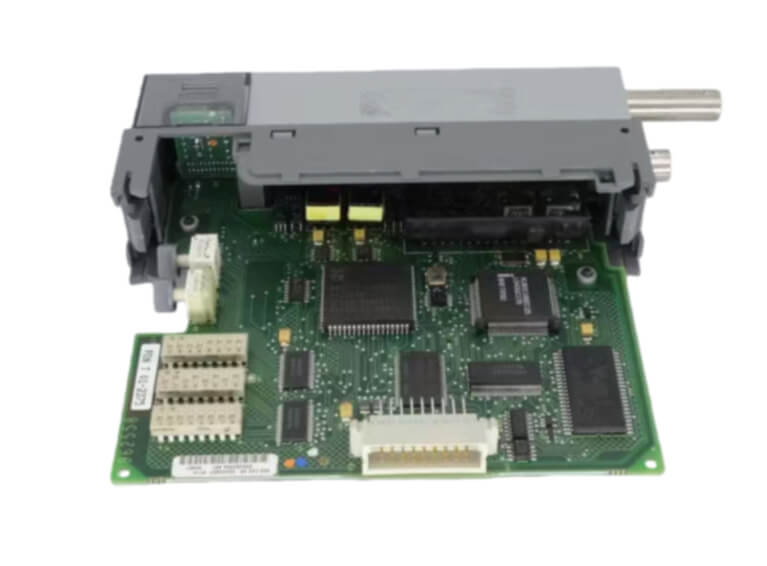

The Allen Bradley 1747-KFC15 is an industrial communication conversion module specifically designed for SLC 500 PLC. In simple terms, it is like a bridge that enables the controller to connect to the ControlNet high-speed network. In modern factories, it helps old systems "upgrade" and smoothly integrate into the new architecture, enabling data transmission and remote monitoring. If you want to purchase this module, contact Hanyite Automation Technology. We have all the original and brand-new products here, and the inventory is sufficient. If you happen to have a need, simply contact us. The quality is reliable, ensuring that you can buy with peace of mind.
The core function of the Allen Bradley 1747-KFC15 is to establish a data bridge between the SLC 500 controller and the ControlNet network. It can convert the data from the SLC 5/03, 5/04 or 5/05 processors into a format that the ControlNet network can recognize and send it out. At the same time, it can also receive data from other devices on the network and send it back to the SLC for processing. This is equivalent to equipping the SLC 500 controller with a "high-speed network card", enabling it to conduct real-time data exchange and interlock control with more advanced control systems, such as controllers from the Logix series, or upper-level software (such as RSLogix 5000/Studio 5000).
It primarily addresses the challenges of "difficult networking" and "information silos" for older equipment. Many factories still use a large number of SLC 500 controllers, but these older models only have serial or DH+ Ethernet ports, resulting in slow data transmission and difficulty in connecting to mainstream Ethernet or ControlNet high-speed networks. Replacing the entire SLC system with a new one for networking would be too costly and wasteful. With the Allen Bradley 1747-KFC15, there's no need to replace the main unit; simply adding a module allows the older system to connect to a high-speed network, preserving the original equipment investment while establishing a communication link.
By using the Allen Bradley 1747-KFC15, the efficiency of data transmission can be significantly enhanced. Previously, data was transmitted via serial ports or old-fashioned networks, which was slow and prone to packet loss. Now, by connecting to ControlNet, the data throughput is high and the real-time performance is extremely strong. Operators can view the status of the SLC 500 in the upper computer in real time, without having to go to the site to check. At the same time, because the network speed has increased, the coordination control between controllers has become more closely integrated, reducing waiting time and making the response speed of the entire production line faster. As a result, the production rhythm n
| Compatible Series: | Specifically designed for the Allen-Bradley SLC 500 PLC system. |
| Communication Protocol: | Supports the ControlNet communication protocol. |
| Port Quantity: | The module body is typically equipped with a ControlNet network interface (achieved through an adapter). |
| Communication Rate: | Supports the standard ControlNet communication rate (typically 5Mbps). |
| Installation Method: | Designed to be installed in the I/O slot of the SLC 500's 1746 rack or expansion rack. |
| Operating Voltage: | Powered by the SLC 500 rack backplane, with current consumption meeting the module specification standards. |
| Physical Size: | Dimensions are consistent with those of a standard single-slot wide SLC 500 I/O module. |
| Operating Environment: | Meets industrial-grade standards and can operate in an environmental temperature range of 0 to 60 degrees Celsius. |
