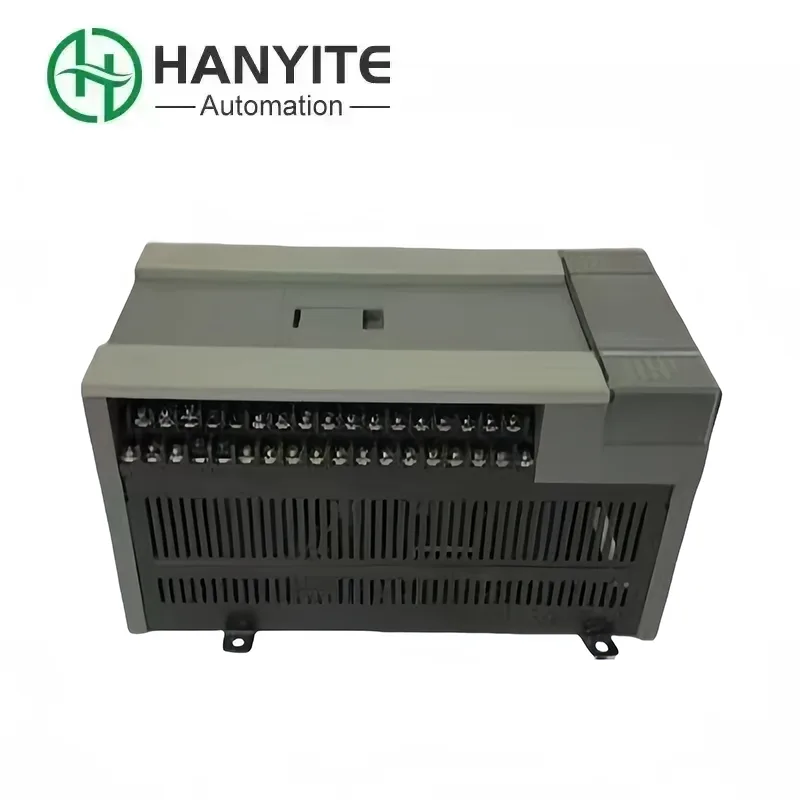

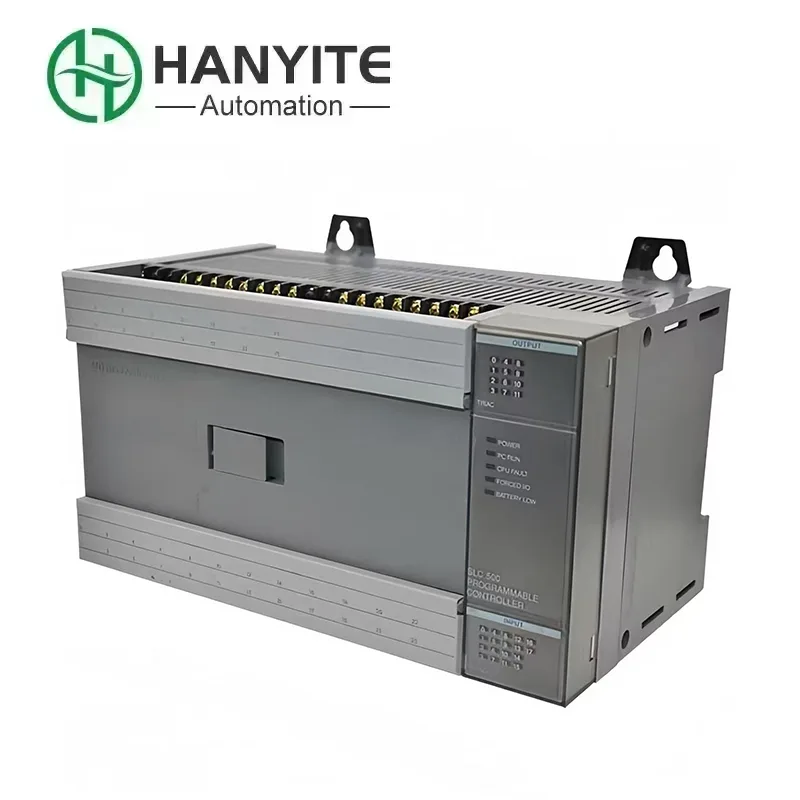

Imaginethe Allen Bradley 1747-L30B as a "compact industrial computer" within the Rockwell SLC 500 family. It is not large in size, but it works efficiently and is a sturdy and durable "hardworking ox". Its main task is to receive signals from various switches and sensors, and then, according to the "script" you have prepared, to direct the "actors" such as motors and valves to perform their tasks. For those small devices with few control points but requiring exceptional stability, it is the best choice of the "cheaper yet generous" option. As a classic product of the Rockwell brand, we guarantee that all the delivered products are original, brand-new, and genuine. Moreover, we can provide program customization services based on your equipment requirements. The most crucial point is - it's available now! If you need it, you can contact us at any time.
1.What the Allen Bradley 1747-L30B excels at the most is logical reasoning. For instance, "Only when both switch A and switch B are pressed will the C motor start rotating". Such "if... then..." situations, it can handle without even having to think.
2.It is also a "timer" and a "counter". It can make the motor rotate for 10 seconds and then stop, and it can also count the number of products on the conveyor belt for you without making any mistakes.
3.Occasionally, it also takes on the role of an "accountant". It can perform simple arithmetic operations like addition, subtraction, multiplication, and division. It can also help you process data such as temperature and pressure to check if they are within the normal range.
4.Finally, it is also a "tongue-tied person". It can communicate through the communication port with the touch screen, computer, or other PLCs, making it convenient for you to see how the workshop equipment is doing in the office.
Firstly, Allen Bradley 1747-L30B never gets tired and can handle all the repetitive and boring tasks. These tasks are all handed over to it. The workers are liberated and can engage in more technically demanding work.
Secondly, it can help you reduce downtime due to malfunctions. It works mechanically and as long as the program is correct, it won't make mistakes like humans do. In case of an actual problem, its alarm light will come on and the maintenance staff will immediately know which part is faulty, avoiding the time-consuming process of searching for the problem.
Finally, it can ensure stable product quality like a seasoned dog. The machine works without emotions and always performs the same way. This ensures that every product you produce has similar quality, significantly reducing the defect rate.
|
Family: |
Allen-Bradley SLC 500 |
|
Memory: |
16 KB (currently it's indeed small, but it's sufficient for simple tasks) |
|
Communication Ports: |
Comes with two, one is DH-485 (for chatting with its own brothers), and the other is RS-232 (can connect to computers or other devices) |
|
Number of Controlled Points: |
Can control up to 4096 points (but many expansion modules need to be added) |
|
Built-in Slots: |
3 (can accommodate digital and analog small plugs) |
|
Response Speed: |
Running 1000 instructions takes approximately 2 milliseconds (for switch quantity control, this speed is sufficient) |
|
Memory Function: |
Has a small battery, so the program won't be lost even if there is a power outage |
|
Power Supply: |
There are both AC 220V and DC 24V options, depending on the specific model |
Q1. What software should be used to write the program for it?
A: Just use the classic RSLogix 500. Although this software is a bit outdated, the Allen Bradley 1747-L30B is a perfect match for this PLC and very stable.
Q2. Can it access the internet? Can it connect to the current new devices?
A: It doesn't have an internet port on its own. But you can add a small "translator", called 1761-NET-ENI module, so that it can speak "internet language" (Ethernet) and be able to communicate with some new devices that support Modbus TCP.
Q3. If this part on my equipment is broken, should I repair it or replace it with a new one?
A: This depends on the situation. If your production line is running well and you don't want to change the program and wiring, then you can simply buy a model of the same type and replace it, which is the fastest and most convenient way. If the equipment is very important and the spare parts can't be found, then you may have to consider upgrading to the new CompactLogix platform. But that would involve a large amount of work, as the program and wiring would have to be redone.
