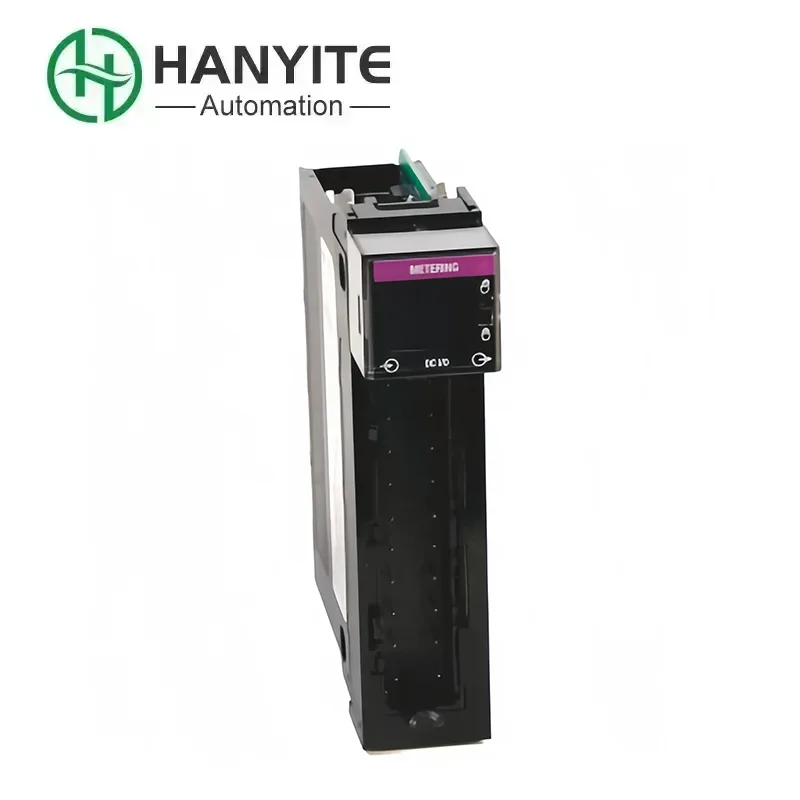

Allen Bradley 1756-CFM

If you want to upgrade the equipment in the factory and purchase the ControlLogix system from the supplier, be sure to ask if it is in stock and ensure that it is the original version. Why? Because there is a "flow statistics expert" called Allen Bradley 1756-CFM in the system, and it is a crucial role. It is not a sensor itself, but it is particularly good at "listening" to the signals from the sensors. As products pass one by one on the production line, photoelectric switches give it signals "tick, tick". CFM is specifically responsible for receiving these "tick" sounds and then quickly and accurately counting them. It can not only calculate the total number, but also calculate the speed and the production volume per minute. It is like an "intelligent dashboard" on the production line, providing you with the most critical flow information in real time.

Core function

1.The Allen Bradley 1756-CFM can perform rapid and accurate counting of the processed products, ensuring that not a single one is missed or counted wrongly.

2. It can calculate the current speed of the production line in real time, allowing you to have a clear understanding of the production rhythm.

3. It can also measure the frequency of the signal, just like equipping the machine with a heart rate monitor, enabling continuous monitoring of the rotational speed.

4. It can pack according to the batch size you have set. For example, it will automatically notify for a box change when 50 units have been counted.

Efficiency improvement

The greatest efficiency improvement lies in liberating the PLC.Think about it, without CFM, having the PLC's CPU directly handle these high-speed, continuous counting signals, like asking a CEO to answer the phone at the front desk, would seriously affect his ability to handle more important matters. CFM is like a capable front desk clerk who finishes all the counting tasks and only reports the final results to the CEO (PLC). In this way, the PLC can free up its energy to handle more complex tasks, and the overall system's operation speed and response capability will naturally be greatly enhanced.

Product structure

Typical application scenarios

1.You can think of Allen Bradley 1756-CFM as a cashier on an assembly line. On a production line of bottled water, it stands by and watches as the bottles pass by one after another. Mentally, it counts "1, 2, 3..." and when it reaches 24, it gives a "ding" sound and tells the adjacent mechanical arm: "This box is ready. Pack it up!"

2.It can also be the metronome of a machine. Just like a conductor controlling the rhythm in a band, in a high-speed running printing machine, it constantly monitors the speed at which the paper moves. If the rhythm gets out of sync, too fast or too slow, it immediately shouts "Stop" to prevent any major problems.

3.It can also act as a bookkeeper for the warehouse. For example, in an automatic warehouse, as goods come in and out, it is responsible for recording. Every time a piece of goods comes in, it records a line, and every time a piece of goods leaves, it crosses out a line, making the inventory number in the system exactly the same as the actual one.

4.In the filling workshop, it is the most impartial judge. For instance, when filling a batch of lubricating oil, it keeps an eye on the filling head, ensuring that the amount is just right, exactly filling 1000 barrels and then shouting "Stop", never letting the customers be cheated or the factory waste resources.

5.Finally, it can also act as a safety sentinel for the equipment. For example, for that large fan with a very fast rotation speed, it constantly keeps an eye on the speedometer. Once it detects that the rotation speed is too fast and poses a danger, it immediately pulls the circuit breaker to protect the safety of the equipment and personnel.
