Allen Bradley 1770-RD1

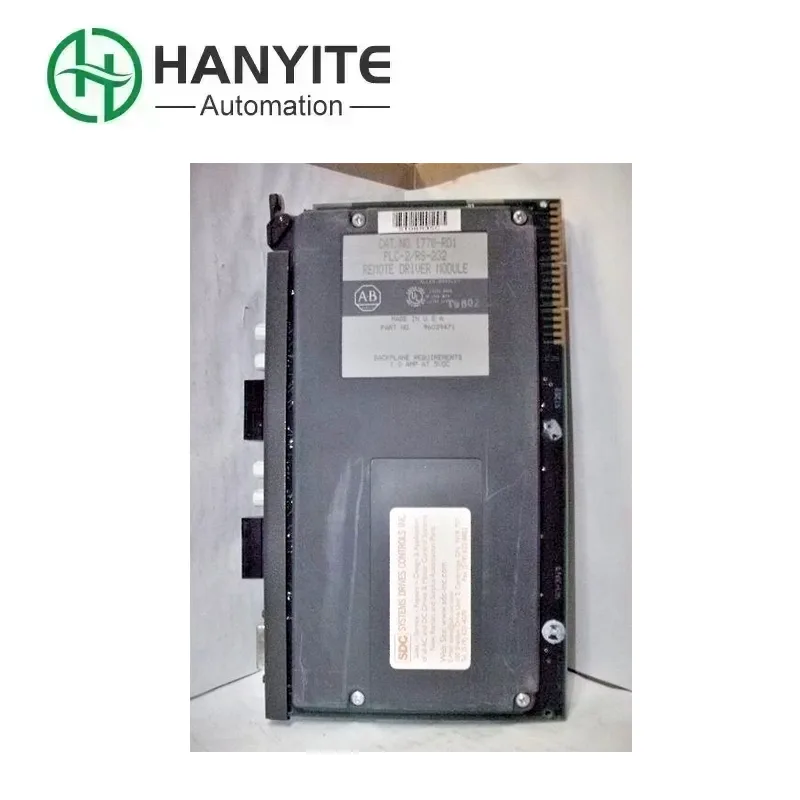

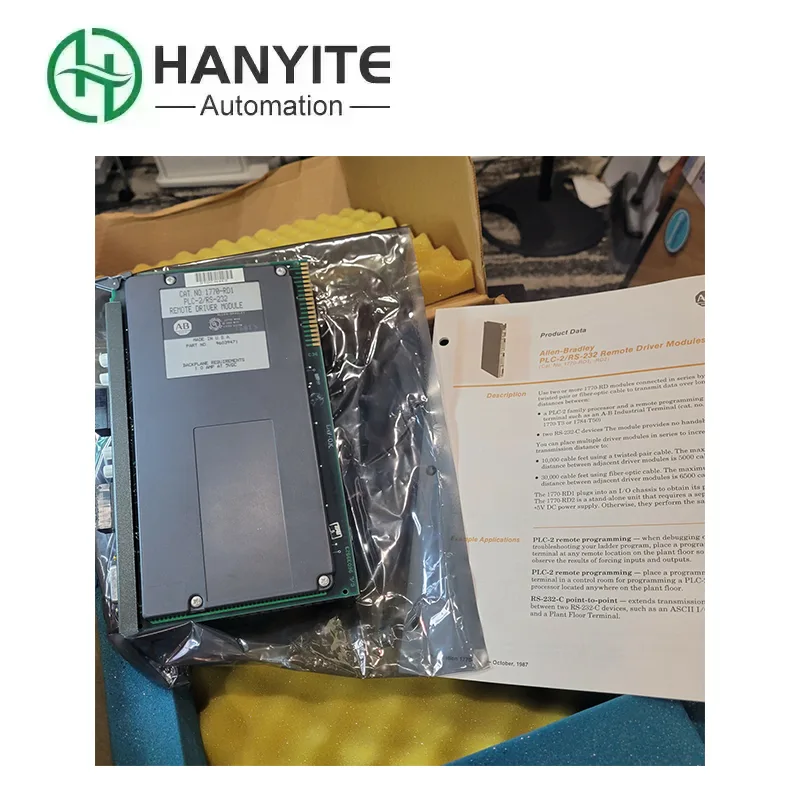

The Allen Bradley 1770-RD1 is an extremely classic remote I/O driver module from Rockwell's early days. You can think of it as a "transmitter" or "translator". It does not directly connect to the sensors but is plugged into the rack next to the PLC-5 processor, specifically responsible for translating the "commands" of the PLC into a special signal, which is then transmitted through a long cable (remote I/O link) to the distant I/O rack. In turn, it also receives the on-site signals sent back from the distant rack and translates them for the PLC. It is the key bridge connecting the central control room and the field equipment. Therefore, when you need to buy this core communication module to maintain your old system, choosing a reliable supplier is of utmost importance. We assure you that it is original and brand new, ensuring that it can play the role of this "bridge" as stably as a new one, allowing your system to operate reliably for a long time.

Key features

1. The Allen Bradley 1770-RD1 does only one thing - translating. It doesn't get involved in any other tasks.

2. In the system, it usually acts as the "leader", taking the initiative to communicate and asking the distant subordinates (remote racks) questions like: "What's going on over there?"

3. There is a round-headed BNC interface on it, just like the head of an old TV antenna cable, and the dedicated cable is plugged into this to chat with the distant end.

4. There are several small lights on the panel. Whether the communication is normal or not, whether there is any malfunction, can be known by observing the blinking of the lights, which is very clear.

5. There are so many electrical sparks and miscellaneous signals in the factory, but it can still work stably and is not prone to "breaking down".

Efficiency improvement

The Allen Bradley 1770-RD1’s core function, in simple terms, is to serve as the data transfer center and communication coordinator for the entire PLC-5 system. It does not directly connect to any on-site switches or sensors. Instead, it stays by the side of the PLC "brain", specifically responsible for packaging and broadcasting the instructions issued by the "brain", such as "start the motor" or "open the valve", through a coaxial cable. At the same time, it also constantly listens to the on-site signals transmitted from afar, such as "materials in place" or "button pressed", and then relays them in their entirety to the "brain" for processing. Without it, the central control room and the on-site equipment would become two isolated islands unable to communicate with each other. It is precisely this indispensable messenger and translator.

Addressing the pain points

The Allen Bradley 1770-RD1 mainly addresses the three most troublesome issues in large-scale automated systems: distance, wiring, and expansion. Firstly, it uses a reliable communication link to completely solve the problem of PLC and field devices being too far apart, resulting in signal attenuation and interference. Secondly, it ends the nightmare of having to "point-to-point" wire hundreds or thousands of points, making the entire system's wiring simple, economical, and neat. Finally, when a factory needs to add new equipment, there is no longer the need to painstakingly re-pave cables from the central control room. Instead, it can simply expand at the nearby remote rack and configure it through software, making system upgrades extremely flexible and convenient.
