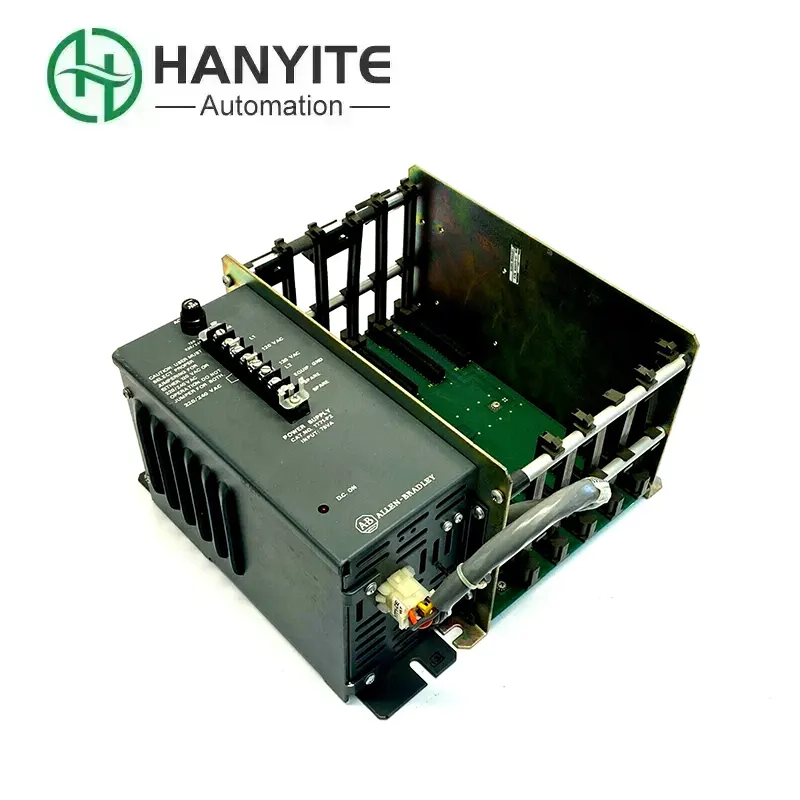

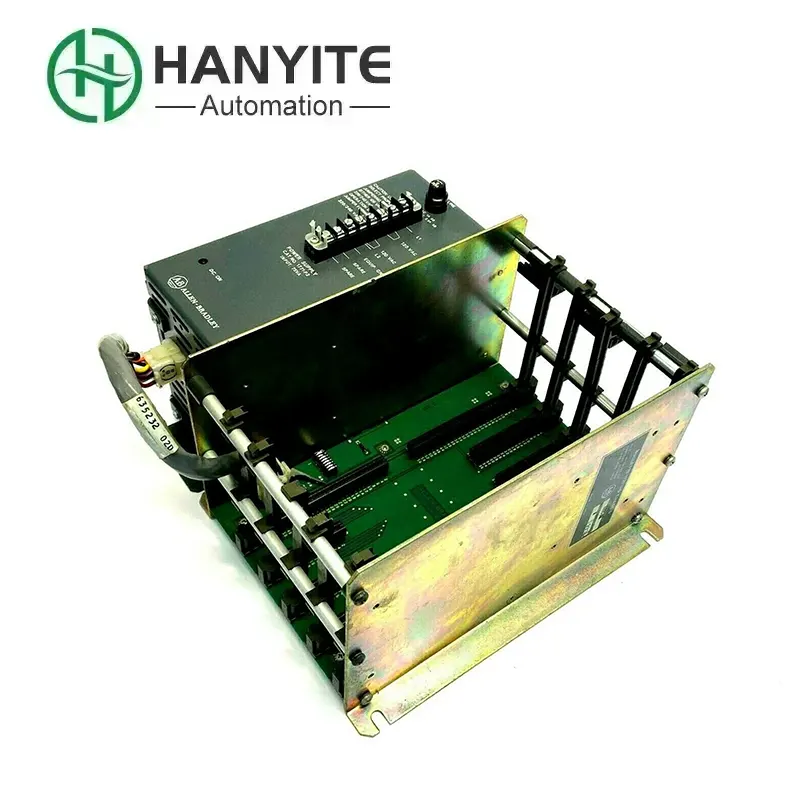

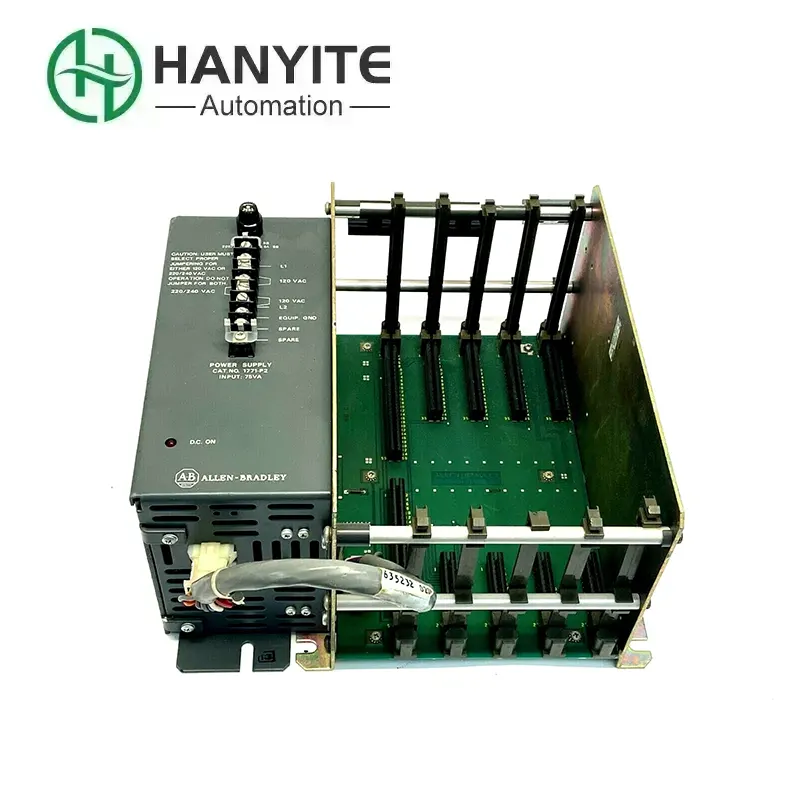

Allen Bradley 1771-AA

This thing is called Allen Bradley 1771-AA. It is the "power supply manager" provided by Rockwell for the PLC-5 series, responsible for converting the strong electricity in the factory into precise direct current that the PLC can use. Therefore, when you need to buy this core spare part, choosing the right supplier is of vital importance. We Hanyite Automation Technology can provide you with original and brand-new products, ensuring the smooth operation of your PLC-5 system.

Product parameters

Product features and functions

When it comes to the features of the Allen Bradley 1771-AA, it can be summed up in one sentence: It's a "powerful all-in-one power manager"! It's not just a simple power converter; it's the "power heart" of the entire PLC-5 system. Its job is straightforward: it transforms the rough AC power from the factory into the highly stable 5V DC "nutrient solution" that the PLC loves, and then distributes it to every module through the "blood vessels" (backplane) at the rear of the rack. Moreover, it comes with a "master switch" and several "signal lights", making it extremely convenient for you to cut off the power or check the status. In short, its role is to ensure that the PLC, the "brain", and all its "subordinates" are well-fed, well-nourished, and full of energy to work for you.

Quality control advantages

The Allen Bradley 1771-AA's quality is outstanding because it's "Rockwell's own child, pure and genuine". Since it's original, it fits perfectly with the PLC-5 rack, a match made in heaven. You don't have to worry about compatibility issues or conflicts when using power supplies from other brands. Moreover, it's made with industrial-grade "top-notch materials", extremely durable. Even if the factory voltage fluctuates or wavers, it remains unfazed, far more reliable than ordinary ones. Most importantly, the Allen Bradley 1771-AA has a "self-sacrificing" quality. If any module shorts out later, it will be the first to "sacrifice" itself by cutting off power to prevent the more expensive CPU from getting damaged. With it around, you'll feel much more at ease.

FAQ

Q1. Can this power module be replaced with a switch power supply from another brand? For example, a cheap 5V 10A switch power supply?

A: Strongly not recommended! There are three reasons: First, you can't install that power supply perfectly into the rack; second, you can't use the backplane power supply interface it comes with, and the wiring will become a mess; third, and most importantly, non-original power supplies may not meet the requirements for transient response, ripple, and stability, which can easily cause "soft failures" in the PLC, such as random crashes or program runaway. This hidden loss is much more expensive than the power supply itself.

Q2. How do I know how many modules it can handle? Will it be overloaded?

A: This is a good question! You need to do a "power budget". Find the 5V DC current values of all the modules (CPU, I/O, communication, etc.) in the manual and add them all up. If the total is less than 8A, there's no problem. If it's close to or exceeds 8A, you need to consider adding an additional auxiliary power supply or moving some high-power modules to another rack.

Q3. The "OK" light on it keeps flashing. What does this mean?

A: This is telling you in "Morse code": "I'm sick and need a doctor!" The flashing usually indicates that the power module has detected output overload, internal fault, or abnormal output voltage. You should immediately disconnect the load and then power on the power module alone. If the "OK" light is still flashing, it's basically certain that the power module itself is broken and it needs to be replaced.
