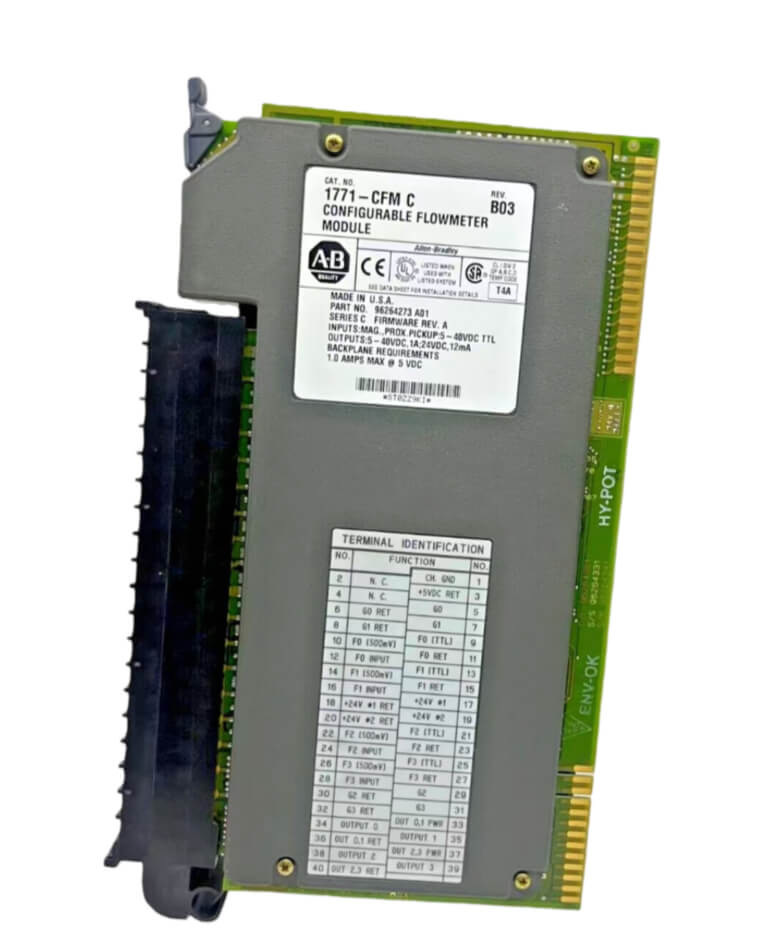

Are you still struggling with the processing of high-frequency pulse signals? The Allen Bradley 1771-CFM is the "pulse expert" of the Rockwell Legacy PLC-5 series. It can accurately capture and calculate the frequency of encoder and flowmeter signals, helping you achieve precise control of speed and flow. As a professional supplier, Hanyite Automation Technology now offers original, brand-new in-stock products. If you have a purchase requirement, we have the goods and the quality is reliable, which can provide strong support for your factory automation system.
The environment in factories is often not very good, but this module has quite strong adaptability. It is designed according to industrial standards and can work stably within a wide temperature range. Whether it is as hot as a steamer in summer or as cold as bone-chilling in winter, as long as it is within the specified range, Allen Bradley 1771-CFM can operate normally. Its anti-interference ability is also good. After all, it mainly processes sensitive pulse signals. If the anti-interference is poor, even a slight electromagnetic fluctuation will cause random counting, and then the production line will be in chaos. Therefore, its circuit design has done a lot of shielding treatment. Even if there are large-power equipment starting up nearby, it can still ensure accurate counting. In addition, its structure is sturdy and has good shock resistance. It can withstand the impact of machine vibrations in the workshop and will not have poor contact or damage due to vibrations. It can stand in harsh industrial environments.
This product is also a "peace of mind" item in terms of maintenance. Firstly, Allen Bradley 1771-CFM adopts a modular design and is inserted into the slots of the I/O framework. In case of any malfunction, you don't need to dismantle all the wires of the entire electrical cabinet. Just loosen the fixing screws on the module, remove the faulty module, and then insert a new one. The entire process can be completed in just a few minutes, significantly reducing downtime. Secondly, its diagnostic function is quite good. The LED lights on the front panel can directly indicate errors. For example, a red light indicates a module failure, or a non-illuminated light indicates no power. Maintenance technicians can quickly figure out the problem just by looking at it. They don't have to search around aimlessly like a blind fly. Moreover, as a classic product from Rockwell, its technical documentation is particularly comprehensive. You can find the manual online. When encountering unclear parameter settings or fault codes, looking up the relevant information is very easy to solve the problem. There is no need to wait for the manufacturer's technical support.
Q1. Can this module be used in conjunction with the MicroLogix or ControlLogix systems?
A: It cannot be used directly. The Allen Bradley 1771-CFM is specifically designed for the PLC-5 system and can only function properly when plugged into the 1771 type of old I/O framework. If you are using ControlLogix, you need to find the corresponding 1756 series module; if it is MicroLogix, usually an external high-speed counter or an analog quantity should be used instead.
Q2. What is the maximum counting frequency it can achieve?
A: The exact value depends on the settings in your manual. But this device is a high-frequency counting module, and it can usually handle most of the high-speed applications in industrial settings. For instance, it can count pulses with frequencies of several hundred kHz from encoder outputs. However, to be on the safe side, it's best to confirm whether your sensor's frequency is within its specification range.
Q3. If there are strong electrical cables all around my signal line, will it affect its counting?
A: Definitely it will. This is what is called "electromagnetic interference". Although the module itself has good anti-interference ability, we still need to pay attention to the wiring when doing it. It's best to put the signal line in a metal tube, or use shielded twisted pair cables, and keep it separate from the strong wires. Try to stay as far away from the interference source as possible. Only in this way can the counted numbers be accurate and less likely to fluctuate.
