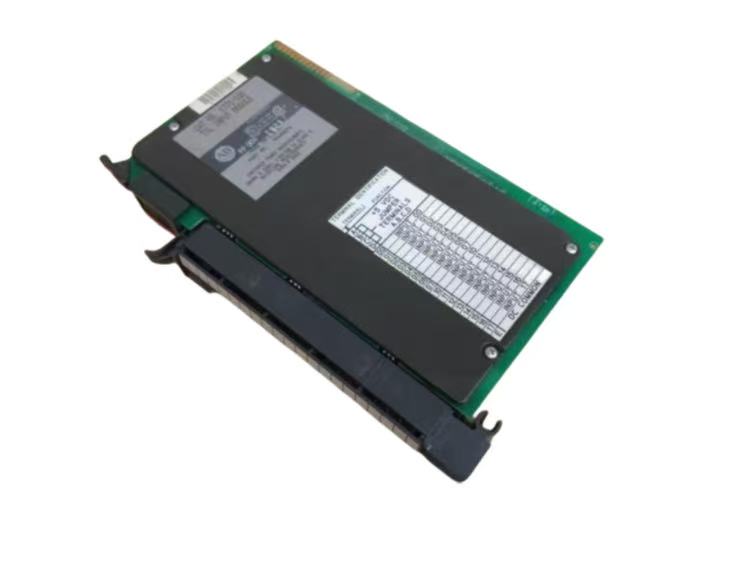

Allen Bradley 1771-IGD is a PLC DC input module with 16 input points, capable of receiving signals from sensors or buttons. Its feature is that all input points are independently electrically isolated and have their own common ports, which is different from ordinary modules with shared common ports. As a professional supplier, Hanyite Automation Technology guarantees to provide original, brand-new and high-quality industrial-grade modules with stable and reliable performance. If you need to buy, please feel free to contact us at any time.
The core benefit of using it lies in three words: flexibility, security, and resistance to interference. Since each input point is independent, you can connect devices with different voltages (such as 24V and 12V) together without any problem. One module can handle multiple functions, making it extremely flexible. This independent design also brings extremely high safety. If one point fails, for example, a short circuit in the wire, it will not affect the other 15 points. At the same time, it acts like adding a "soundproof wall" for each signal, preventing any electrical interference from easily entering the factory. This ensures the system operates more stably.
This thing is mainly designed to solve several troublesome issues. The most annoying one is the inconsistent signal voltage of on-site equipment, which is diverse and requires adding a lot of converters with ordinary modules, making it very troublesome. Another issue is that the signals "go crazy" and randomly jump, and after a long investigation, it is found that the "ground loop" is to blame. However, it completely eliminates this problem from the root. The most convenient thing is that if a single point of an ordinary module is short-circuited, the entire module may be affected. Troubleshooting is like looking for a needle in a haystack. With it, if a problem occurs at any point, it will only affect that one point, and it can be found precisely.
This thing is an "original part" for Rockwell's old PLC-5 system. Its compatibility is beyond doubt. You can simply plug it into the PLC-5 rack, register it in the programming software, set the address, and then use it in the program just like an ordinary input point. The entire integration process is very straightforward, and no special skills are required. It can start working by simply connecting a 24V DC power supply.
1.For instance, on a production line like the one used by the "Eight-Nation Alliance", there are various equipment from different countries and different brands on the same line, and their signal voltages vary greatly. With 1771-IGD, they can be perfectly integrated together, with one module handling everything.
2.Another example is those critical safety devices, such as in chemical production lines or power systems. A shutdown would result in heavy losses. In such places, the reliability of signals is extremely high. Using this isolation module can ensure that if one signal malfunctions, it will not trigger a chain reaction, significantly enhancing safety.
3.There is also a situation where equipment is "distributively scattered". For example, in a sewage treatment plant, sensors are placed very far apart, and as the distance increases, the ground wire potential becomes different, easily causing interference. Using the isolation module can resist this interference and ensure accurate signal transmission.
4.Finally, in test benches or research and development laboratories, today one tests this, tomorrow another one, and the sensors are changed from time to time, and the voltages are also different. The flexibility of 1771-IGD comes in handy here. Without changing the wiring, it can adapt to various testing requirements.
