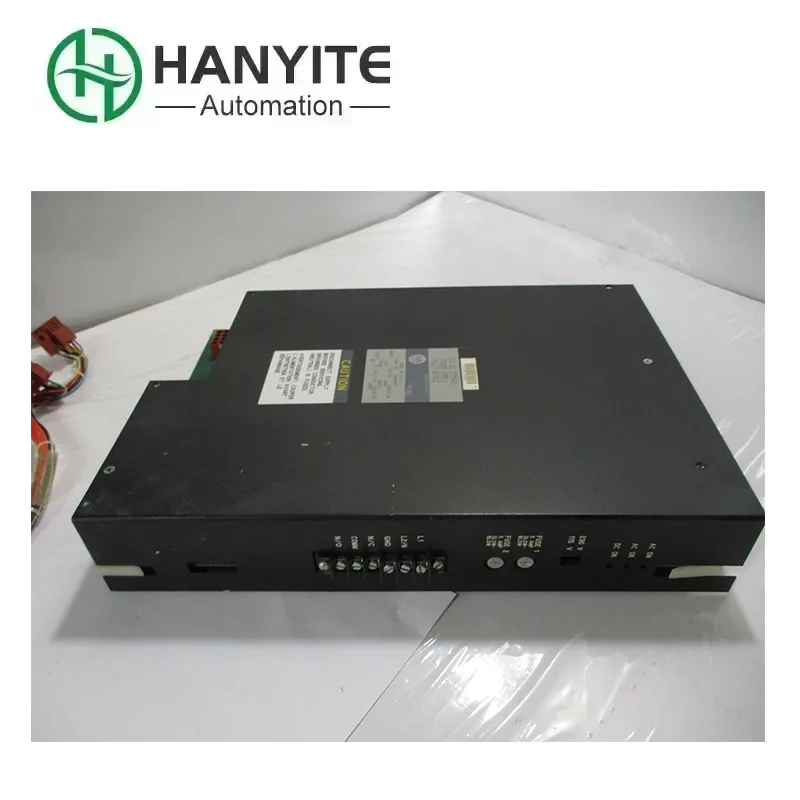

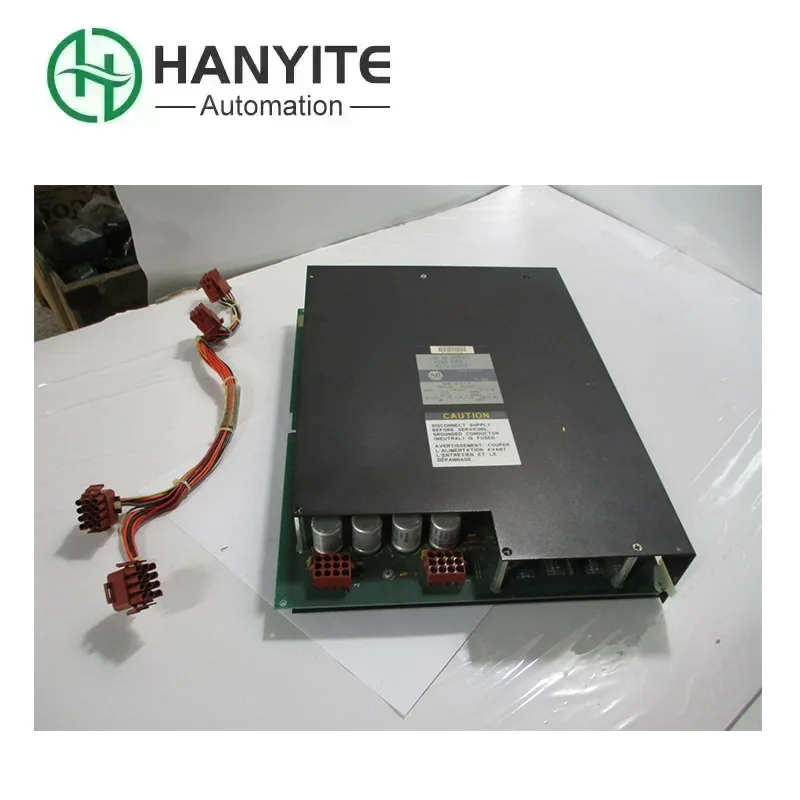

Allen Bradley 1775-P3

The Allen Bradley 1775-P3, you mustn't mistake it for the small power supply mentioned earlier. It's a "heavyweight player", a "power unit" specially designed by Rockwell (Allen Bradley) for large-scale automation systems. If the 1606 models were like "heart pacemakers" that supply power to individual devices, then the 1775-P3 is the "industrial-grade big heart" that supplies power to the entire production line or a single large piece of equipment. Its task is to provide an enormous amount of, and extremely stable, 24V direct current to meet the huge demands of numerous modules, I/O points, and actuators working simultaneously. Therefore, when you plan to buy this critical equipment, choosing a reliable supplier is of utmost importance. We assure you of the original, brand-new 1775-P3, ensuring that your core power system has the most reliable performance and the longest service life from the very beginning.

Key features

1. The Allen Bradley 1775-P3 can output 40A of current, truly a "powerful guy".

2. Although it is powerful, it doesn't consume much electricity. The conversion efficiency exceeds 94%, saving both electricity and heat dissipation.

3. It was originally designed for heavy industry, with excellent shock resistance, vibration resistance, and long lifespan.

4. There are status indicator lights on it, which can tell you if it is in good condition. It can also be connected in parallel. If one unit is insufficient, two units connected in series can double the power.

5. It has built-in overload, short circuit, and over-temperature protection. If it detects danger, it will immediately "stop", and won't endanger others.

Core function

The Allen Bradley 1775-P3’s core function can be summed up in one word: "Supply!" And it is "massive supply". It can provide a maximum current of 40 amperes, which is sufficient to power hundreds of sensors and dozens of cylinders simultaneously. At the same time, it must ensure that this electric current is "pure and free of impurities", with a voltage as stable as a mountain, without any fluctuations at all. Otherwise, those precise controllers will "lose their bearings" and cause major problems.

Core interest point

By using the Allen Bradley 1775-P3, the greatest advantage for you is "stability" and "savings". Stability means that your large-scale production line has a reliable energy guarantee, and it won't suddenly stop due to power supply issues, avoiding huge production losses. Savings not only refer to saving on electricity bills, but also means avoiding the costs associated with equipment maintenance, replacement and downtime caused by unstable power supply. It is the "pillar of stability" for the entire automation system, allowing you to rest easy.

Packaging process diagram

The power supply unit

Put on an anti-static plastic bag (to prevent getting electrocuted during transportation)

Place it in the groove of the thick foam mold (two pieces, perfectly fitted)

Put it together with the manual and warranty card into a thick cardboard box

Seal the box with tape

Attach the product label and transportation warning label on the outside of the box (such as "Handle with care", "Face up")

Finally pack it and prepare to send it to your factory.
