Allen Bradley 1783-CMS20DP

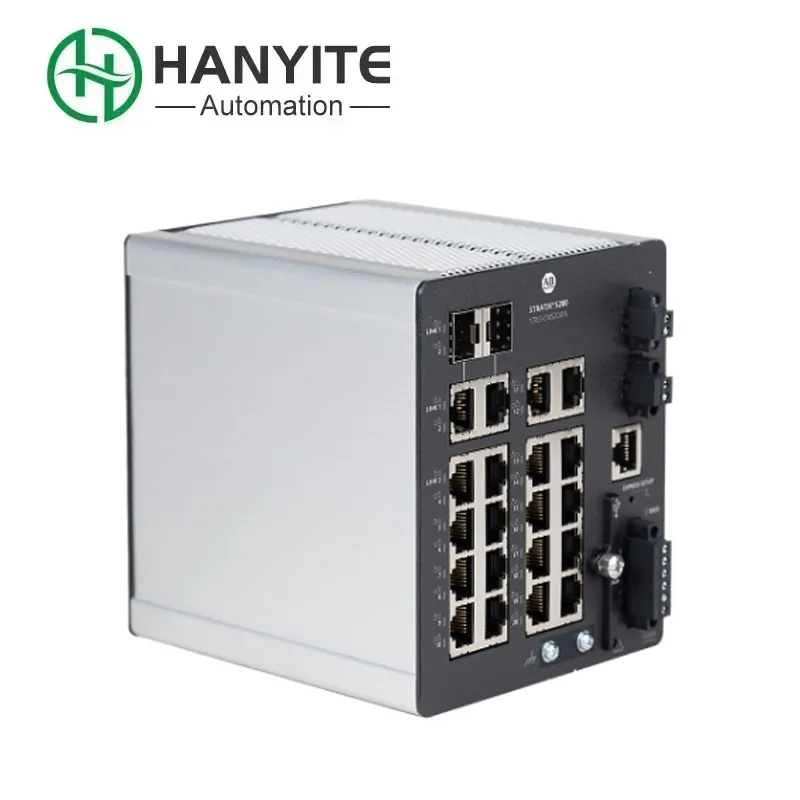

Hannit is committed to providing customers with the fastest and highest quality services in China. As a Stratix series Ethernet I/P managed switch,Allen Bradley 1783-CMS20DP is specifically designed for building highly secure and highly resilient industrial network architectures. The switch has ten Ethernet ports, including two Gigabit Ethernet (GE) combination ports and eight Fast Ethernet (FE) copper cable ports. Hannit has achieved excellent sales performance and favorable customer reviews in both the European and American markets.

Core Technical Parameters and Specifications

Cabinet and Installation Specifications

Allen Bradley 1783-CMS20DP recommends the use of RJ45 connectors that comply with IEC 60603-7 standard, as well as cables of category 5e or higher (2-pair or 4-pair twisted pair) that comply with TIA 568-B.1 standard. The specification of the signal line must be 0.5-0.8 mm² (20-18 AWG). It is recommended to use UL/ CSA-certified AWM 1007 or 1569 twisted pair cables with an insulation class of ≥75°C. The configuration file can be saved via the 1784-SD1 memory card for quick restoration of Settings when the device is replaced.

The module complies with multiple industry standards, including UL, CSA and CCC, and is suitable for industrial environments in North America and China. Hannit offers you high-quality products and first-class services. Application scenarios and advantages: Supports highly elastic topological structures (such as ring network redundancy), enhancing the fault tolerance of production line networks. Supports optical fiber transmission via SFP modules, meeting the requirements of long-distance and anti-interference industrial communication. Supports SD card configuration backup, reduces equipment maintenance downtime, and is suitable for large-scale deployment. NAS storage device

How to maintain

Allen Bradley 1783-CMS20DP maintenance, mainly monitoring and inspection. Regularly check the status lights and quickly determine the health status of ports and networks through the indicator lights. After completing all the configurations, be sure to download and back up the configuration files to your computer to ensure a quick recovery in case of device failure. Log in to the switch regularly to check the system logs and see if there are any abnormal situations such as frequent port connection and disconnection or network storms. Regularly clean the dust off the switch casing and heat dissipation holes to ensure good heat dissipation.
