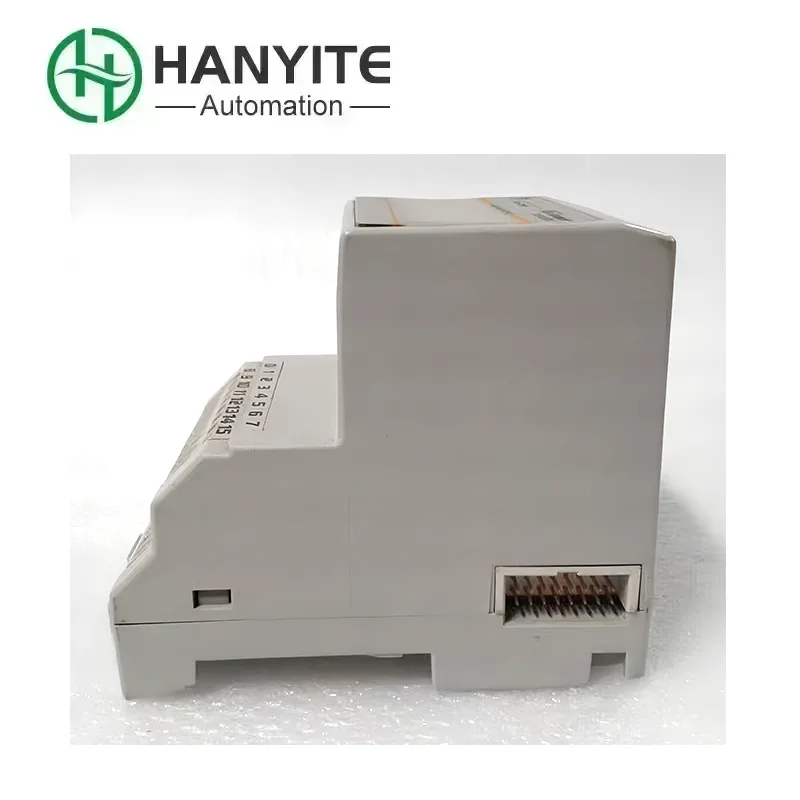

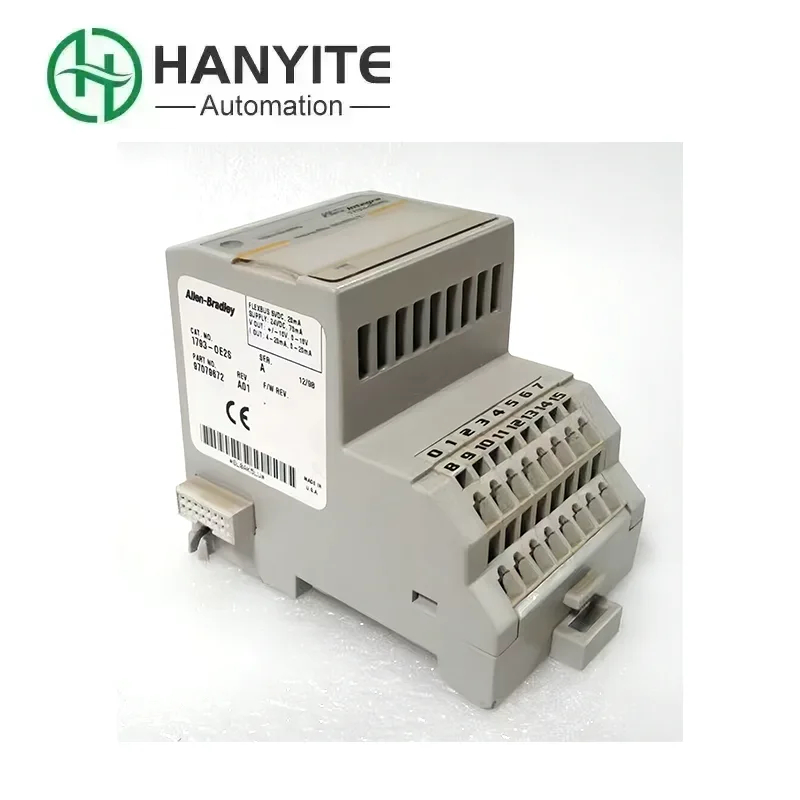

Allen Bradley 1793-OE2S

As a professional supplier, we understand the significance of precise control in factories. The Allen Bradley 1793-OE2S, in simple terms, is a "precise valve control expert". You see, when the PLC brain decides to turn the valve halfway or increase the speed of the motor, it doesn't have hands of its own. At this point, a "hand" is needed to do the job. Therefore, when you decide to buy this crucial "arm", make sure to choose the brand new one. Only then can you ensure that it works with precision. Good news is, we have stock. The PLC brain just needs to say something, and it can convert the digital signal into precise analog signals (such as 4-20mA current), to precisely control the valve opening, the speed of the frequency converter, and other tasks, allowing you to rest assured.

Product structure

1. The Allen Bradley 1793-OE2S is IP67 protected, simply put, it is fully sealed, dustproof and waterproof. You can just throw it onto the machine directly, there's no need to install it in that large and expensive electrical cabinet.

2. On the side, it has the M12 circular plug. Once screwed in, it will lock securely. It is not afraid of vibrations and is much more sturdy than the plugs used at home, making it suitable for factory environments.

3. The circuit board inside is very powerful. It can convert digital signals into very stable and precise analog signals, ensuring that the control does not go wrong.

4. There are several small LED lights on the module, like an emoji. A green light indicates normal operation, a red light means there is a problem. At a glance, you can tell how it is feeling and it makes it much easier to find the problem.

Key features

1. This is Allen Bradley 1793-OE2S’s most outstanding feature! It can be directly installed on the equipment, saving space and money, and the wiring is also simple.

2. It has two independent output channels. One module can control two devices simultaneously, with high cost-effectiveness.

3. It has a resolution of 15 bits. When you set it to 50%, it will never be set to 49% or 51%. The control is extremely precise.

4. It can work through the DeviceNet network cable, eliminating the need for a power cord. One cable can handle everything.

5. If any channel line is broken or short-circuited, it can detect it by itself and immediately inform the PLC, saving you the trouble of searching everywhere for faults.

Compatibility and Integration

1. The Allen Bradley 1793-OE2S was specifically designed for the DeviceNet fieldbus. Any Rockwell PLC that speaks this "dialect" can seamlessly connect with it.

2. In Rockwell's programming software, simply install a small driver (an EDS file), and you can drag it into use just like adding a regular module. There's no need to learn a new software.

3. It can be connected with other members of the ArmorBlock family (such as discrete quantity modules) hand in hand to form a distributed I/O team, which is extremely flexible.

Product packaging process diagram

1. Factory packaging (Rockwell's original factory sealed it tightly with vacuum bags to prevent moisture and static electricity.)

2. When it reaches us (Hanite received the goods, opened the box and inspected it carefully first to ensure there were no issues before delivering it to you.)

3.On-site installation (Once you receive it, simply fix it to the equipment with screws and tighten the M12 plug.)

4.Connect to network and start working (Plug in the network cable, and the PLC will scan it. Then it will "connect" to the network.)

5.Start working (Make a simple setting in the software, and it will start working. When the small light on its face lights up, you'll know it's working properly.)

FAQ

Q1. What does IP67 mean? Can I use it in water?

A: IP67 means completely dust-proof and also resistant to short-term immersion. For example, if the device needs to be rinsed with water, it won't be affected at all. But don't always keep it in water; it's not a submarine.

Q2. Do I need to connect a separate 24V power line for it?

A: No! It "drinks" the electricity from the network cable. One DeviceNet network cable serves both communication and power, saving a power line and making things easier!

Q3. Can I use it directly in the software called Studio 5000?

A: Yes! You just need to download its "identity file" (EDS file) online and import it into the software. It will appear in the module list, just as simple as dragging an ordinary file.
