Allen Bradley 1794-APBDPV1

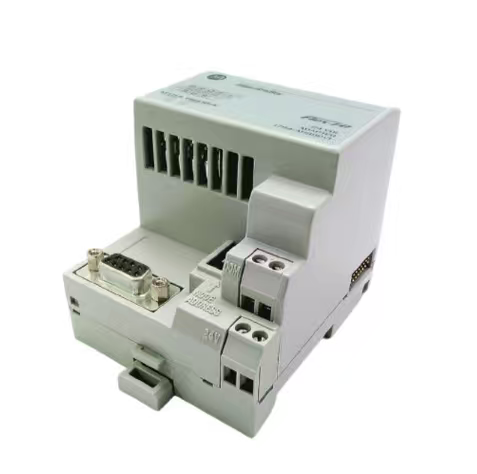

Allen Bradley 1794-APBDPV1 is a key adapter module of the Rockwell Flex I/O series. Although it does not directly connect to the field devices, it can manage up to 8 other I/O modules and communicate with the PLC processor via Ethernet to control on-site switches or motor start/stop. It is an indispensable communication hub in the distributed control system. If you need to buy  this module, Hanyite Automation Technology, as a professional supplier, can provide you with the original fully new model to ensure the quality of the product and the stability of the system operation.

Creative values

The Allen Bradley 1794-APBDPV1’s greatest value lies in "saving money, saving time, and being flexible". In the past, when implementing automation, all the lines had to be pulled back from the site to a central large cabinet. The lines were so numerous that they resembled a spider web, and they were both expensive and messy. With this "command center", you can directly move a group of I/O modules to the side of the machine, connect them on-site, and only need one network cable to connect the "command center" and the PLC. This not only saves a huge amount of cable costs, but also speeds up the installation process. In the future, if you want to add a device, you can simply add another set nearby, without having to move the large cabinet. It is extremely convenient.

Environmental convenience

The Allen Bradley 1794-APBDPV1 was specifically designed for environments like factories that involve "heavy and laborious tasks". Both this device and its subordinate modules can resist dust and moisture, and are not afraid of oil stains. Moreover, it is heat-resistant and frost-resistant, and the machine can work normally even in extreme heat or cold conditions next to it. The most crucial point is that it is not afraid of vibrations. Even when the adjacent motor makes a buzzing sound, it remains stable and does not get "distorted" by electromagnetic interference. Its work is very reliable.

Packaging procedures

1.First, fix the appropriate 1794 series base (such as the DIN rail-mounted base) in the suitable position of the equipment or control box.

2.Insert the Allen Bradley 1794-APBDPV1 adapter module into the leftmost slot of the base, and then insert the other I/O modules into the right slots according to the requirements. They will automatically "click" and complete the physical connection with a "click" sound.

3.Insert the Ethernet/IP network cable into the RJ45 port on the adapter and connect it to the factory network.

4.Connect the cables of the sensors, actuators and other equipment at the site to the terminals of the corresponding I/O modules.

5.In the Studio 5000 software, add a new module to scan or manually configure this adapter and its subordinate I/O modules to complete the address allocation and parameter settings. The entire process is like building blocks, clear, fast and error-free.
