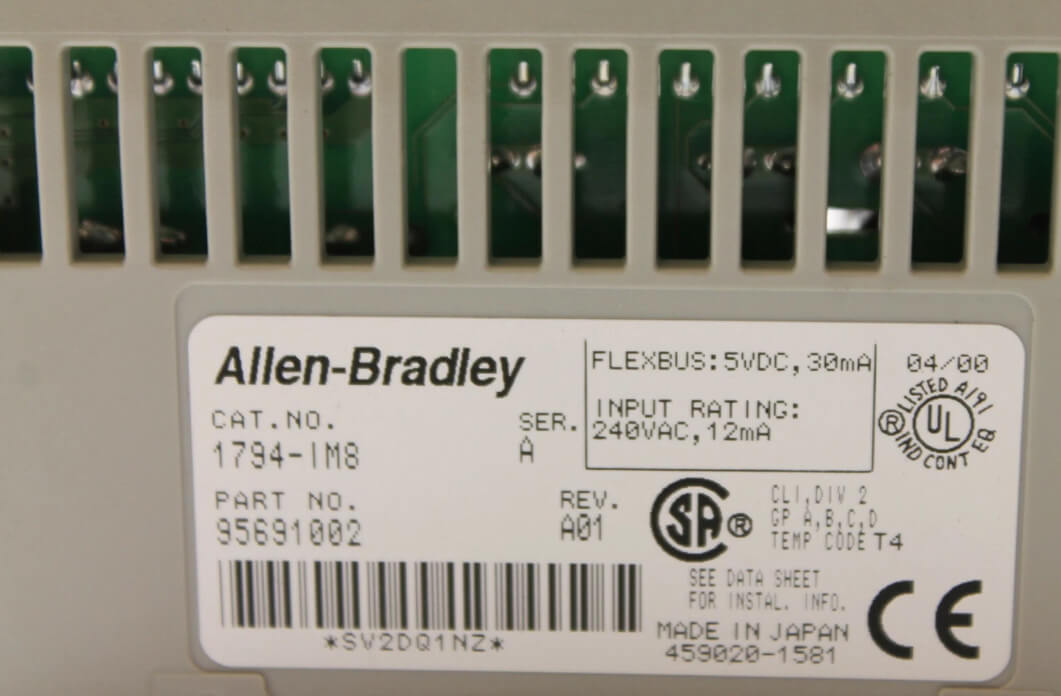

Decentralized line setups often face messy wiring when collecting multi-channel AC signals. The Allen‑Bradley 1794-IM8 solves this with 8 isolated inputs and a FLEX I/O base that connects straight to the power supply. No external power unit is needed. Unlike traditional rack‑mounted modules, its snap‑in design lets you remove the module without disconnecting terminals. This saves cabinet space and makes channel expansion and debugging far easier. Working with Hanyite Automation Technology’s authorized Suppliers, we’ve confirmed the Buy path is clear and parts are in stock, ready to support your production line’s bottom‑level sensor network rollout.
This module has the capability of eight-channel independent isolation input processing, which can accurately convert various characteristic alternating signals from the site into logical levels that the controller can recognize. Its built-in high-interference-resistant filtering circuit effectively shields high-frequency noise interference in the industrial environment, ensuring the accuracy of signal acquisition and the real-time response of the system. The Allen Bradley 1794-IM8 fundamentally improves the reliability of transmitting bottom-level sensed data to the control center.
The module adopts a snap-in base plate installation design, with a wiring structure that separates the wiring from the body, ensuring that the electrical connections and module insertion and removal do not interfere with each other. During on-site debugging, simply adjust the side micro DIP switch according to the input type to complete the threshold setting. The Allen Bradley 1794-IM8 does not require additional configuration of dedicated software. Power-on can quickly establish bus communication, significantly reducing the threshold for engineering implementation and on-site operation.
The front-panel status LEDs clearly show input on/off status during routine checks, so technicians can trace wiring faults quickly without test gear. Thanks to the base’s hot-swappable, no-wire-disconnect design, the Allen‑Bradley 1794-IM8 can be replaced just by unlatching the top. Wiring stays intact, cutting downtime significantly.
You’ll find it on building materials lines, hooked up to conveyor status switches for interlock control.
In packaging areas, it reads photoelectric sensors to count items and trigger machine actions.
Water treatment facilities use it with float switches to automate tank pump cycles.
And in CNC setups, it pairs with limit switches to keep motion axes within safe bounds.
