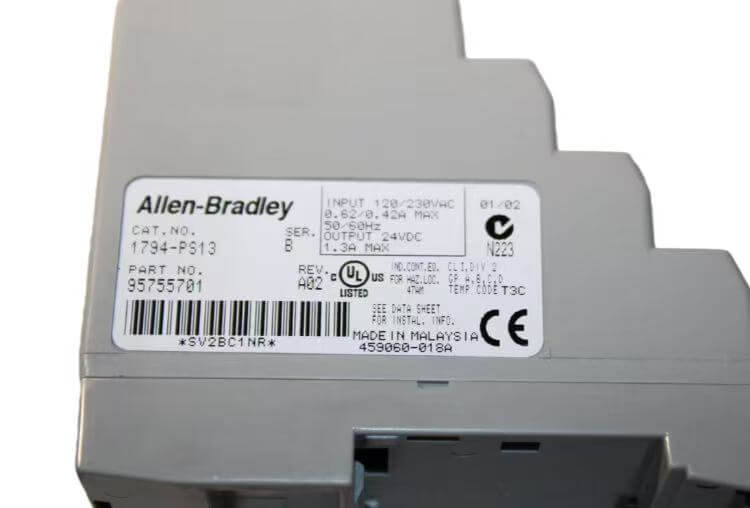

When it comes to automation, an I/O control station simply cannot do without a powerful "heart" that converts the alternating current in the factory into the 24V direct current needed by each module. Usually, it stays quietly in the control cabinet, providing power to the adjacent modules, adapters and sensors. Without it, the PLC would be just a decoration, unable to control the on-site equipment at all. Are you worried about buying the wrong core components? Don't worry, Hanyite Automation Technology is the right choice! Not only will we help you make professional selections, but Allen Bradley 1794-PS13 also has ample stock in stock. It is guaranteed to be the original and brand new, with excellent quality. If you are short of this power supply module, feel free to contact us. The delivery will be faster than you can imagine!
This power module is renowned for its robustness and durability. After all, Allen Bradley 1794-PS13 is an original product from AB. The electronic components used are all of industrial grade, such as capacitors and relays, and the materials used in key parts are abundant. This determines its long lifespan. Its shell design can withstand dust and oil stains in industrial environments, and the internal circuit board has also been specially treated, with good shock resistance, capable of withstanding the vibrations during equipment operation. In addition, it comes with overcurrent and overvoltage protection. Even if the voltage is unstable, it won't easily burn itself out. Therefore, in many harsh old factories, this module has remained in use for over a decade without any damage.
Allen Bradley 1794-PS133 is a standard member of the Flex I/O family, and its compatibility is beyond question. It can be directly plugged into the standard base of the 1794 series, and can be mixed and matched with various digital input/output modules and analog modules without worrying about rejection issues. It fits seamlessly with the adapter modules of Flex I/O. Whether communicating through ControlNet, DeviceNet or EtherNet/IP, it can safely sit in the rack and provide power. Moreover, its installation size is standard, which can be clamped onto the DIN rail or fixed with screws on the back panel of the panel. It is very convenient to integrate into the existing control cabinet without making any major changes to the cabinet structure.
Q1. Does this module support redundant configuration?
A: Allen Bradley 1794-PS13 itself does not support the native redundant plug-in and unplugging like that of high-end PLC racks. If you need power redundancy (to avoid production interruption), usually a dedicated redundant power management module needs to be externally connected, or a redundant circuit can be manually set up through diode isolation.
Q2. Is the installation complex? Does it require additional wiring?
A: The installation is very simple. It is directly clamped onto the 1794 I/O base plate rail. No complex internal jumpers are needed. Just connect the external AC power line to the terminal of the module's front.
Q3. How to read the indicator lights on the module?
A: There are usually status indicator lights on the panel. A green light indicates that the system is working normally and there is a 24V output; if the red light comes on, it usually means overloading, short circuit, or the input power is cut off.
Q4. Does it support hot plugging with power on?
A: Not recommended! Although some ordinary modules in the I/O system support hot plugging, the power module involves strong power input. For safety and to prevent burning the backplate, it is strongly recommended to power off before performing the insertion or removal operation.
Q5. How can you determine if this power supply module is broken?
A: If the input power is normal, but the indicator light on the output end does not light up, or you cannot measure 24V DC with a multimeter; or the overloading red light comes on immediately after power-on, it basically indicates that the module is damaged and needs to be replaced.
