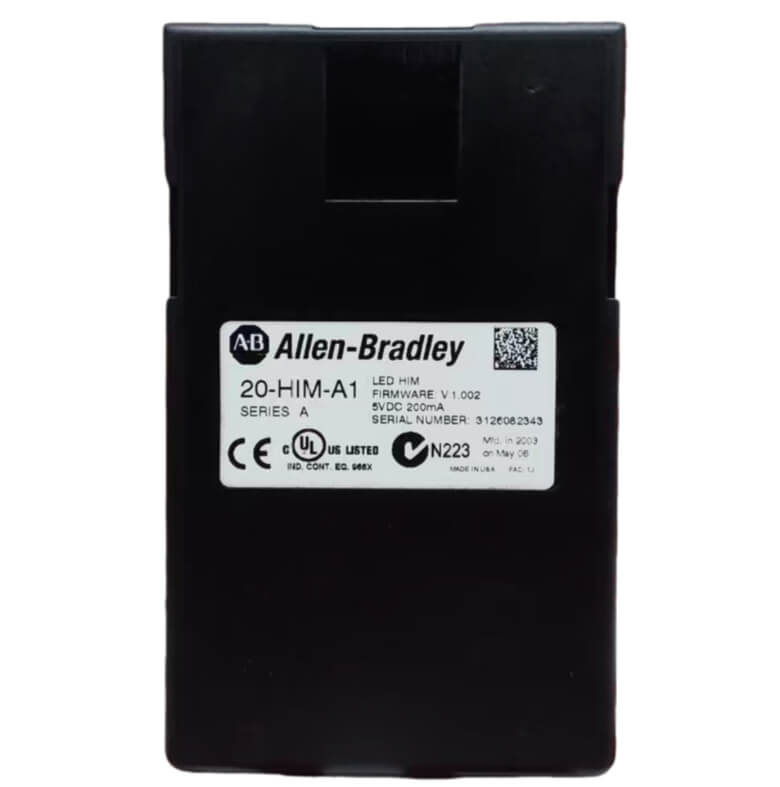

The debugging of the drive cabinet is often restricted by the delay in remote communication. The Allen Bradley 20-HIM-A1 directly connects to the inverter via the DPI interface to achieve on-site parameter setting and start/stop intervention. This panel does not require independent power supply and operates directly using power from the main unit's back panel. Compared to traditional external control boxes, it eliminates the cumbersome task of laying additional power cables. Its physical knobs and shortcut keys combination provide a more direct response compared to the old pure touch operation, effectively avoiding command deviation in the presence of strong electromagnetic interference. After being connected to the Factory by Hanyite Automation Technology, this batch of modules are all brand new and in stock, effectively ensuring the immediate replacement needs for production line maintenance.
In scenarios where the operation panel is installed inside the frequency converter cabinet or on the cabinet door, this panel offers a plug-and-play local control solution. No additional configuration of a communication gateway or laying of control cables is required to enable the start-stop and speed control operations of the driver. Its modular card sleeve design allows for quick insertion and removal without stopping the machine, facilitating sharing among multiple units of the same series or troubleshooting, significantly simplifying the on-site hardware deployment logic.
The Allen Bradley 20-HIM-A1 has the ability to operate independently of the main control system. When network communication is interrupted or the PLC master station fails, operators can directly intervene in the frequency converter status through the panel, effectively avoiding the risk of production line out-of-control due to communication link failure, ensuring the controllability of the underlying drive equipment in emergency situations.
Factory floors are rough—EMI, temperature swings, and humidity all work against your equipment. This terminal uses industrial flame-retardant casing and durable membrane buttons, built to hold up to metal dust and repeated use. Even after a million presses, the buttons still feel solid and accurate.
The Allen Bradley 20-HIM-A1 also has gold-plated internal connectors, which resist oxidation and corrosion really well. They keep the electrical connection stable from 0 to 50°C, even in damp environments. That means fewer connection failures and slower wear from the elements, so the unit lasts longer.
Parameter reading, writing and monitoring: Supports real-time reading and modification of all accessible parameters of the inverter, enabling quick viewing of key operating data such as motor current and bus voltage, facilitating engineers to precisely grasp the dynamic operation of the driver during the debugging stage.
Local start-stop and speed control: Equipped with dedicated forward-reverse, stop and potentiometer knobs, it can bypass terminal control and directly send operation instructions and frequency settings to the inverter, playing a crucial role in single-machine testing or emergency operations of the equipment.
Fault diagnosis and reset: Can capture and display detailed fault codes and historical alarm records of the inverter in real time, helping maintenance personnel quickly locate the root causes of overcurrent, overload and other abnormalities, and support one-click clearing of fault status to restore operation after troubleshooting.
Through the above core functions, Allen Bradley 20-HIM-A1 provides the on-site operation personnel with the most direct control and diagnostic authority over the underlying drive equipment.
In equipment debugging and daily operation scenarios, this operation panel directly shortens the time cycle for fault location and parameter setting. Debugging personnel do not need to carry a computer and connect to the network. They can complete the entry of motor nameplate data and optimization of acceleration and deceleration curves at the inverter panel and independently complete the test operation of the entire driver.
At the equipment control level, the localized status monitoring and fault snapshot functions reduce the frequency of back-and-forth confirmation between the control room and the site, avoiding misjudgment due to information lag. This direct physical interaction method eliminates the cumbersome steps of establishing a complex communication link, effectively reducing the labor cost for on-site debugging and improving the operation efficiency of individual equipment.
