When the old production line needs to read the PLC bottom-level data in a strong light direct exposure environment, the Allen Bradley 2706-E43J32B1 can be precisely adapted with the VFD self-luminous screen and the RS-232/485 dual serial ports. This equipment is powered by 5V DC directly from the base plate, which is less likely to cause gray-scale failure defects in wide-temperature conditions compared to traditional backlit LCDs. Its high-brightness fluorescent tube characteristic ensures the clear identification of the code and alarm logs. After being authorized by Hanyite Automation Technology and connecting with the Suppliers, the current batch of complete machines is brand new. From the hardware source, it ensures the high reliability and maintenance-free operation of the information monitoring nodes of the electrical cabinet.

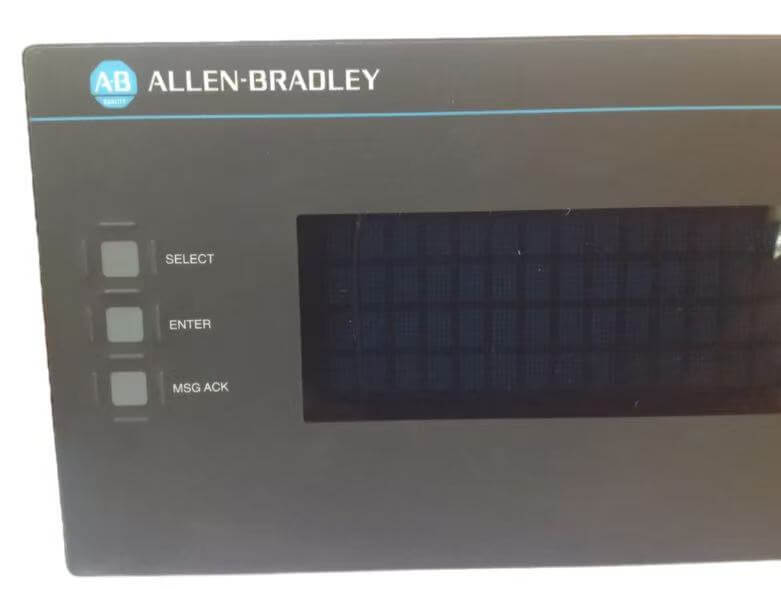

The unit uses a high-strength fluorescent VFD display. It can show multi-line text and highlight status codes clearly.
Allen Bradley 2706-E43J32B1 has both RS-232 and RS-485 serial ports. These ports work with multiple protocols for data reception.
On the logic board, there’s a character generator and display memory chip. They handle host commands and keep the screen updated.
The casing is molded from engineering plastic. The back has standard mounting holes and terminal blocks for wiring.
The self-luminous characteristic of the fluorescent tube ensures excellent visual recognition under high environmental illumination.
The dual serial port redundancy design allows for simultaneous connection of PLC and upper computer for data monitoring.
The Allen Bradley 2706-E43J32B1 is equipped with an international character set built-in, directly eliminating the cost of external font library development.
Display-type peripheral devices in industrial sites are often in frequent power-on and temperature fluctuation working conditions, and screen degradation and component aging are common. The Allen Bradley 2706-E43J32B1 adopts a front-reversing panel snap design, allowing maintenance personnel to extract the logic board without disassembling the entire bracket from the inside of the electrical cabinet. Its wiring terminal block and base are independently separated, and when replacing the display module, the external cables remain in place, effectively reducing the risk of incorrect wiring. The fluorescent tube driver board and communication board are connected by a row of wires, and after fault location, module-level individual replacement is supported, eliminating the high cost of discarding the entire machine and significantly shortening the production line downtime and maintenance cycle.
