You can purchase the reliable Allen Bradley 2711P-K7C4D8 equipment at Hannit Technology. Whether in manufacturing, process control, energy management or equipment maintenance, modules, with their powerful functions and outstanding stability, can significantly enhance enterprise efficiency, reduce operating costs, and help enterprises move towards an intelligent and sustainable future.

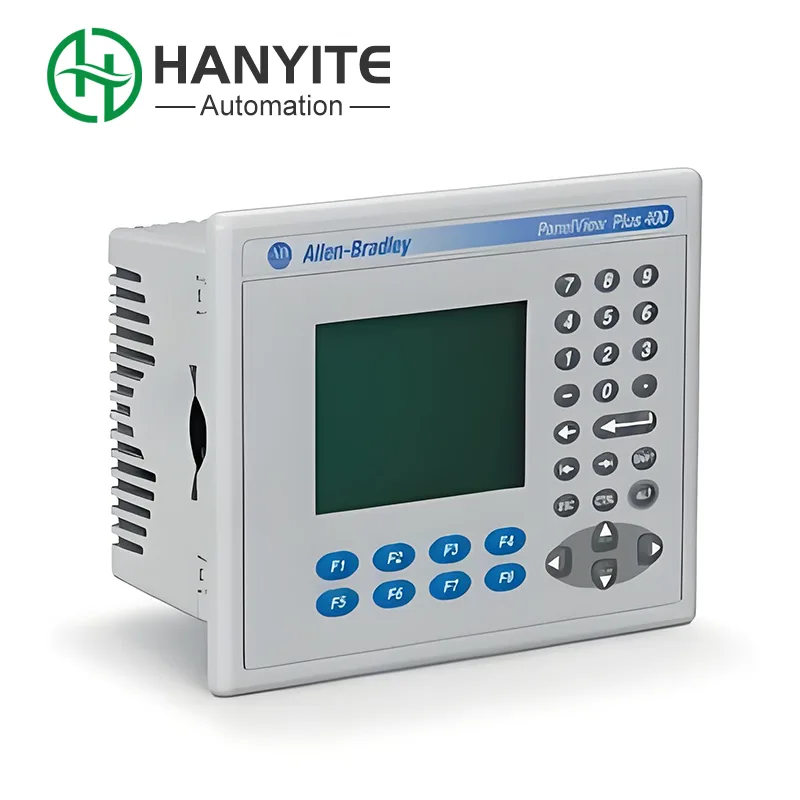

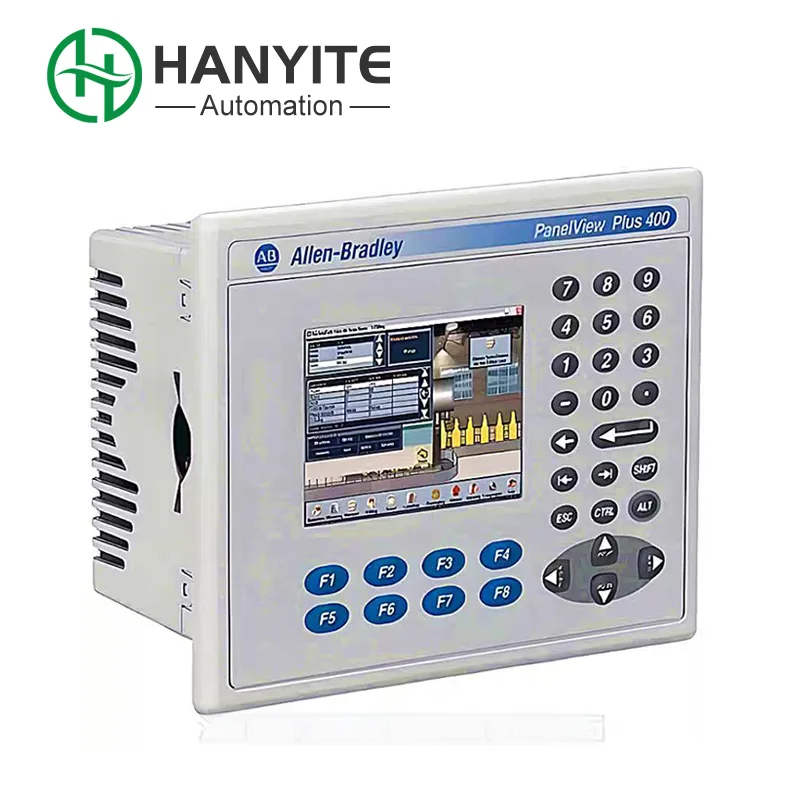

The Allen Bradley 2711P-K7C4D8 is powered by 24V DC. In many packaging machines, robot islands, and injection molding machine control cabinets, there is only a DC24V power supply. There is no need to add a transformer. Just connect it directly to the 24V terminal of the PLC. The front panel still features the classic F1-F16 function keys + number keys + direction keys layout. Wearing gloves or hand oil does not affect the operation. The screen brightness is approximately 15% higher than that of the AC version. Under the ceiling light in the workshop, the text and trend charts are particularly clear.
How to solve the problem of abnormal display or insensitive touch of the device?
If the Allen Bradley 2711P-K7C4D8 has abnormal display or insensitive touch, you can first perform the following troubleshooting. If the problem persists, it is recommended to contact a professional maintenance personnel for in-depth investigation.
Product anti-counterfeiting and authenticity identification measures
Before each machine is dispatched, take a clear photo of the serial number, a video of the FactoryTalk screen when the machine is turned on, and a close-up of the laser mark on the front. The serial number can be found on the Rockwell official website for the production year and batch. There is an original factory anti-tampering lead seal on the side. Any that has been tampered with will not be accepted.
How to purchase other models?
Please contact us.
| Module |
Allen Bradley 2711P-K7C4D8 |
|
Display |
6.5-inch Color TFT LCD |
|
|
Resolution: 640 × 480 pixels (VGA) |
|
|
Color Depth: 18-bit |
|
Input Method |
Resistive Touchscreen |
|
|
Stainless Steel Membrane Keypad |
|
Power Supply |
18-32 VDC (Typical 24 VDC) |
|
|
Power Consumption: 39W |
|
Communication Ports |
10/100M Ethernet port |
|
|
RS232 serial port |
|
|
USB ports x 2 |
|
|
CompactFlash (CF) card slot |
|
Memory |
256 MB RAM |
|
|
512 MB Flash Memory |
|
Operating Conditions |
Temperature: 0 °C to 55 °C (32 °F to 131 °F) |
|
|
Humidity: 10% to 90% (non-condensing) |
|
Protection Rating |
Front Panel: IP65 |
|
|
Rear Panel: IP20 |
|
Net Weight |
1.9 kg (4.2 lbs) |
|
Certifications |
CE, cULus, Class I Division 2 |
