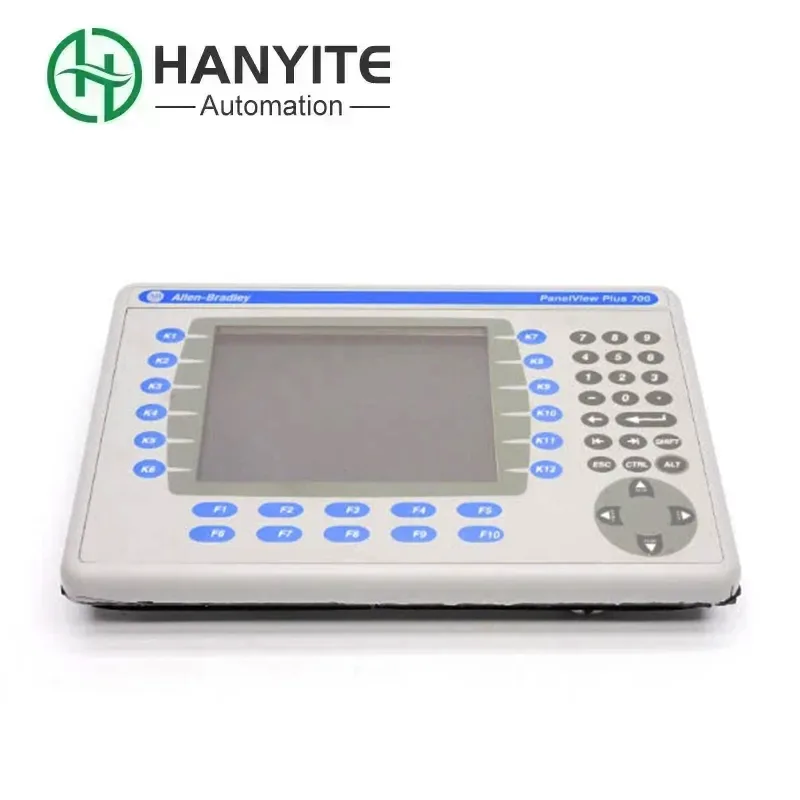

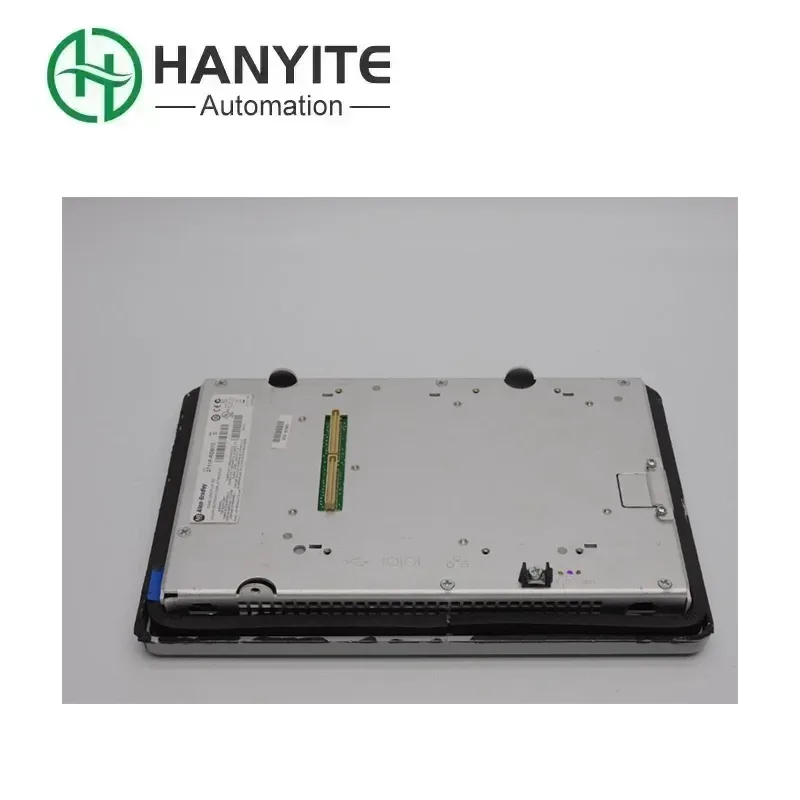

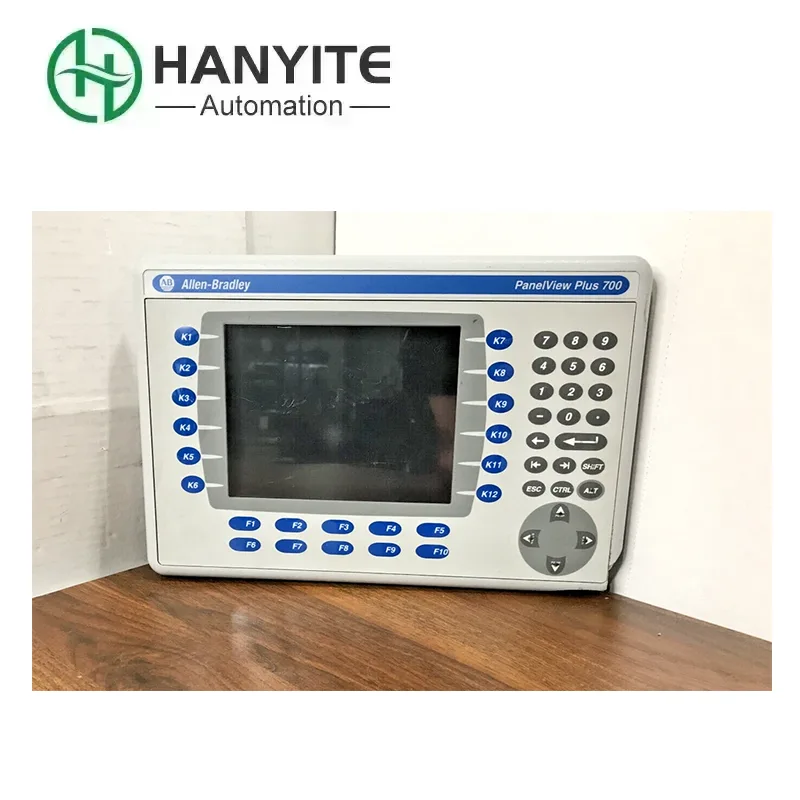

Allen Bradley 2711P-RDB7C

The Allen Bradley 2711P-RDB7C is a really impressive "large-sized tablet" in the Rockwell PanelView Plus 6 family. However, it's not for binge-watching TV shows; it's for use in factories. You can think of it as the "face and window" of the entire automation system. Previously, operators had to look at a bunch of flashing lights and complex switches. Now, with it, you can simply click and swipe on this color screen to clearly see what's going on in the entire workshop. Want to start a machine or adjust the speed? Just press a button on the screen. It's the "translator" between humans and machines, making complex industrial operations as simple as using a smartphone. Therefore, when your factory needs to buy this core equipment, choosing a reliable supplier is of utmost importance. We guarantee the original quality and, fortunately, we have it in stock, allowing your production line to be upgraded quickly without any delay in production.

Product parameters

Core function

1. The Allen Bradley 2711P-RDB7C transforms the dull numbers in the PLC into understandable diagrams. For instance, it uses a dynamic pipeline diagram to show the flow of liquid, a thermometer diagram to display the real-time temperature, and a curve diagram to observe how the pressure changed over the past hour.

2. The buttons and switches on the screen are "alive". When you press the "Start" button on the screen, it is equivalent to giving a command to the PLC, and the external motor will actually start running.

3. If there is a problem with the equipment, such as a high temperature, it will immediately pop up a window to inform you and record when and why the error occurred. The person repairing the machine can easily find out where to look.

4. For example, a production line can produce several types of products. The operator can select "Formula A" or "Formula B" on the screen, and click "Download". Then the PLC will automatically adjust all the parameters, saving the operator from having to set them one by one.

Addressing the pain points

The previous operation console, which relied on a bunch of indicator lights and physical buttons, provided no intuitive information and was prone to errors during operation. Once the equipment stopped, finding the problem was like looking for a needle in a haystack, consuming a lot of time and effort. The Allen Bradley 2711P-RDB7C is designed to solve these problems. It transforms all the complex equipment states into clear and intuitive color graphics, making the operation as simple as using a mobile phone, significantly reducing the risk of errors; moreover, if the equipment malfunctions, it can immediately display clear alarm information, allowing maintenance personnel to quickly understand the problem and minimize the downtime to the shortest possible time, truly achieving a leap from "guessing and searching blindly" to "precise control".

Ease of use

1.For operators, it's so simple that it's almost unintelligible. The interface is similar to the tablet we use. You just click where it says to click. Basically, there's no need for teaching; you can figure it out just by looking at it.

2.For engineers, it's still quite user-friendly. It uses a software called FactoryTalk View Studio to "draw". The software has pre-made buttons, gauges, and piping diagrams. You just drag them around with the mouse and tell it which address in the PLC this button corresponds to. Although it takes some effort to master it completely, you can quickly create a simple interface and get it up and running very quickly.

Application of specific scenarios

The Allen Bradley 2711P-RDB7C is simply ubiquitous in factories. For instance, on the automotive production line, it clearly displays the operation steps and tightening torque at each workstation; in the food and beverage processing plant, it is responsible for monitoring the temperature and liquid level of the mixing tank, and can also manage different flavor recipes; in the water treatment plant, the dynamic map of the entire pipeline network and the equipment status are all displayed by it; on various packaging machinery, setting the speed, recording the output, and giving an alarm when there is a shortage of card paper, all are its tasks. It can be said that wherever there are automated equipment that require precise monitoring and convenient operation, you can basically see its presence.
