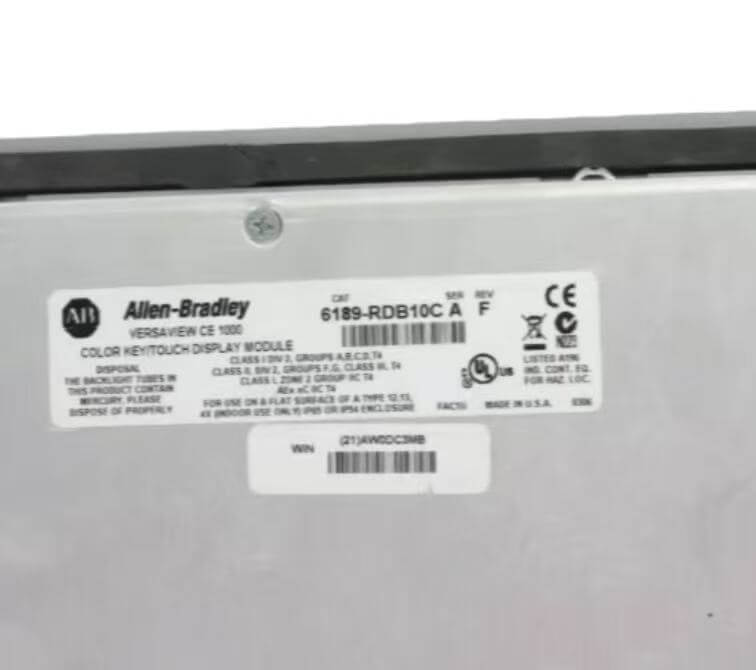

The installation of human-machine interfaces in decentralized workshops is often constrained by space limitations and vibration interference. The Allen Bradley 6189-RDB10 precisely adapts to such conditions with its compact wall-mounted structure. This base unit is powered by 24V DC and is connected through the bottom terminal block for hard wiring. Compared to the old external mounting brackets, its integrated snap-fit design eliminates the need for cumbersome independent adapters, reducing the depth occupation in the cabinet and significantly enhancing the panel's vibration resistance stability. After verification by Hanyite Automation Technology's authorized Suppliers, the current Buy channel is smooth and brand new products are in stock in abundance, providing reliable hardware support for the stable deployment of the production line's visual terminals.

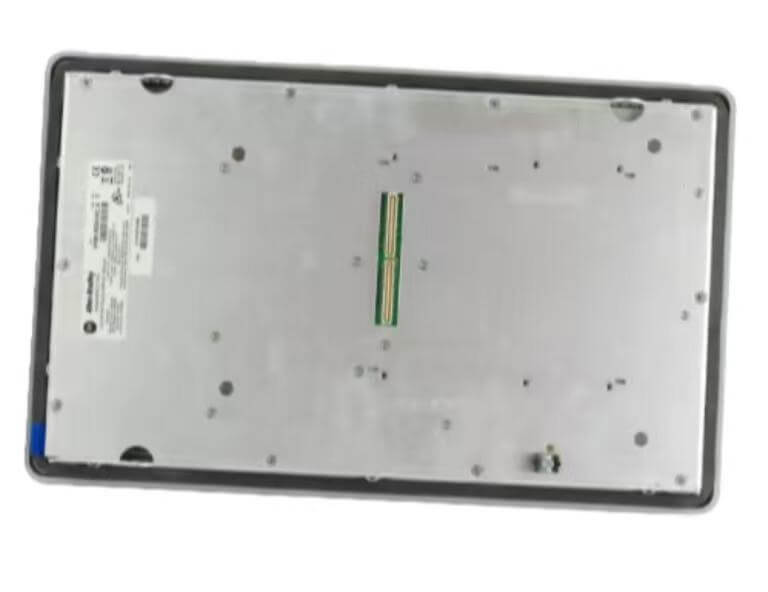

| Outer frame: | A flat rectangular shell made of industrial-grade high-strength engineering plastic, molded by injection. The back is reserved with standard wall-mount and track installation slots, and the edges are pressed with dust-proof sealing rubber strips. |
| Display panel: | Embedded with a 10.4-inch color active matrix TFT LCD screen. The surface is coated with anti-scratch hardened glass, and the surrounding is combined with shielding metal frame to prevent electromagnetic interference. |
| Main control motherboard: | Equipped with a low-power RISC architecture processor, with onboard 256MB RAM and 1GB flash memory chips, and integrated graphics acceleration engine and real-time clock chip. |
| Interface terminals: | The bottom of the body has slots to lead out DB9 serial communication interface and dual RJ45 Ethernet ports. The terminals are arranged around a DC 24V three-pin power input terminal and a functional grounding column. |
| Allen Bradley 6189-RDB10C backplane assembly: | Utilizes multi-layer high-density printed circuit boards to integrate power conversion, signal conditioning, and data isolation circuits. The large copper coating ensures heat dissipation efficiency and system operational stability. |
Real-time rendering process dynamic images and equipment operation parameters
Respond to touch operation and modify internal variable thresholds of the underlying controller
Record historical data of the production process and generate trend curve reports
Monitor system fault status and trigger hierarchical alarm push mechanism
Execute multi-level operation permission locking to prevent unauthorized intervention
Convert multiple protocol data formats to achieve information transfer in heterogeneous networks
The modular base plate structure enables the direct separation of the display components from the wiring base, allowing for the replacement of the host without having to dismantle the on-site cables one by one. The side-mounted memory card slot supports hot-swapping operations, enabling maintenance personnel to quickly export internal logs and project files. The diagnostic interface provides real-time display of the communication handshake status and memory load rate. Combined with the Allen Bradley 6189-RDB10C independent plug-in backup battery compartment design, it makes the firmware power-off protection maintenance and consumable parts replacement more straightforward.
The development platform supports the import of standard project engineering files, and the drag-and-drop component library significantly shortens the configuration cycle of the interface. Built-in multilingual font libraries enable direct typing of Chinese remarks on the screen. The Allen Bradley 6189-RDB10C provides an intuitive interface navigation guide, guiding on-site operators to perform start-stop actions according to the preset process steps in sequential control, effectively avoiding the risk of errors and reducing the threshold for practical training.
