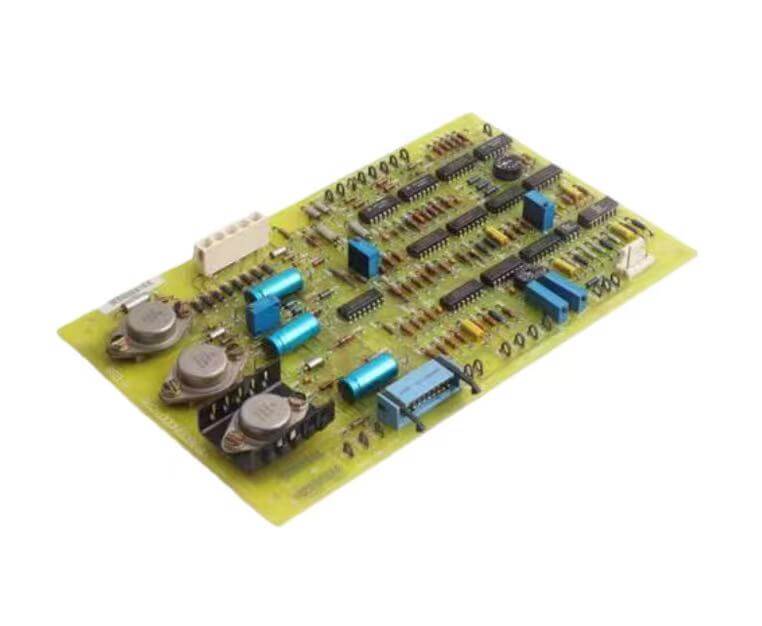

The heavy-duty gas turbine speed control system requires precise capture of sensor pulse signals. The General Electric DS3800NGDD1C1B is precisely adapted through multi-layer wiring and edge gold-plated interfaces. Its wide-voltage power supply design effectively reduces the ripple on the on-site DC bus. Compared to the defect of conventional industrial control boards that are prone to signal distortion under strong electromagnetic interference, the measured isolation withstand voltage index of this board is better, significantly suppressing the control deviation caused by high-frequency crosstalk. After confirmation by Hanyite Automation Technology with the original Suppliers, the current batch is brand new and in stock, supporting direct purchase for production line maintenance.
During the equipment debugging stage, operators can directly modify the logical threshold through the onboard microswitch, and the edge status indicator light provides real-time feedback on the circuit's on-off status. Data reading is intuitive and efficient. The test points of General Electric DS3800NGDD1C1B are distributed in accordance with the common probe mounting habits, eliminating the cumbersome steps of disassembling the machine for inspection. The later fault diagnosis and parameter calibration operations are simple.
The wide temperature design enables stable operation within the range of -30°C to 70°C without failure.
The multi-layer printed circuit board has excellent resistance to humidity and heat, adapting to the high-humidity production line environment.
The shock-resistant pads and firmware coating process ensure the structural integrity of General Electric DS3800NGDD1C1B under strong vibration conditions.
The anti-electromagnetic interference layout meets the deployment requirements of strong magnetic fields around heavy industrial frequency converters.
This board uses a high-Tg value flame-retardant substrate to enhance the heat resistance and insulation indicators from the source. During the production stage, it undergoes dual inspections of automatic optical scanning and flying probe testing to ensure that the micro-level circuits have no short circuits or open circuits. Before leaving the factory, each General Electric DS3800NGDD1C1B must complete high-temperature aging and dynamic live load tests to verify the durability reliability of the components under continuous high load.
Q1. What is the maximum operating voltage supported by the board?
It supports standard industrial-grade DC input voltage.
Q2. What is the recommended daily maintenance cycle?
It is recommended to perform contact cleaning and torque check of fasteners once every six months.
Q3. What is the approximate level of heat generation during operation?
During full-load operation, the surface temperature is around 45°C, which is a normal phenomenon.
Q4. Is it compatible with third-party control systems' baseboards?
The mechanical interface and electrical definition are designed according to the original factory standards. It is not recommended to connect a third-party baseboard.
Q5. Does unplugging the board require disconnecting the main power of the entire system?
It is necessary to cut off the main power of the system and wait for the capacitor to discharge before operating.
