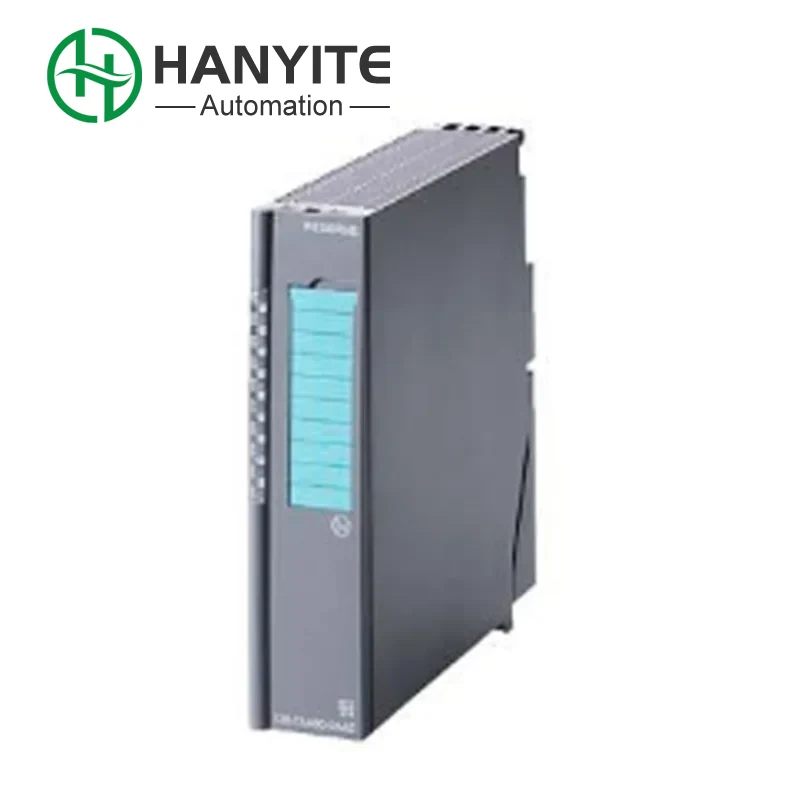

Hante Automation Technology not only offers you the Siemens 6ES7134-7SD00-0AB0, which is not just a conventional I/O module, but also an analog input module specifically designed for high-speed and precise measurement. We not only offer low prices, but also provide professional technical support and comprehensive after-sales service to help your business develop. Welcome to contact us!
It adopts a modular design and is a modular programmable logic controller (PLC) system of the Siemens SIMATIC S7-300 series. Users can choose different modules for combination according to their specific needs, including power modules, CPU modules, signal modules, communication modules and functional modules.
The Siemens 6ES7134-7SD00-0AB0 mainly realizes the input/output functions of digital or analog quantities and is an important component. It can be connected to on-site sensors, actuators, buttons, indicator lights and other devices to exchange data with the PLC.
|
Article Number |
6ES7134-7SD00-0AB0 |
|
Number of output points |
8 points |
|
Output voltage |
24V DC or AC |
|
Output current (per point) |
Maximum 5A |
|
Output current (total) |
Maximum 8A |
|
Contact material |
AgCdO |
|
Mechanical life (no load) |
≥ 10,000,000 open/close operations |
|
Electrical life (rated load) |
≥ 100,000 open/close operations |
|
Response time (Q4.0) |
Maximum 15 ms (from 0V to 24V) |
|
Dimensions (W x H x D) |
40 mm x 125 mm x 120 mm |
|
Weight |
Approx. 0.15 kg |
|
Power consumption |
Approx. 1.6W |
|
Operating temperature |
0°C to 60°C |
|
Storage temperature |
-40°C to 70°C |
|
Relative humidity |
10% to 95% (No condensation) |
|
Altitude |
Maximum 2000 m |
|
Protection level |
IP20 |
1、It can be connected to different types of loads, including DC and AC loads.
2. Optocouplers are used for isolation between channels and between channels and the backplane bus, which enhances the system's anti-interference ability and security.
3. The diagnostic function supports channel-level diagnosis, capable of detecting faults such as output short circuits and open circuits, facilitating troubleshooting and maintenance.
What is the specific conversion time at high speed?
For all four channels, the conversion time for each channel is typically 1 ms. This speed is much faster than that of standard modules and can accurately capture signal changes at the millisecond level.
What does 16-bit resolution mean in practical applications?
Siemens 6ES7134-7SD00-0AB0 divides the input analog quantity range into 2¹⁶ = 65,536 discrete digital steps, which can reflect the minute fluctuations of the measured quantity.
Can it be used to measure temperature?
Direct measurement is not recommended. Temperature itself is a physical quantity of change. The use of high-speed modules is a waste of performance.
