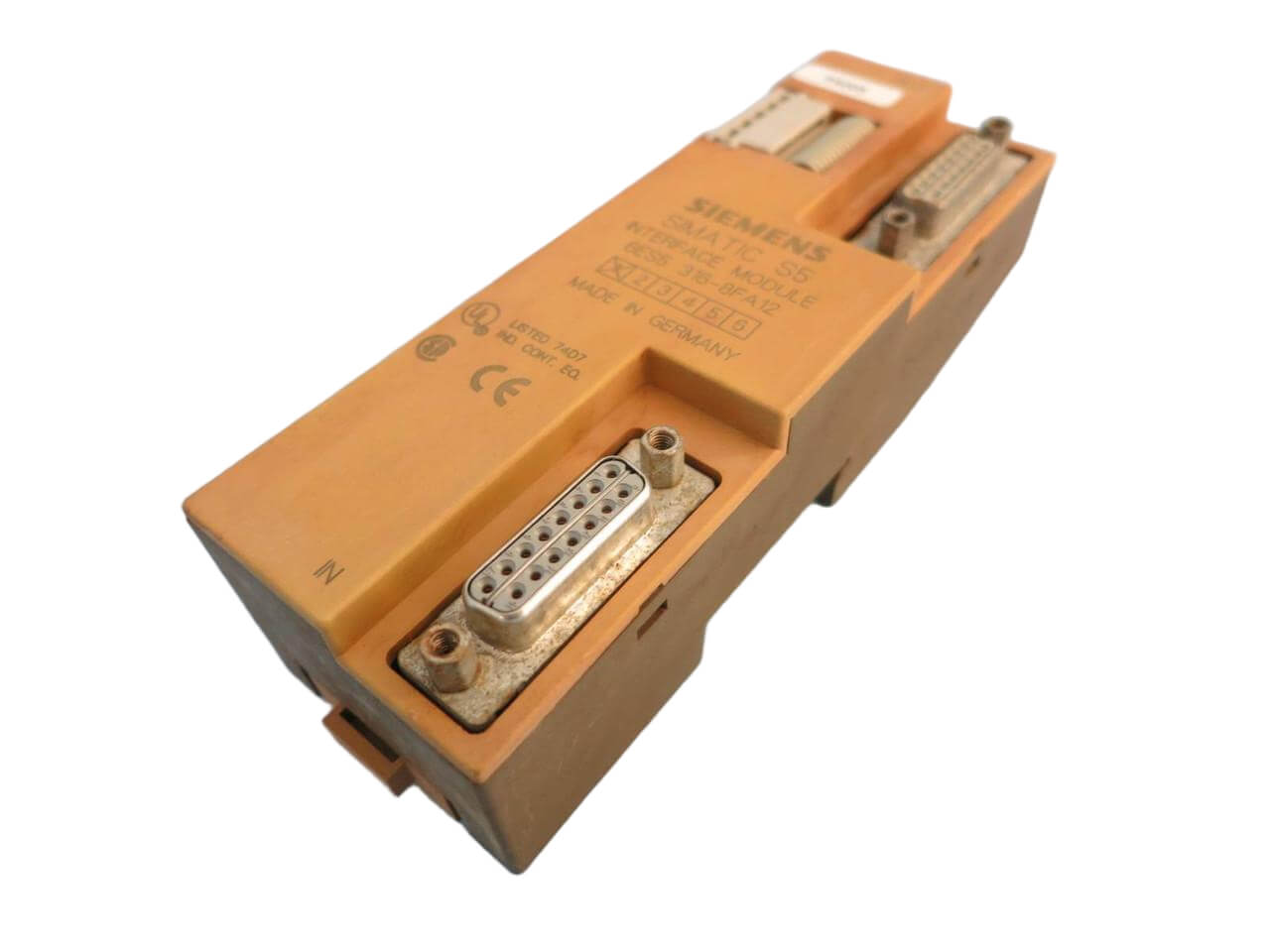

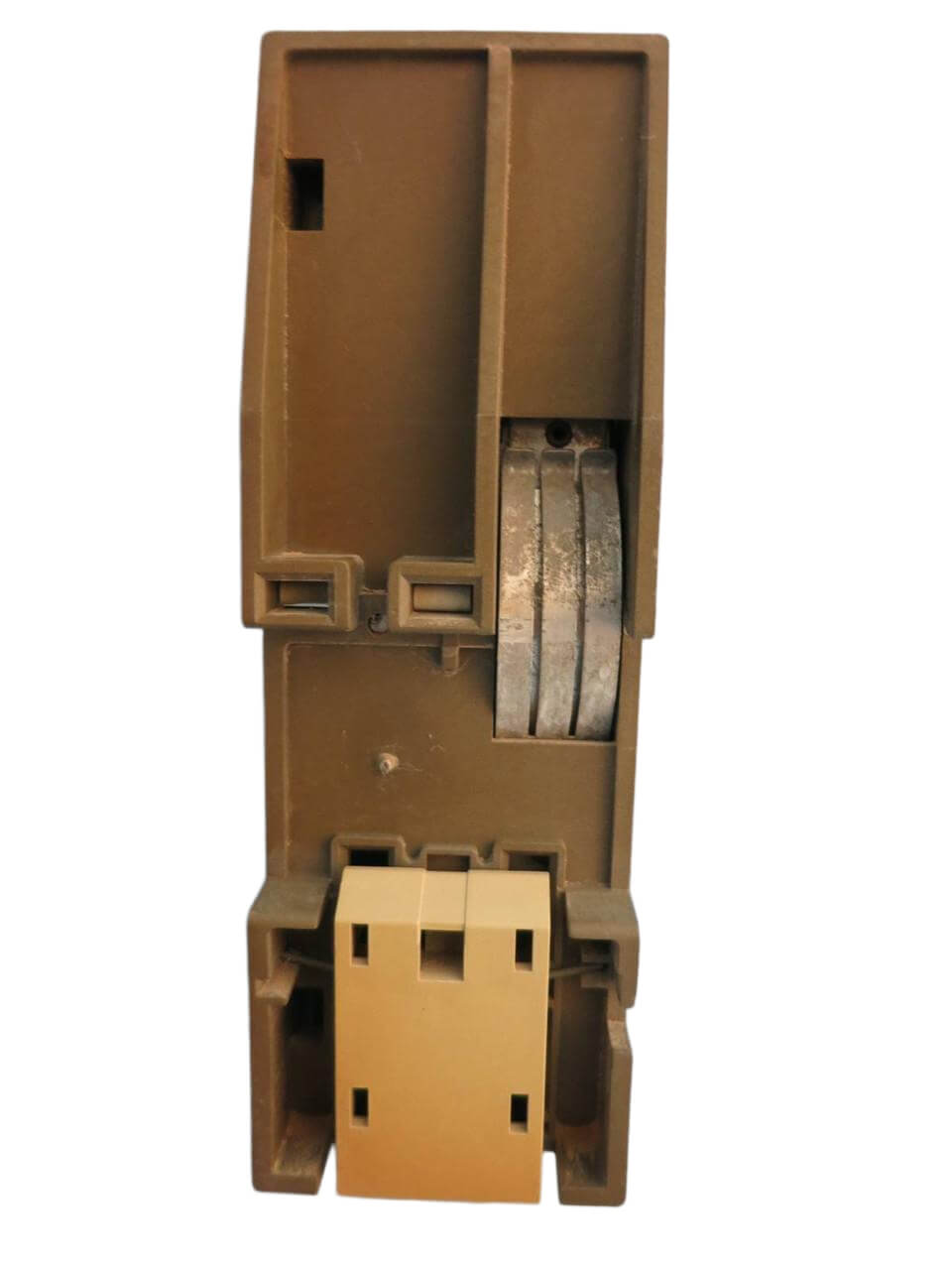

As a dedicated communication component for the SIMATIC S5 system, it enables seamless interconnection with multiple PLC units from the same series and reliably builds data links between the main controller and expansion racks. Constructed from industrial-grade materials, the unit withstands routine temperature and humidity fluctuations within workshops and maintains stable continuous operation. Boasting excellent expandability, the Siemens 6ES5316-8FA12 is widely adopted for legacy production line retrofits. Hanyite Automation Technology serves as a trusted industrial control supplier. All supplied goods are brand new and genuine originals. Featuring standard DIN rail mounting, the unit can be rapidly incorporated into existing control systems to substantially shorten commissioning periods.
| Product Type | Siemens SIMATIC S5 series interface module |
| Compatible System | S5-115U PLC series |
| Interface Specification | IM316 remote I/O interface |
| Transmission Mode | Dual-wire serial data transmission |
| Transmission Distance | Approximately 2000 meters (standard industrial cable) (standard industrial cable) |
| Power Supply Method | Powered by the backplane bus |
| Installation Method | Standard DIN rail-mounted installation |
| Protection Level | IP20, suitable for installation in control cabinet environment |
System main station S5 PLC → Backplane bus power supply and communication initialization → Siemens 6ES5316-8FA12 interface module receives instructions → Two-wire signal transmission to the remote I/O station → Remote I/O module collects on-site signals and sends them back → Data synchronization between the main and remote stations completed → Equipment linked operation and status feedback
The distributed control system widely used in factory automation can connect the main station with decentralized remote input and output sites, solving the problem of limited signal transmission distance for large production line equipment and reducing the complexity of on-site wiring.
It is compatible with various industrial scenarios such as metallurgy, chemical industry, and packaging machinery, and can be deployed centrally in control cabinets or used in conjunction with remote terminal boxes to meet the equipment layout requirements of different areas in the workshop.
It supports multi-site expansion. This module can connect multiple remote I/O units to achieve centralized control of the entire production line, making it convenient to add or remove on-site equipment nodes flexibly according to production needs in the future.
It operates stably and reliably, with strong anti-interference capabilities. It can maintain continuous data transmission even in a workshop environment with electromagnetic signal interference, ensuring the uninterrupted operation of equipment collaboration.
The Siemens 6ES5316-8FA12 can be seamlessly combined with the same series S5 modules without the need for additional adapter accessories, simplifying the system setup process and reducing the technical threshold for on-site debugging.
The Siemens 6ES5316-8FA12 keeps comms between your main PLC and remote sites snappy.
That cuts down on lag, so equipment commands don’t drag, and you spend less time waiting for updates.
Its two-wire design is solid, so remote I/O data collection moves faster.
Your production line cycles run tighter, and things just keep moving.
Plus, it’s quick to install and set up. That means your system goes live sooner, no long delays.
