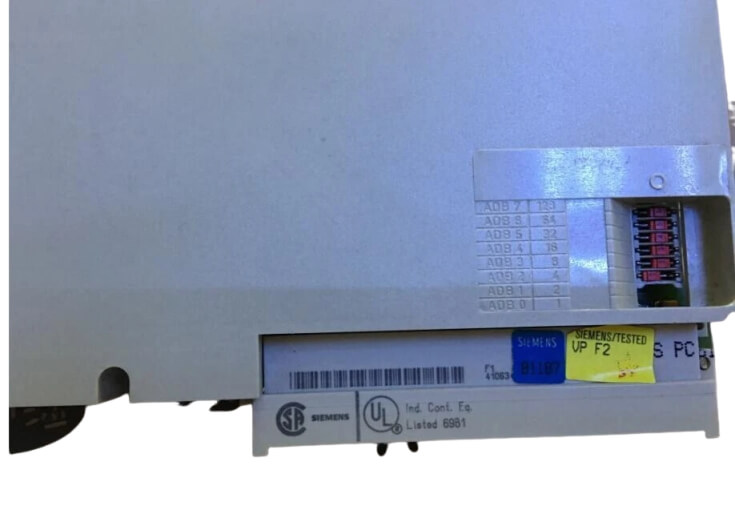

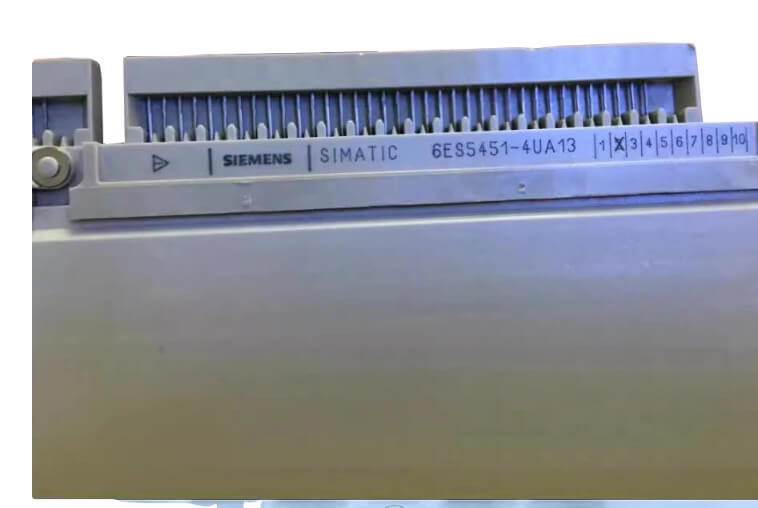

This module has extremely strong compatibility with the products of the same series in the industrial control field. It offers flexible modular combination and can freely expand the number of points according to the project scale without modifying the original control program. The overall power consumption is low, and it will not generate excessive energy consumption even when running 24/7. The operation and maintenance cost is controllable. The Siemens 6ES5451-4UA13 is suitable for most traditional industrial control system renovation scenarios. Hanyite Automation Technology, as a professional supplier, focuses on supplying brand new original modules, and the quality has been strictly verified.
The module type is a digital output module, compatible with the Siemens S5 series PLC system.
The rated working voltage is 24V DC, and the output type is transistor output.
The number of channels per module is 16 points, and the maximum output current per channel is 0.5A.
The working temperature range is 0℃ to 60℃, and the storage temperature range is -25℃ to 70℃.
The insulation voltage level is 500V AC, meeting the basic electrical isolation protection requirements.
The installation method is standard DIN rail installation, compatible with conventional industrial control cabinets.
The protection level is IP20, suitable for indoor environments without strong dust in conventional industrial control settings.
The power consumption typical value is approximately 2W, supporting long-term low-power continuous operation.
PLC main controller → Backplane bus → Module internal circuit → Photoelectric isolation unit → Drive circuit → On-site actuators
Signals start from the main controller and pass step by step along the above path. The whole process finishes the delivery of control commands. Siemens 6ES5451-4UA13 takes charge of signal isolation, driving and output during operation, and keeps command delivery steady all the time.
It can operate stably within the conventional industrial temperature range and will not experience output failure or signal fluctuation when facing temperature changes in the workshop during day and night.
The body has basic dust protection treatment, and floating dust is difficult to penetrate into the module interior, reducing dust accumulation-induced contact failure or signal abnormalities.
It can withstand mild electromagnetic interference from surrounding frequency converters and motors, ensuring stable signal transmission throughout the process and no situation of command mis-triggering or loss.
It is compatible with the installation space of most medium-sized control cabinets, and can maintain reliable terminal contact in vibration environments, not easily causing wiring loosening due to vibration.
Siemens 6ES5451-4UA13 has certain tolerance for mild oil pollution erosion in the workshop, the surface coating is not easily corroded by oil pollution, and the long-term performance is stable.
It can output 16 independent digital control signals, and each channel can be controlled independently. It is suitable for the synchronous or step-by-step control requirements of multiple execution devices.
It is equipped with an optocoupler unit to achieve electrical isolation between the PLC side and the field side, avoiding damage to the main controller caused by strong electrical interference or voltage shock in the field.
It supports seamless communication with Siemens S5 series PLCs. Through the backplane bus, it can quickly receive control instructions, and the output response is fast with low delay.
The module is equipped with overcurrent protection function. When the current of a single channel exceeds the rated range, it will automatically limit the output, reducing the damage to the module caused by load faults.
The Siemens 6ES5451-4UA13 supports modular expansion and can be combined with other modules of the same series to flexibly adapt to different scales of automation control systems.
