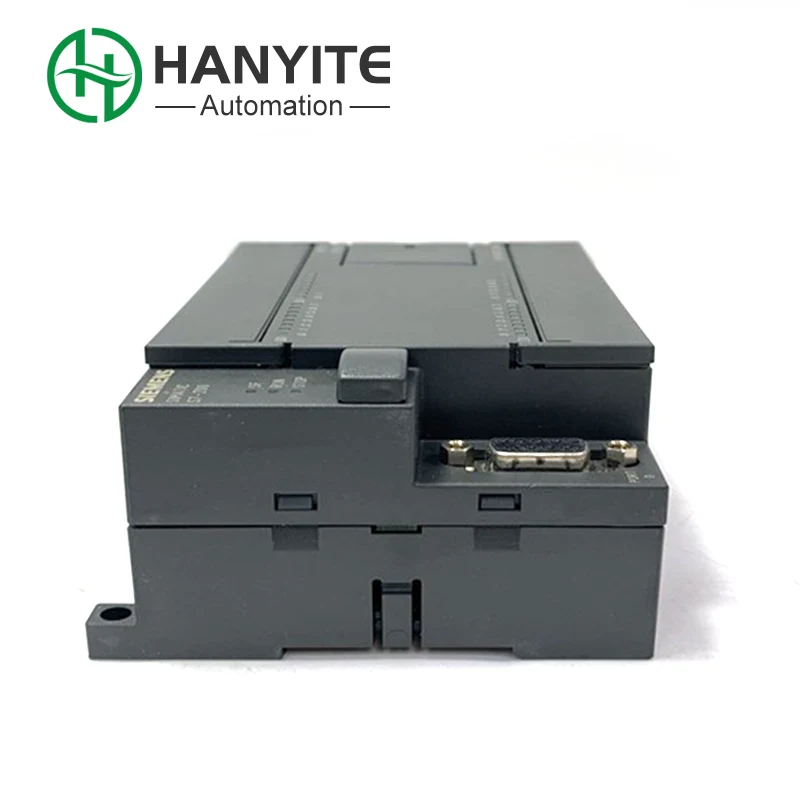

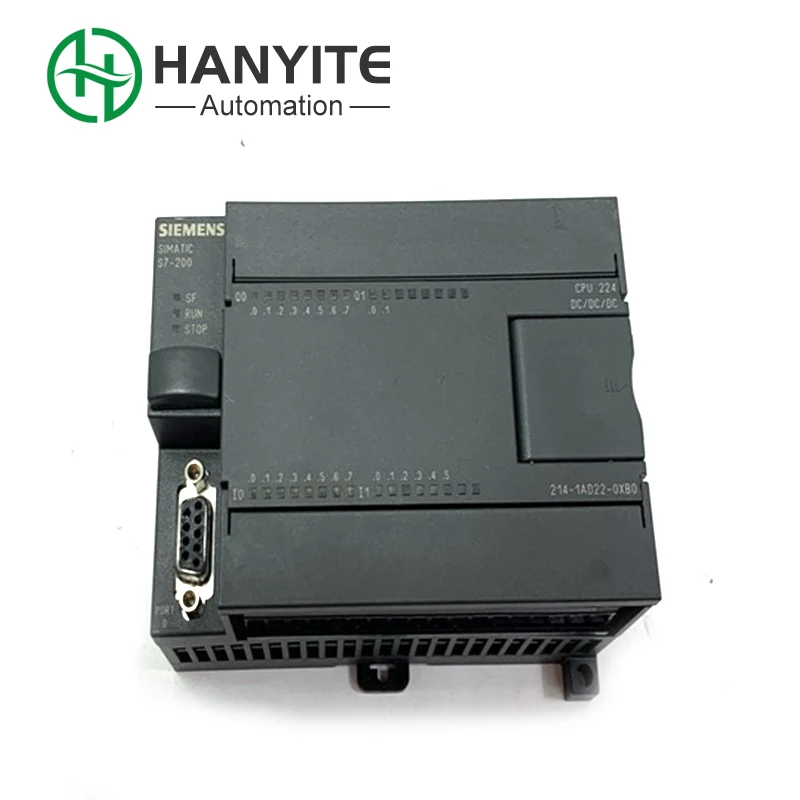

Siemens 6ES7214-1AD22-0XB0

As a Chinese supplier with a global perspective, Hanyite Automation Technology Co., Ltd. provides global customers with original Siemens 6ES7214-1AD22-0XB0 (CPU 1214C DC/DC/DC), which is commonly known as CPU 224. Its identity is very clear: it is a compact PLC. Its main function is to serve as the brain of a small-scale automated system, integrating digital I/O, communication interfaces and program storage space, and capable of independently completing tasks such as logical control, timing, counting and data operation.

Features

Siemens 6ES7214-1AD22-0XB0, as an integrated CPU module, comes with 14 digital inputs (DI) and 10 digital outputs (DO) on its own, allowing for direct control of small devices without the need to purchase additional I/O modules. The module integrates an RS-485 communication port, supporting PPI, MPI and free port communication, facilitating connection to human-machine interfaces or other PLCS. Its program storage space and computing speed are among the backbone of the S7-200 series, capable of handling relatively complex control tasks.

Parameter

How to choose the right signal module (SM) or signal board (SB)

Siemens 6ES7214-1AD22-0XB0 of Siemens S7-1200 series First, you need to clarify the application requirements and determine the types and quantities of digital inputs (DI), digital outputs (DO), analog inputs (AI), and analog outputs (AO). Then, refer to the data sheet to understand the specifications of different SMs and SBs, including input/output types, voltage/current levels, and number of points.
