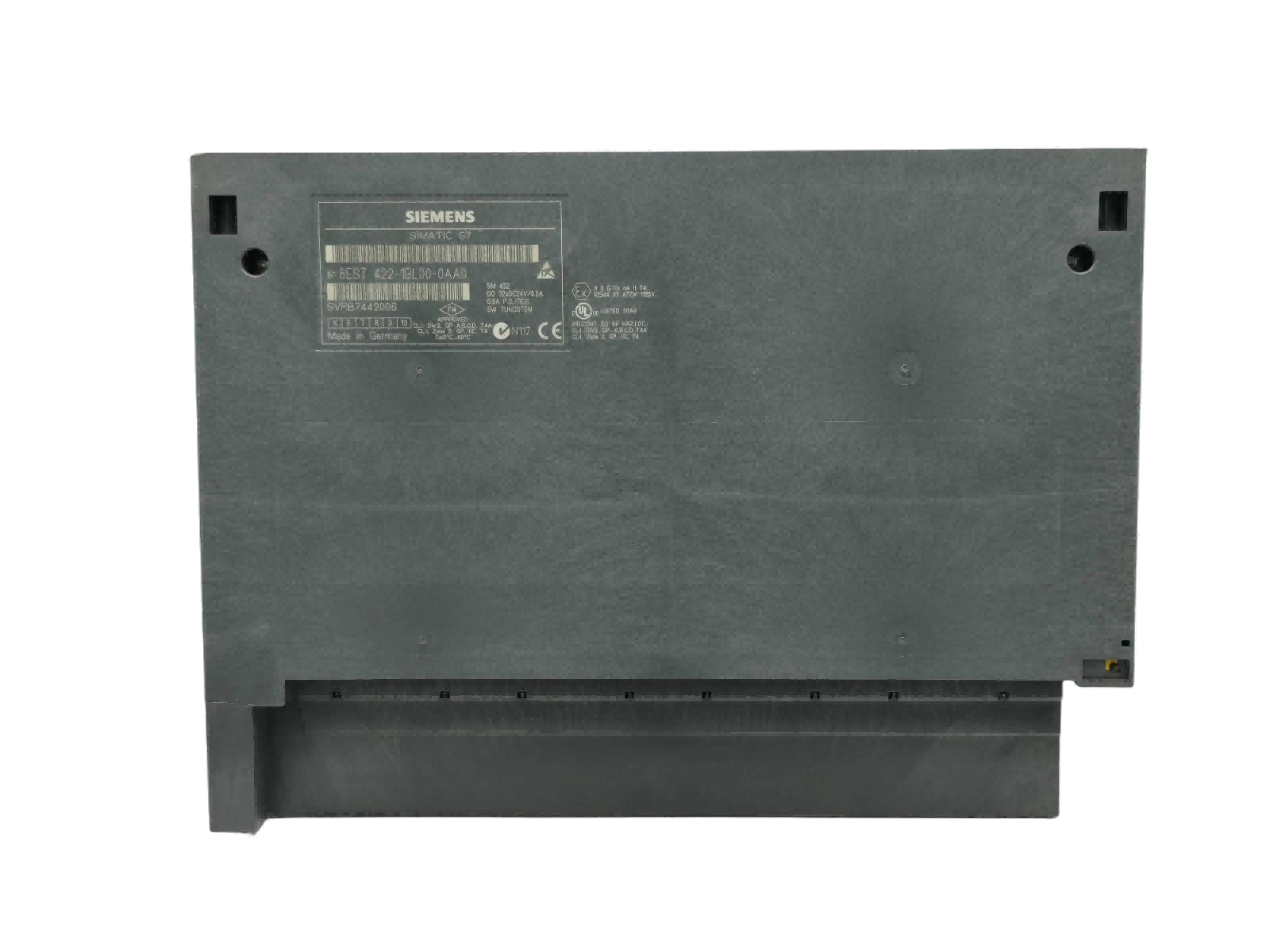

The concurrent control of multi-station assembly lines often requires expanding the rack due to insufficient stations. Installing the Siemens 6ES7422-1BL00-0AA0 can directly eliminate the need for additional expansion modules by using its 32-channel high-density transistor output. This board is equipped with a standard 40-pin front connector on the bottom side. Wiring and signal measurement can all be completed on the front side without removing the side panel. It also supports hot swapping while powered on, and by simply pushing the lever, the faulty component can be replaced instantly without disturbing the adjacent slots. Hanyite Automation Technology currently has brand new board cards in stock. Find the right supplier and directly purchase. This saves the long lead time for delivery and enables the electrical cabinet to resume operation immediately.
The CPU of the S7-400 master station issues operation instructions ➔ The backplane bus transmits data at high speed ➔ Siemens 6ES7422-1BL00-0AA0 receives logic level signals ➔ The internal photoelectric isolation circuit performs anti-interference processing ➔ Drives 32 24-volt DC transistors for output ➔ The on-site actuators and indicator lights respond precisely to the actions
Provides 32 digital DC transistor outputs, with single channel supporting high-frequency pulse switching and conventional switch control.
Built-in strict electrical isolation mechanism, physically cutting off the interference path of the external strong current circuit to the system backplane bus.
Compatible with 24-volt standard industrial voltage, easily driving various intermediate relays and solenoid valves and other resistive loads.
Supports continuous seamless addressing mapping, significantly simplifying the variable allocation and logic call steps of the upper-level control program.
Each output channel has independent overload and short-circuit protection to avoid the entire board card output paralysis caused by a single-point failure.
Long-distance wiring in large production lines is prone to introducing induced electromotive force. Ordinary output boards often misfire due to interference from noise waves. The solid isolation mechanism of this module physically cuts off the interference path from the physical level, ensuring pure signals. During concurrent operations at multiple workstations, the 16-point module often forces the rack to frequently expand, while the Siemens 6ES7422-1BL00-0AA0 with 32 high-density configuration directly reduces the hardware footprint and wiring nodes, reducing the risk of cable disorder inside the cabinet. During the start-up and shutdown of the equipment, the DC coil is prone to generating surge voltage. Its internal protection circuit effectively absorbs the reverse electromotive force impact, avoiding the risk of output breakdown and adhesion leading to malfunction or production halt.
The module adopts a front-insertion wiring mechanism combined with bottom guide rail snap-fit. When troubleshooting the lines, simply loosen the connector on the front to measure, without needing to remove the entire side panel of the machine. The S7-400 rack supports hot-plug operation with power-on. When replacing the Siemens 6ES7422-1BL00-0AA0, simply push the locking lever to the side, vertically pull out the old component, and insert the new board. The entire process does not interfere with the operation of adjacent slots. The green status indicator lights on the panel correspond to each output channel. If any actuator breaks or short-circuits, the fault circuit can be quickly located by scanning the illuminated status. This eliminates the cumbersome step of connecting a computer to check the program.
Built to comply with CE and UL508, this card works in typical industrial settings while meeting safety and electromagnetic compatibility rules. In real use at an automotive welding plant, it has run continuously for years controlling air valves and indicators, holding steady through dust and electrical noise.
We carry stock of this part, so routine orders can ship same-day after testing. When you’re facing an unplanned shutdown, we can help match your old board’s settings and validate the new unit, minimizing downtime.
